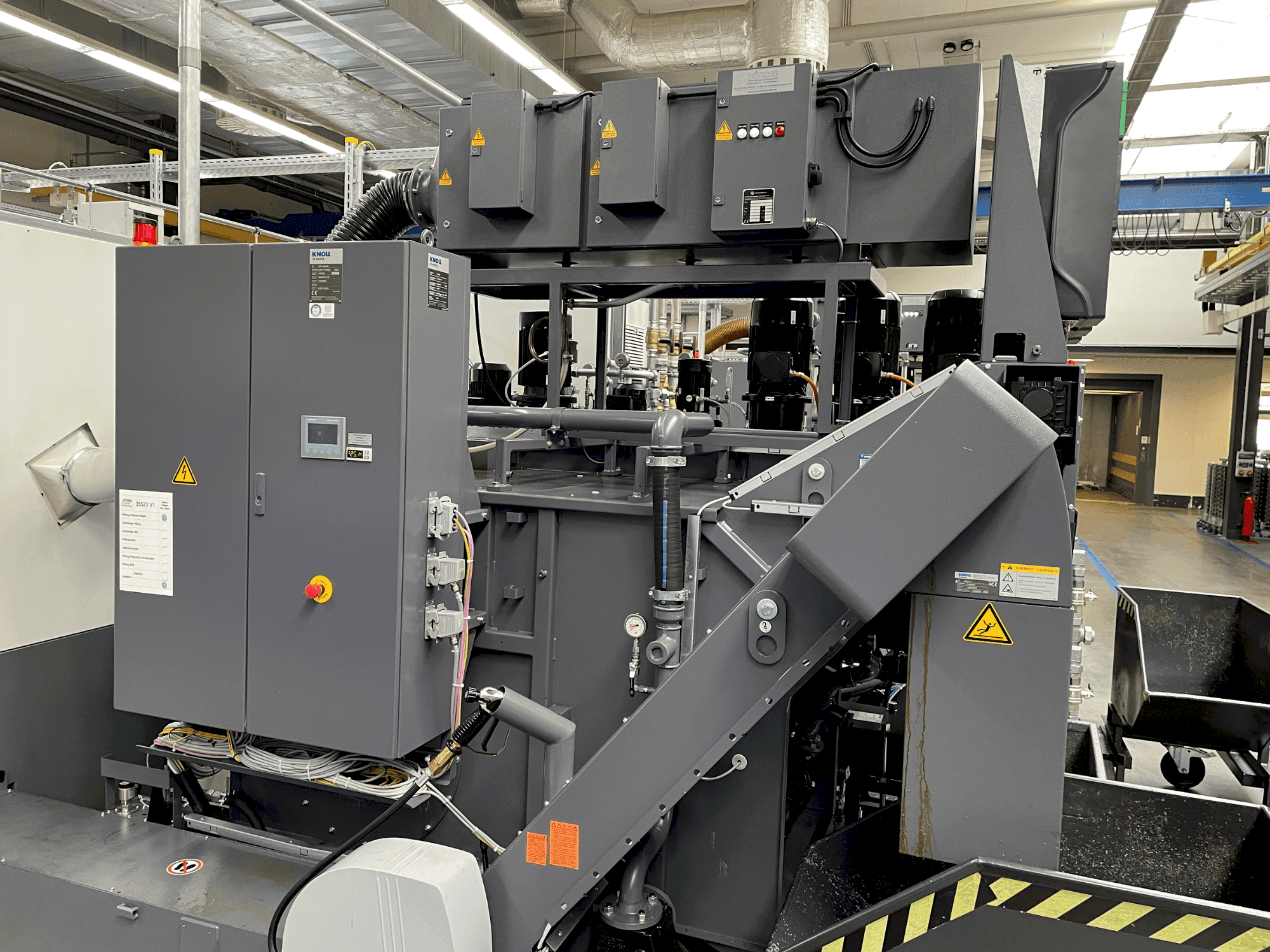

KNOLL - KF 400/3400DE-OTH-KNO-2019-00001

Additional Equipment

• - Scraper belt conveyor type 400 K-1, medium emulsion.
• - System compact filter KF type KF400/3400.
• - Compact filter KF 400 with position drive/inlet KF right, take-up unit KF yes, fleece holder KF at the rear (externally mounted).
• - Clean tank, flat, rectangular shape, dimensions 2500x1500x1100mm, capacity 3400l, material steel, sheet thickness 3mm, tank cover sheet steel.
• - Centrifugal pump, process pump function, flow rate 320l/min, pressure 5 bar, submersible version.
• - Screw pump KTS 32: HD piston bushing (KB), spindle pitch 48, PTC thermistor and frequency-controlled, flow rate 65l/min and 80 bar pressure.
• - Plate heat exchanger 25 plates: dimensions 424x323x670mm, medium to be cooled, cooling capacity 40 kW.
• - Plate heat exchanger 15 plates: plate material 1.4404, cooling capacity 16 kW.
• - Circulation and PHE supply pump: flow rate 50 litres/min, pressure 5.5 bar.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Comprehensive system designed to support various machining processes with integrated cooling and filtration capabilities.
  • - High-pressure and high-flow rate pumps ensure efficient handling of cooling and lubrication during operations.
  • - The system was used for filtering brass shavings, and the level of purity depends on the type of filter fleece used.
• Qualitative Machine Benefits:
  • - Robust construction, advanced filtration systems.

Extra information

• - Machine still under power
