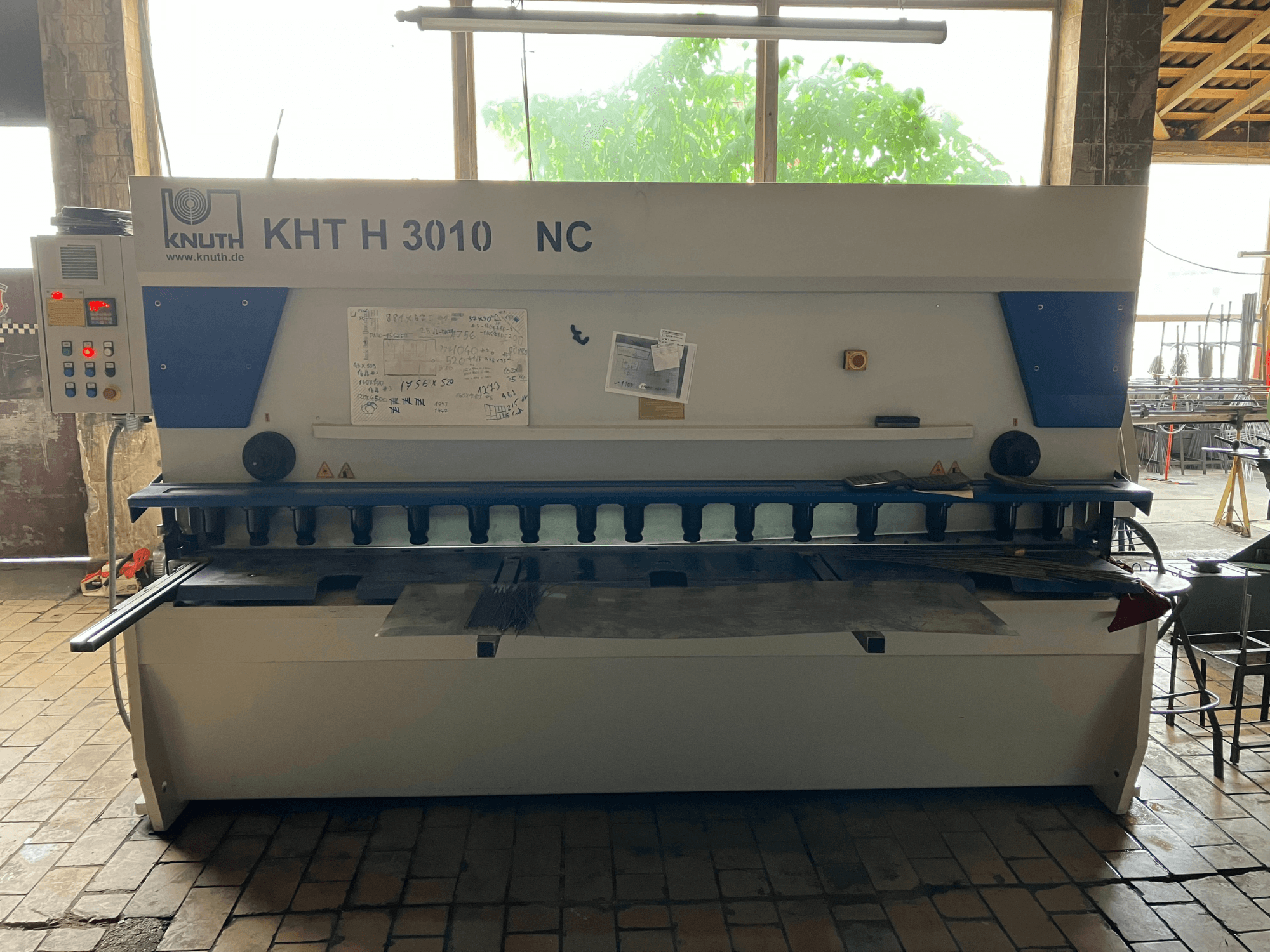

KNUTH - KHT H 3010 NC RO-SHE-KNU-2021-00001

Control: Cybelec Touch 8 (touchscreen)

Features:

• Guided cutter bar with adjustable cutting angle for minimal twisting

• Automatic optimization of cutting gap, cutting angle, and cutting length

• Controlled backgauge with preloaded ball screw

• Controlled kerf (cutting gap) adjustment

• Controlled cutting angle adjustment

• Blades/knife suitable for stainless steel

• Robust, precise backgauge

Working area:

• Working length: 3080 mm (maximum cutting length 3080 mm)

• Throat depth: 150 mm

• Cutting angle: 0.3°–2°

• Strokes per minute: 17 H/min

• Hold-down: 16 positions, 20 t capacity

• Table size: 3340 mm x 520 mm x 875 mm

Backgauge:

• Rear stop: 1000 mm

• X-axis feed speed: 6000 mm/min

Front support arms:

• Quantity: 3

• Length: 900 mm each

Cutting capacities:

• 10 mm at 450 N/mm²

• 6 mm at 700 N/mm²

Drive:

• Main motor: 22 kW

• Hydraulic tank: 350 l
