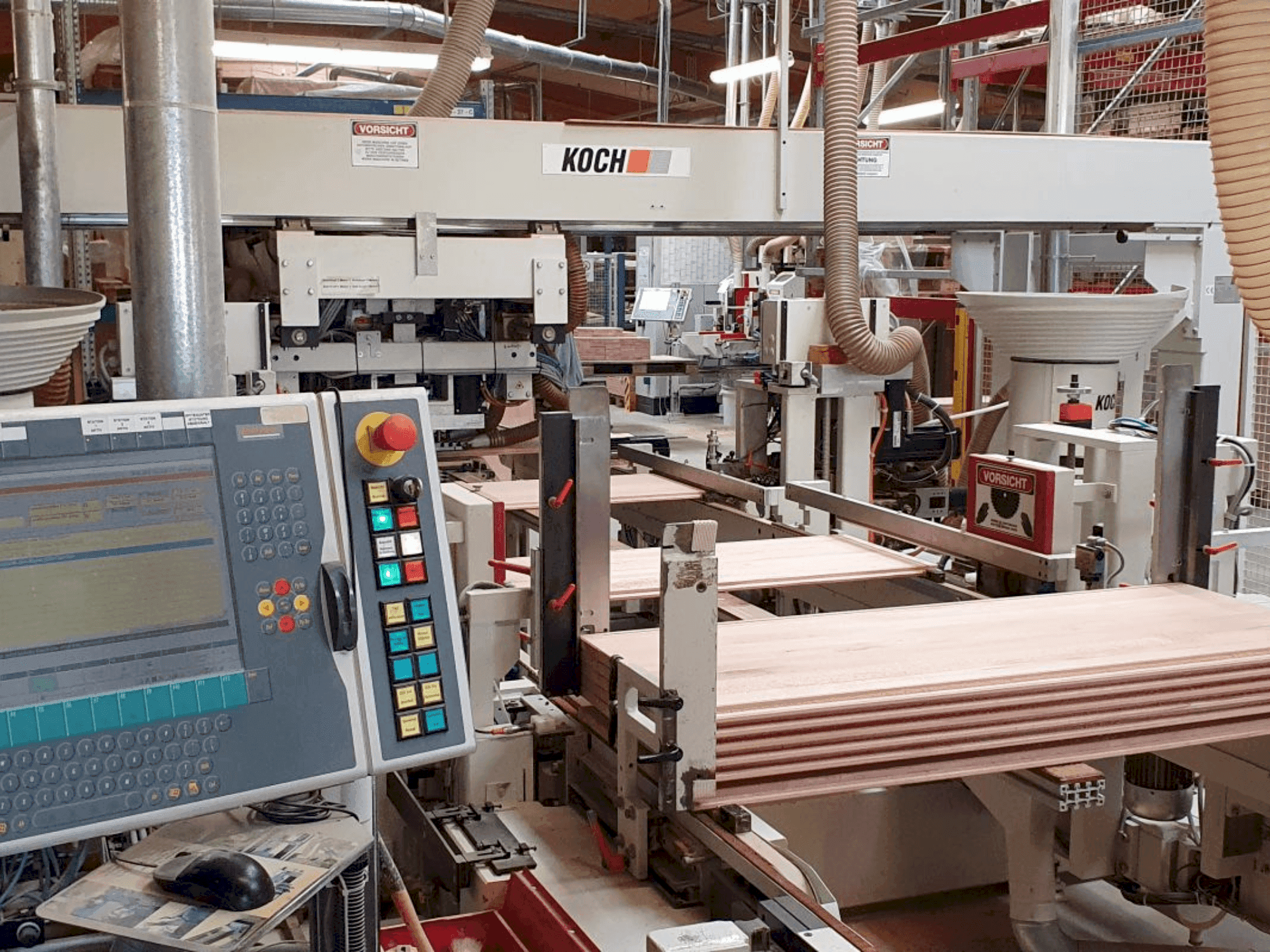

KOCH - SBD-60-PTPDE-WOO-KOC-2003-00001

Additional equipment

• Sawing unit with NC axis in Y direction.
• 5 horizontal drilling spindles, each capable of single jumping.
• Dowel inserting device for dowels 10 x 40 mm, with electronic glue control ELC.
• 2 vertical drilling heads, each with 28 spindles.
• 2 horizontal drilling spindles for length side drilling on the front and rear side.
• 1 grooving saw, 0/90° swivable.
• 2 workpiece center supports with automatic move down, NC controlled in X direction.

Machine Benefits

Qualitative Machine Benefits

• High precision and efficiency in processing due to advanced nc control and specialized drilling and cutting units.
• Enhanced product quality with precise dowel insertion and glue control.

Technical Machine Benefits

• Double-sided cutting, drilling, and dowel inserting machine
• Comprehensive capabilities for cutting, drilling, and dowel inserting, enhancing productivity and versatility in woodworking operations.
• Nc control for precise adjustments in width, height, and positioning, ensuring high accuracy and repeatability.
• Frequency-controlled sawblade jump and brass guide for tear-free cuts.
• Workpiece dimensions: length 140 – 2500 mm, width 40 – 550 mm (using magazine), 600 mm (without magazine), thickness 12 – 55 mm.
• Sawing station accommodates workpieces up to 560 mm in width.

Extra Information

Machine still under power.
