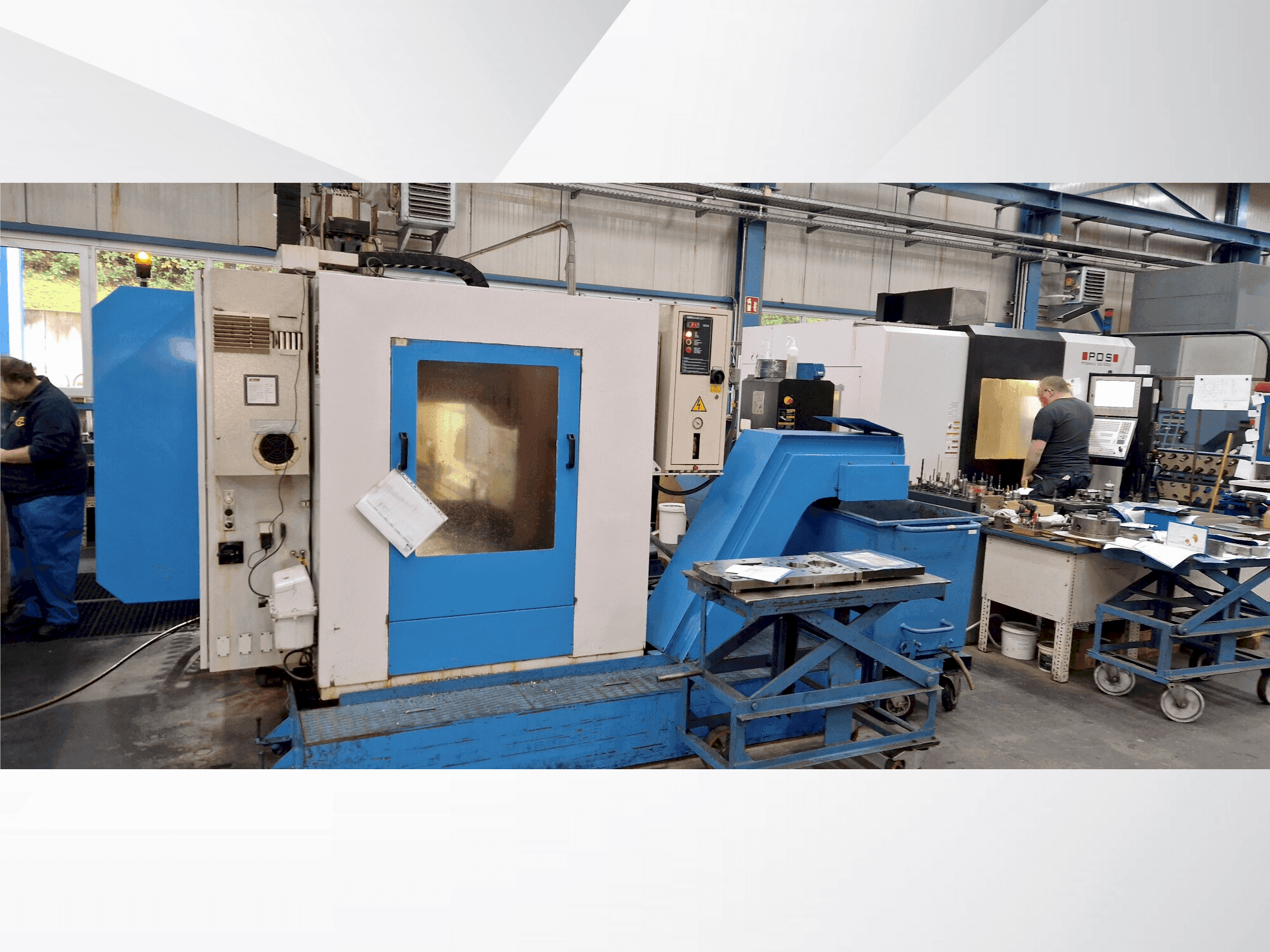

Front view of KONDIA HM-2010  machine
Front view of KONDIA HM-2010  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KONDIA HM-2010

Photo Gallery
An SVG of an eye

KONDIA - HM-2010DE-MIL-KON-2000-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Machine Tools
  • ➤ Used KONDIA HM-2010 For Sale | gindumac.com
Show in original language

This 3-axis KONDIA HM-2010 vertical machining centre was manufactured in 2000. It features a large working envelope with dimensions X 2000mm, Y 1000mm, Z 800mm, and is equipped with a SK 40 spindle and a 20-fold tool changer. The Heidenhain 426 control ensures precision and ease of use. A great opportunity to buy this KONDIA HM-2010 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: KONDIA
  • year: 2000
  • MODEL: HM-2010
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - KONDIA HM-2010

General Data

  • Machine weight: 12000 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: 426

Main drive

  • Spindle speed range: 100–4,000 RPM 1/MIN
  • Spindle motor power: 7.5 kW
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 2000 MM
  • Y-AXIS Movement: 1000 MM
  • Z-AXIS Movement: 800 MM

    Additional Equipment

    • - Coolant System for the Work Spindle: Included
    • - Number of Tools: 20
    • - Random Selection System: Yes / Tool Orientation: Non-directional
    • - Max. Tool Diameter (with adjacent tools): 35 mm / Max. Tool Diameter (without adjacent tools): 135 mm / Max. Tool Length: 250 mm / Max. Tool Weight: 6 kg
    • - Tool Change Time: 2.3 seconds
    • - DRIVES Work Spindle Motor (Dual-Winding): 5.5/7.5 kW (Optional: 7.5/11 kW) X and Z Axis Motor (Three-phase): 1.8 kW Y Axis Motor (Three-phase): 1.3 kW
    • - Coolant System (Work Spindle): 0.8 kW / Coolant System (Tool): 2.5 kW / Total Power Requirement: 14 kW
    • - Footprint: 5130 x 3570 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Worktable dimensions: 2000 x 1000 mm
        • - Number of t-slots: 7 / t-slot spacing: 125 mm / t-slot width: 22 mm / distance from table to floor: 860 mm
        • - Dimensions of ball screws (x, y, z axes): 50/40/40 mm
        • - Max. Recommended table load capacity: 2000 kg
        • - Rapid traverse (x and y axes): 24,000 mm/min / rapid traverse (z axis): 20,000 mm/min / feed rate: 5,000 mm/min
        • - Max. Available torque (at 330 rpm): 233 nm / max. Distance between milling spindle and table: 635 mm
        • - Programmable, oriented stop: 0. 1 s
        • - Positioning accuracy: +/- 0. 01 mm / repeatability: +/- 0. 005 mm / resolution: 0. 001 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
