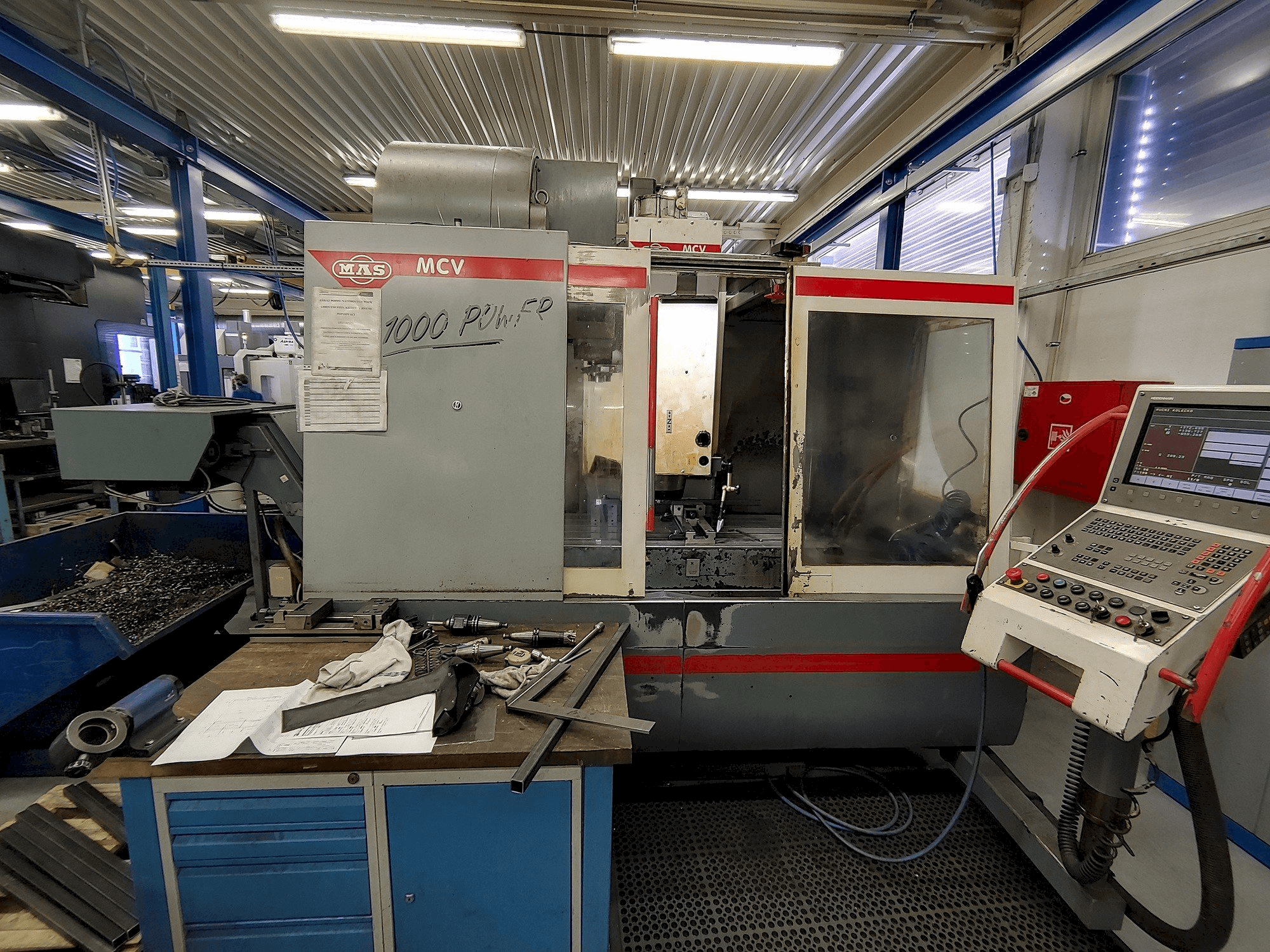

Front view of KOVOSVIT MAS MCV 1000 Power machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1000 Power

Photo Gallery

KOVOSVIT MAS - MCV 1000 PowerCZ-MIL-KOV-2003-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MCV 1000 Power

This KOVOSVIT MAS MCV 1000 Power Milling Machine was built in the year 2003 in the Czech Republic. It has a record of 63773 hours of which 26369 are working time. This 3 axis machine is equipped with a Heidenhain iTNC 530 Control unit. It can work with a spindle speed up to 8000 rpm. This machine is in very good conditions and it has new spindle bearings.

Overview

brand: KOVOSVIT MAS
year: 2003
MODEL: MCV 1000 Power
production hours: 63773
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1000 Power

General Data

Measurements width: 4600 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 10500 Kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 1200 Kg

Table

Outer length: 1300 mm
Outer width: 670 mm

Tools

Slots in storage: 24
Type of tool holder: ISO 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 28 / 43 kw
- - Cooling through spindle 20 bar
Qualitative Machine Benefits:
- - Very good condition of the machine
- - With new spindle bearings

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
