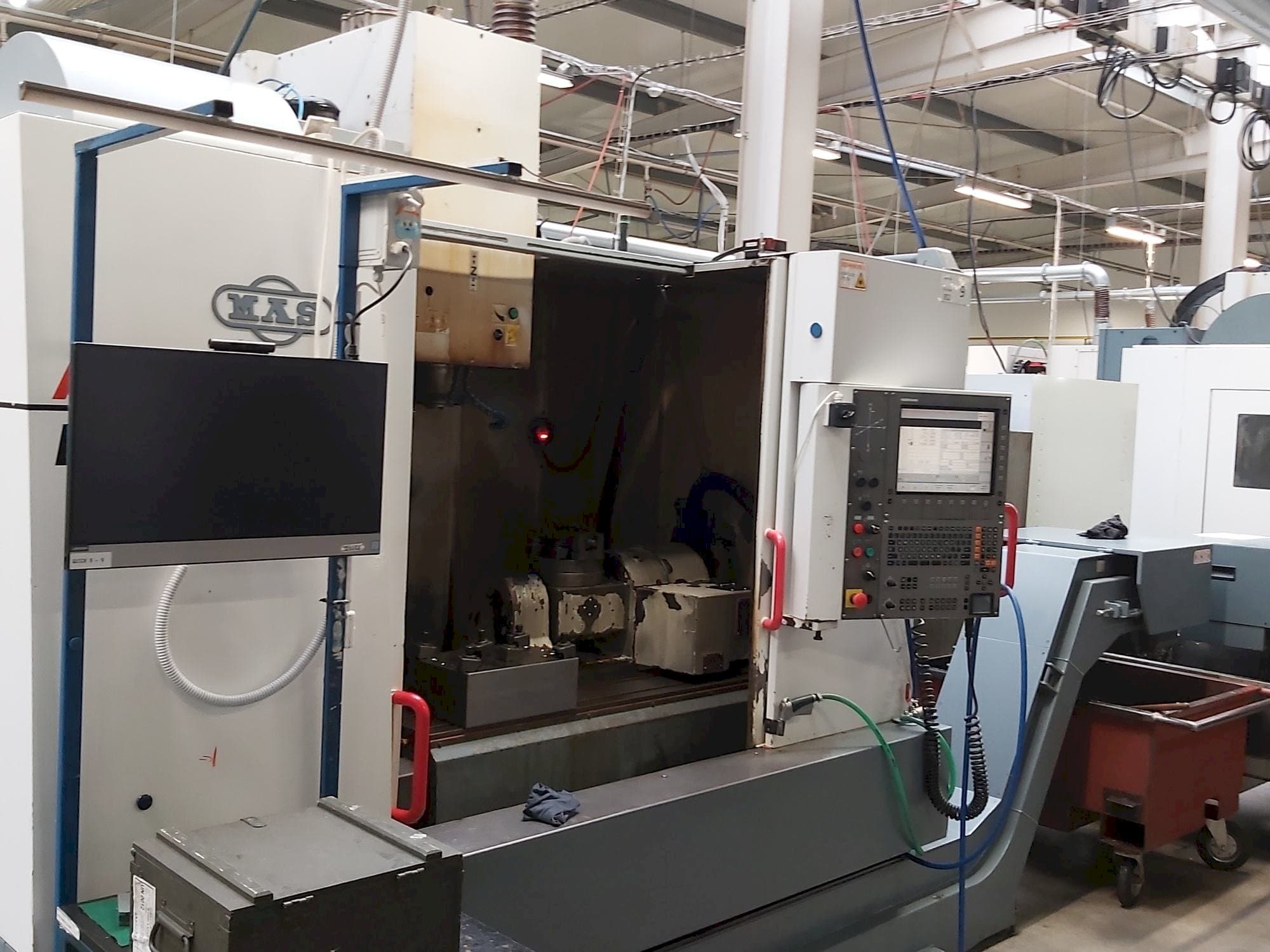

Left side view of KOVOSVIT MAS MCV 1016 Quick  machine

KOVOSVIT MAS MCV 1016 Quick

KOVOSVIT MAS - MCV 1016 Quick

2007

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This KOVOSVIT MAS MCV 1016 Quick Vertical Machine Center was manufactured in the year 2007 in the Czech Republic and has 82289 hours, of which 42945 are program hours. It is equipped with a Heidenhain iTNC 530 HSCI control unit and has 3+2 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: KOVOSVIT MAS
  • year: 2007
  • MODEL: MCV 1016 Quick
  • production hours: 82289
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: CZ-MIL-KOV-2007-00001

Technical Information

General Data

  • Measurements width: 3080 mm
  • Measurements depth: 2700 mm
  • Measurements height: 2937 mm
  • Machine weight: 5500 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530 HSCI

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: (S1/S6 - 40%) 17/25 kW
  • Number of axis: 3+2

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 710 mm

Workpiece

  • Workpiece weight: 700 kg

Table

  • Outer length: 1300 mm
  • Outer width: 600 mm
  • TSlots size: 5
  • Distance between: 125 mm

Tools

  • Slots in storage: 24
  • Max weight: 6,5 kg
  • Max tool diameter: 75/120 mm
  • Max tool length: 300 mm
  • Type of tool holder: ISO 40

Media

  • Power consumption: 40 kva

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cooling through spindle
      • - Tool holders, various options
      • - Main motor torque (s1/s6 - 40%) 162/239 nm
      • - Work feedrate (x/y/z) 1-30 000 mm/min
      • - 4+5th-axis table
    • Qualitative Machine Benefits:
      • - Very good condition
      • - Regularly serviced
      • - 2021 - new spindle
      • - 2022 - new ballscrew on z axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
