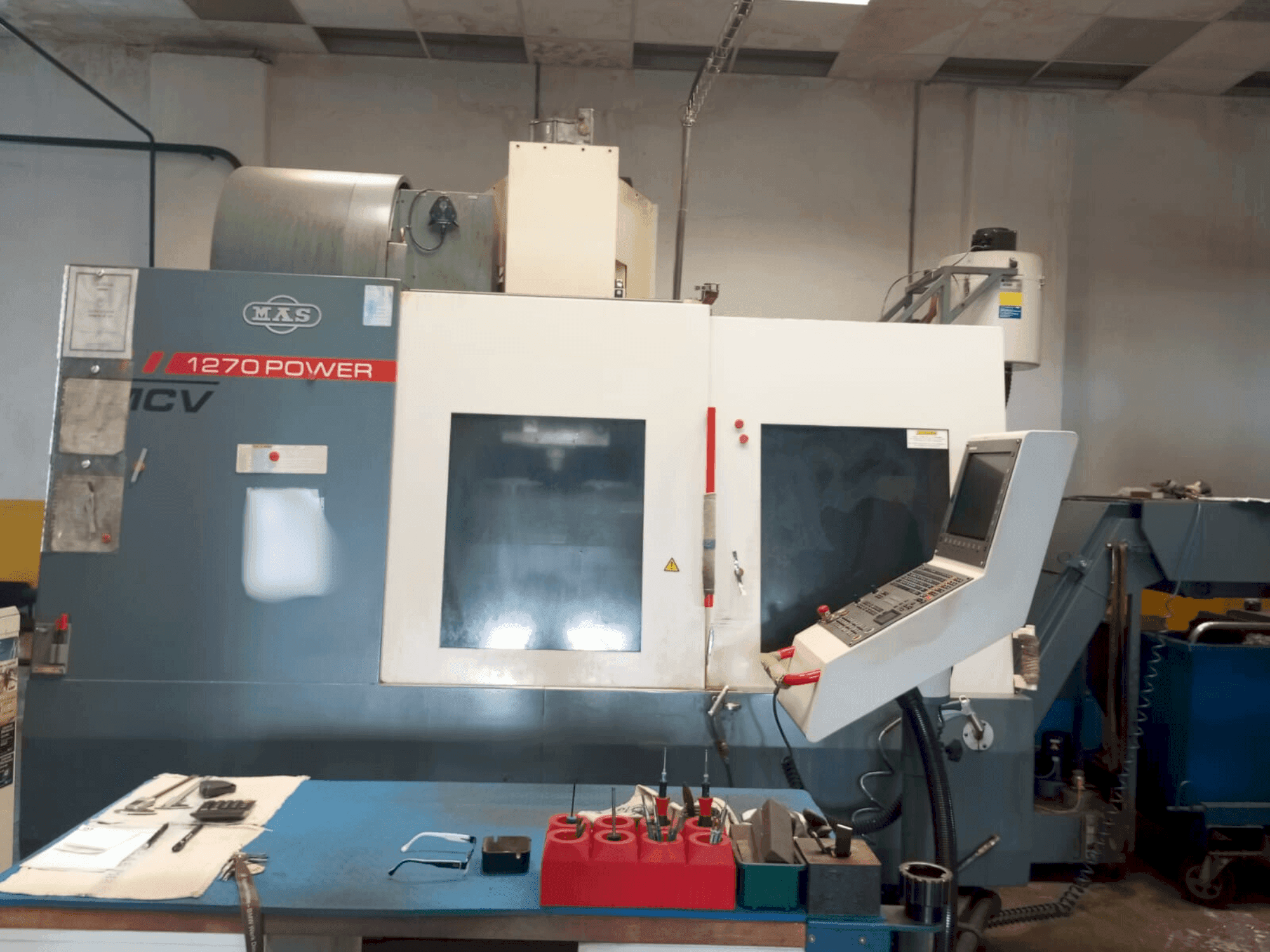

Front view of KOVOSVIT MAS MCV 1270 Power  machine

KOVOSVIT MAS - MCV 1270 PowerCZ-MIL-KOV-2013-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis KOVOSVIT MAS MCV 1270 Power was manufactured in 2013. A robust vertical machining center with a table size of 1500 × 670 mm and a maximum load of 1,200 kg. Features include a spindle speed of 8000 rpm and a spindle power of 28/43 kW. Rapid feed rates reach up to 40 m/min. Ideal for heavy and precise machining tasks. For more information about this vertical machining center, please reach out to us.

Overview

  • brand: KOVOSVIT MAS
  • year: 2013
  • MODEL: MCV 1270 Power
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - KOVOSVIT MAS MCV 1270 Power

General Data

  • Machine weight: 11800 KG

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 28 / 43 kW (S1/S6-40%)
  • Tool taper: ISO 40
  • Main motor power: 40 kVA

Movement

  • X-AXIS Movement: 1270 mm
  • X-AXIS Working Feed: 1 - 40,000 mm/min
  • X-AXIS Rapid traverse: 40 m/min
  • Y-AXIS Movement: 610 mm
  • Y-AXIS Working Feed: 1 - 40,000 mm/min
  • Y-AXIS Rapid traverse: 40 m/min
  • Z-AXIS Movement: 720 mm
  • Z-AXIS Working Feed: 1 - 40,000 mm/min
  • Z-AXIS Rapid traverse: 40 m/min

Table

  • Outer length: 1500 mm
  • Outer width: 670 mm
  • Table load: 1200 kg

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Total on hours 23961 / spindle hours 11703
    • Qualitative Machine Benefits:
      • - Direct measuring system for high precision

    Extra information

    • - Machine still under power // Including Probe ISO 40 TS460, external tool blowing, manual rinsing, central cooling, working space suction, status signaling, preparation for 4th axis, internal chip rinsing, chip conveyor, documentation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
