Krauss Maffei - 1300-12000 MXPL-INJ-KRA-2015-00001

Name: Krauss Maffei 1300-12000 MX
Brand: Krauss Maffei
SKU: PL-INJ-KRA-2015-00001
Price: 185000 EUR
Availability: InStock

185,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 1300-12000 MX For Sale | gindumac.com

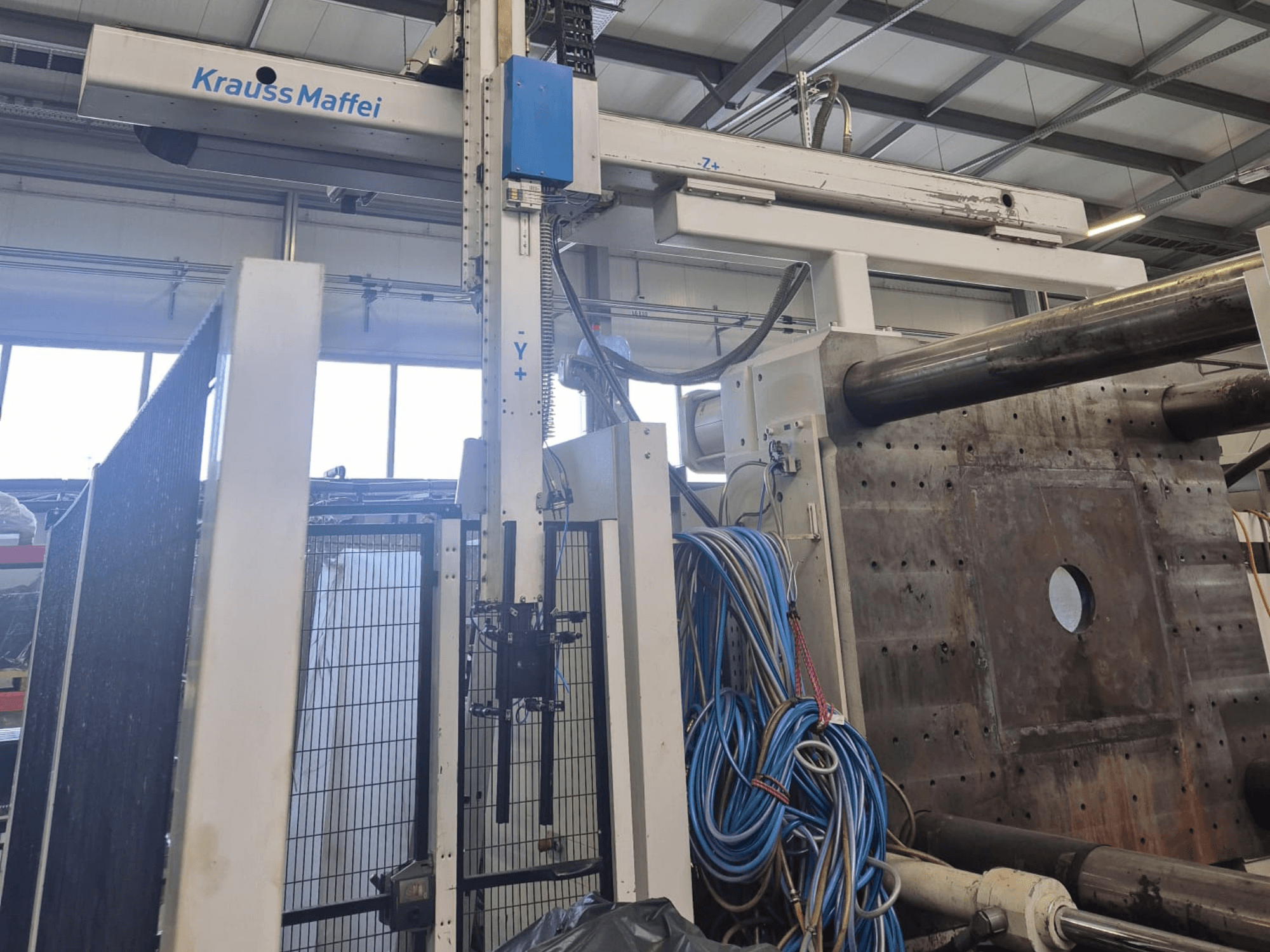

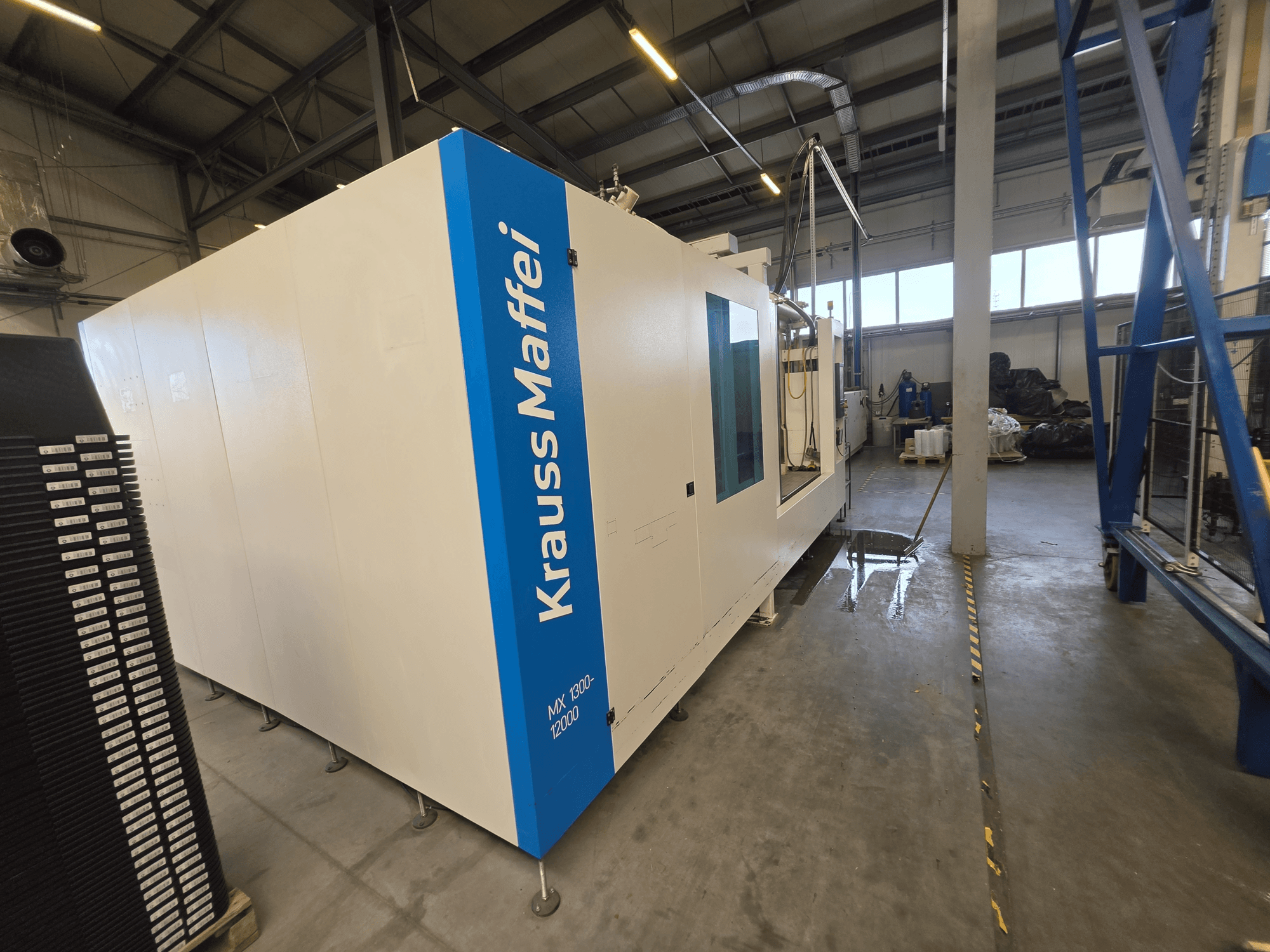

Hydraulic injection moulding machine manufactured in 2015. This KraussMaffei 1300-12000 MX features a clamping force of 13,000 kN and platen dimensions of 2210 x 1910 mm. The injection unit has a screw diameter of 105 mm and a shot volume of 5195 cm³. If you are looking to get high-quality injection moulding capabilities, consider the KraussMaffei 1300-12000 MX machine we have for sale. Contact us for further details.

Overview

brand: Krauss Maffei
year: 2015
MODEL: 1300-12000 MX
production hours: 68387
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 1300-12000 MX

Control Unit

Control Brand: KRAUSS MAFFEI
Control Model: MC6 version 1.4

Dimensions

Machine Height: 2820 mm
Machine Length: 13650 mm
Machine Weight: 70000 kg
Machine Width: 3650 mm

Technical Specification

Clamping Force: 13000 kN
Max. Shot Weight: 4779.4 g
Screw Diameter: 105 mm

Additional Information

Clamping unit

Platen dimensions: 2210 x 1910 mm
Distance between tie bars: 1570 x 1270 mm
Min. mould height: 700 mm
Max. mould height: 1400 mm
Max. opening width: 3050 mm

Injection unit

Injection unit: SP 12000
Shot volume: 5195 cm³
Max. injection pressure: 2296 bar

Electrical and hydraulic

Pump motor power: 132 kW
Heating power: 75 kW
Power supply: 400 V, 3-phase, 50 Hz

Operating data

Power-on hours: 70003 h 29 min
Production operating hours: 68387 h 27 min
Total cycles: 5,472,772

Additional equipment

KraussMaffei LRX 350 linear robot
Material hopper / feeding equipment
Safety guarding around mould and robot area

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
