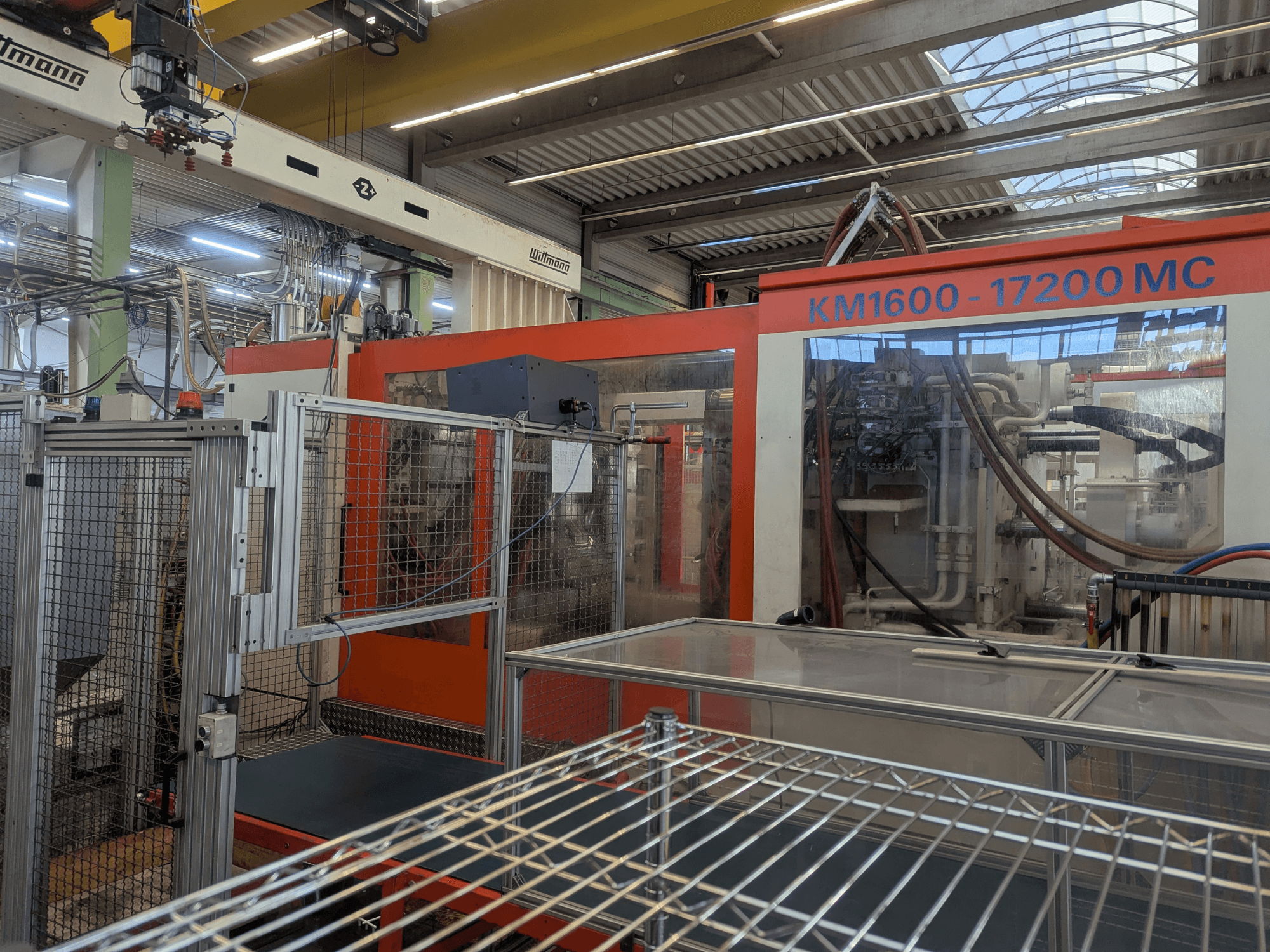

Krauss Maffei - 1600-17200MCDE-INJ-KRA-2001-00009

• Injection unit: 17200

• Distance between tie bars (h × v): 1600 × 1250 mm

• Platen size (h × v): 2600 × 2110 mm

• Clear distance (x × y): 1800 × 1400 mm

• Max. mold opening stroke: 2,500 mm

• Mold installation height (min–max): 900–1,600 mm

• Opening width: 3,400 mm

• Mold opening force: 1,108 kN

• Moving platen force: Opening 177 kN / Closing 153 kN

• Ejector stroke: 300 mm

• Ejector force (forward/backward): 415 / 177 kN

• Operating voltage: 400 V / 50 Hz

• Motor current: 446 A

• Heating current: 164 A

• Total pump operating hours: 73,761 h

Additional equipment

• Wittmann Robot System W650 (2001)

• Hub Stroke X 1500; Y 2600; Z 3500

• Spare cylinder/screw set (1x)

• Internal cooling system

• Core pullers (2x)
