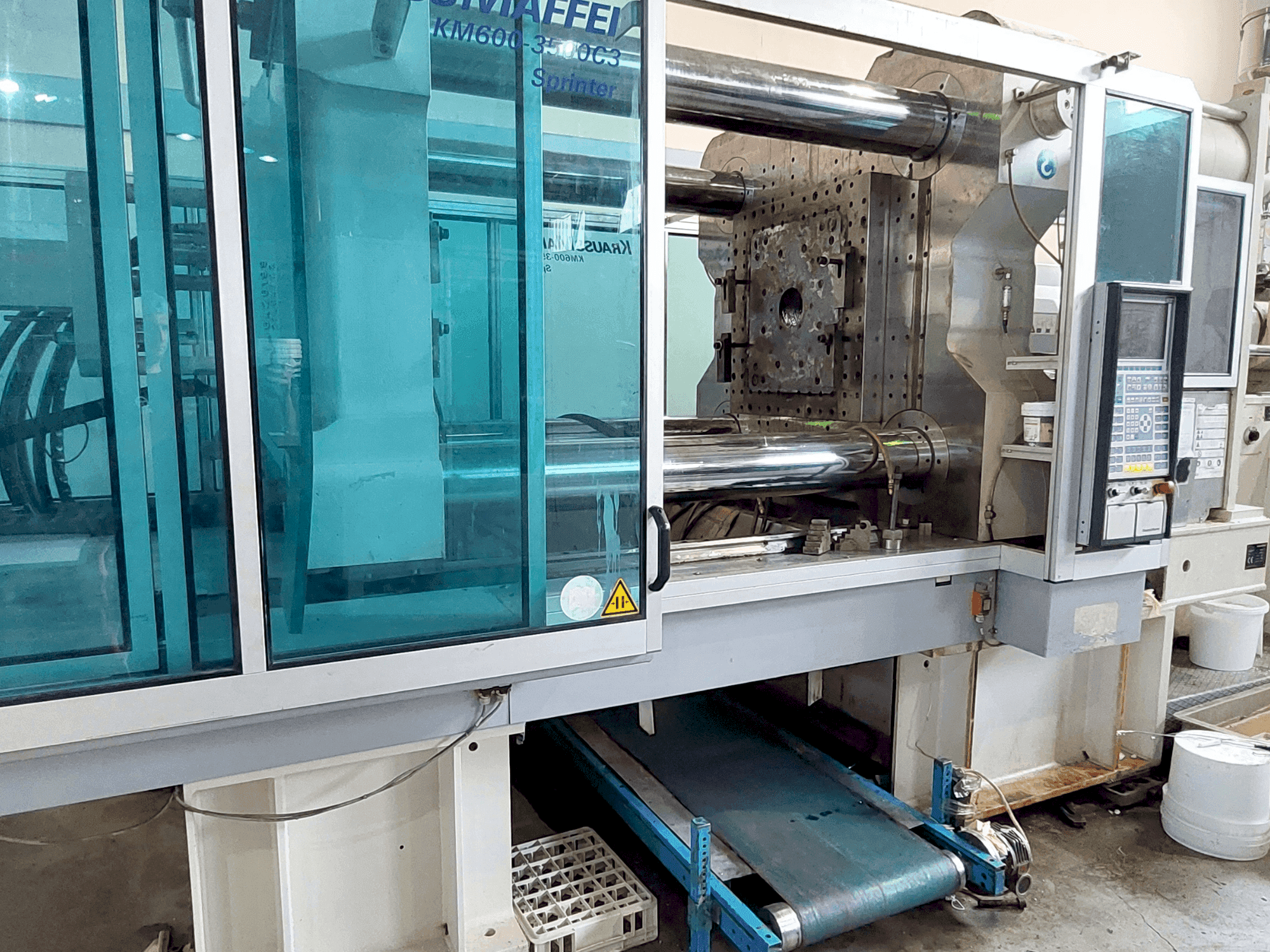

Front view of Krauss Maffei 600 - 3500 C3  machine

Krauss Maffei - 600 - 3500 C3RS-INJ-KRA-2006-00001

28,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei 600 - 3500 C3 hydraulic injection moulding machine was manufactured in 2006. It features a tie bar distance of 1000 x 930 mm and an opening stroke of 1150 mm. Equipped with 1 core valve, 3 air valves, and a screw diameter of 80 mm, it also includes an EU 12 connection for robot integration. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

  • brand: Krauss Maffei
  • year: 2006
  • MODEL: 600 - 3500 C3
  • application type: Injection Moulding
  • Location: Serbia
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Krauss Maffei 600 - 3500 C3

General Data

  • Measurements width: 2650 mm
  • Measurements depth: 9360 mm
  • Measurements height: 2430 mm
  • Machine weight: 43400Kg

Injection Unit

  • Screw diameter: 80 mm

Clamping unit

  • Opening stroke: 1150 mm
  • Distance between bars: 1000 x 930 mm

    Additional Equipment

    • - Core Valve: 1
    • - Air Valves: 3
    • - EU 12 for Robot Connection: Yes
    • - Attached you will find some drawings with fundament and platens.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Closing unit: · platen size 1510 x 1370mm · between tie bars 1000 x 930mm · oppening stroke 1150mm · min. Mold size 600mm · total open space 1750mm · ejector stroke 250mm
        • - Injection unit: · sp 3500 with screw diameter 80 · l/d 25. 9 · injection pressure 2205 bar · volume stroke 1543 cm3 · max. Shot weight ps 1404g (around 1110g pp)
        • - Instaled power: · main motor 160kw · servo motor for dosing 70kw (for paralel operations) · heating power 57kw

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
