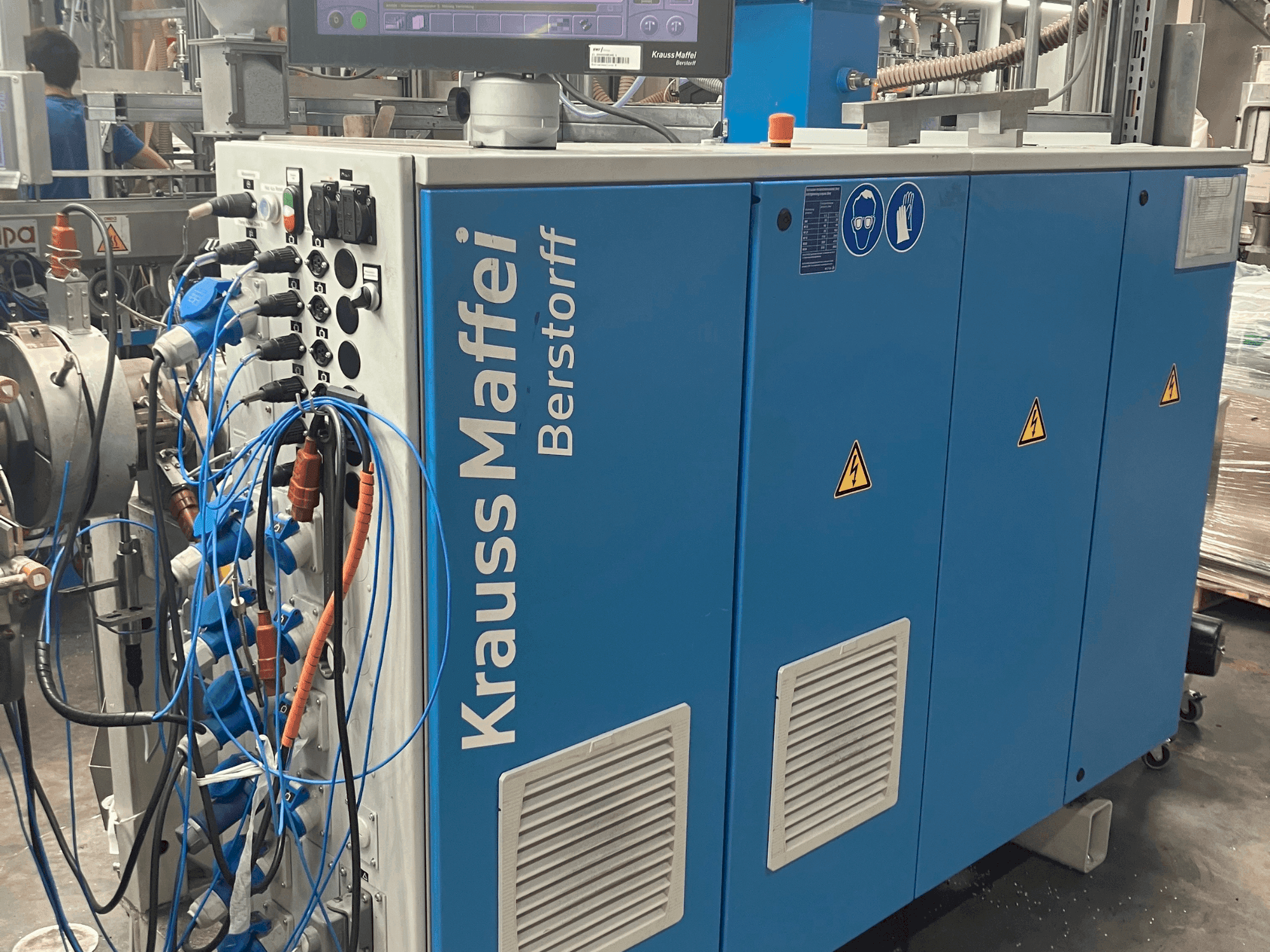

Krauss Maffei - KME 45 XSDE-EXT-KRA-2025-00001

Extra information

• Main Drive

-Rated Drive Power:

KME 45 XS: 23 kW

KME 60 XS: 37 kW

-Maximum Drive Speed:

KME 45 XS: 2486 rpm

KME 60 XS: 2427 rpm

-Gear Ratio:

KME 45 XS: 1:12.4

KME 60 XS: 1:15.46

• Screw

-Diameter:

KME 45 XS: 45 mm

KME 60 XS: 60 mm

-Length:

KME 45 XS: 1350 mm

KME 60 XS: 1800 mm

-Min./Max. Speed:

KME 45 XS: 20 – 200 rpm

KME 60 XS: 157 rpm

• Cylinder

-Heating/Cooling Zones:

KME 45 XS: 5

KME 60 XS: 5/5

-Max. Air Flow with Fan Cooling:

KME 45 XS: 5 x 630 m³/h

KME 60 XS: 3150 m³/h

-Max. Installed Cylinder Heating Capacity:

KME 45 XS: 10 kW

KME 60 XS: 14.5 kW

• Dimensions & Weight

Extrusion Height: 1000 mm

Length Including Adapter:

KME 45 XS: 2120 mm

KME 60 XS: 2751 mm

-Width Including Control Panel:

KME 45 XS: 1125 mm

KME 60 XS: 1115 mm

-Height Including Dosing Unit & Hopper:

KME 45 XS: 1960 mm

KME 60 XS: 1907 mm

-Net Weight Including Control Cabinet:

KME 45 XS: approx. 1100 kg

KME 60 XS: approx. 1700 kg

• Connection Data

Cooling Water Requirement:

KME 45 XS: approx. 0.6 m³/h

KME 60 XS: approx. 1.0 m³/h

Tool Heating Zones (Number/Power):

-Pipe Extrusion:

45 XS: 4 × 10 kW

60 XS: 4 × 11 kW

-Profile Extrusion:

45 XS: 5 × 3.6 kW

Max. Total Connected Load:

-Pipe Extrusion:

45 XS: 90 kW

60 XS: 101 kW

-Profile Extrusion:

45 XS: 76 kW

• Material Feed

Hopper Volume: both: 0.1 m³
