➤ Used Krauss Maffei KME 75-36 R AC | Extrusion

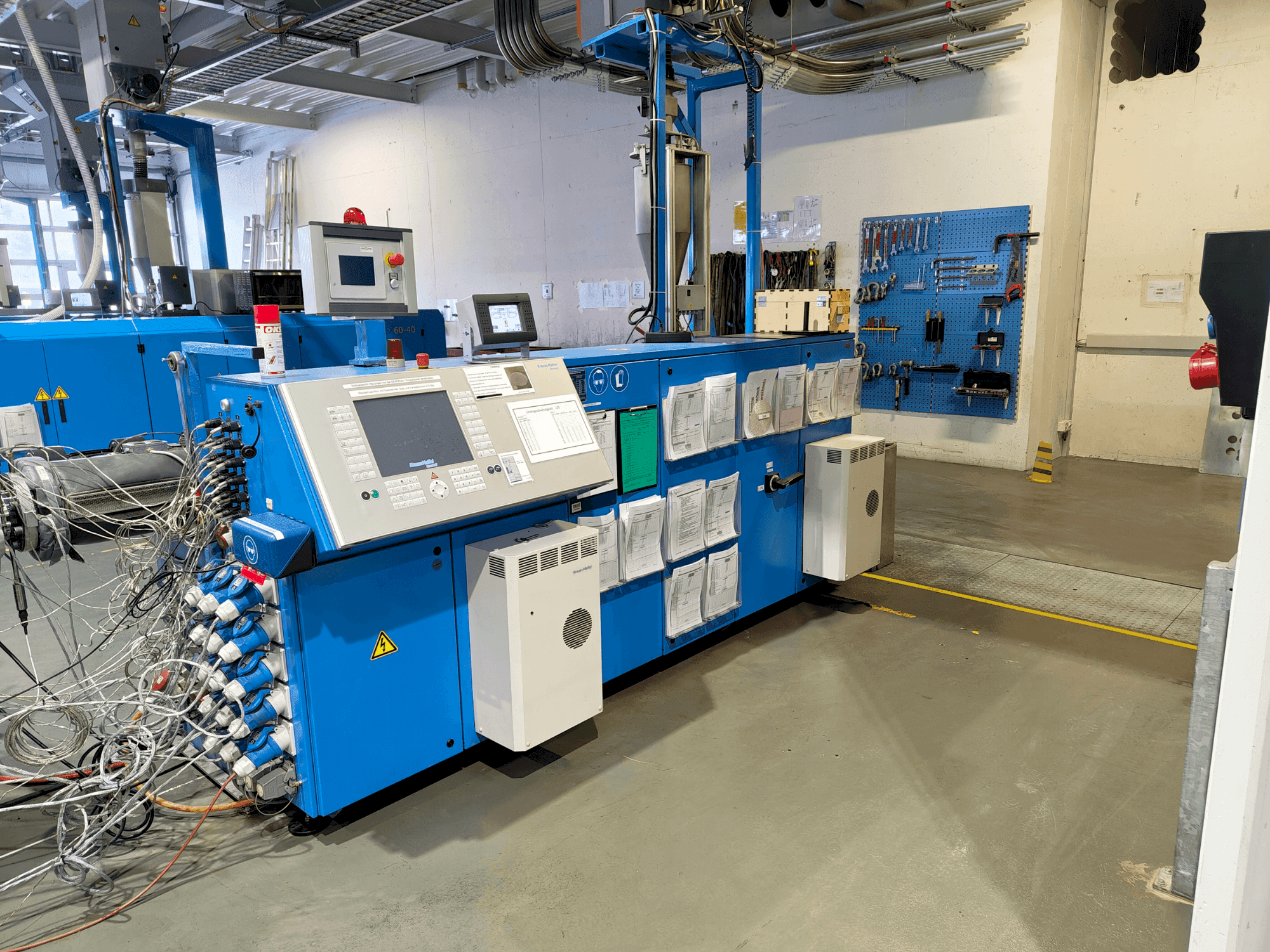

This Krauss Maffei KME 75-36 R AC single screw extruder was manufactured in 2008. It features a KM-GM 750 control integration with meter weight and mass throughput control, and a capacity of up to 750 kg/h granulate. The machine includes a connection for INDEX wall thickness measurement and is equipped with a EURO socket CEE 32 A - 6 H / 250 V. Contact us for more information about this machine.

Overview

brand: Krauss Maffei
year: 2008
MODEL: KME 75-36 R AC
production hours: 75559
application type: Extrusion
Location: Switzerland
machine type: Single Screw Extruder

Technical Information - Krauss Maffei KME 75-36 R AC

Main drive

Spindle motor power: 200.2 kW

Injection Unit

Screw diameter: 75 mm

Main drive

Spindle motor power: 200.2 kW

Injection Unit

Screw diameter: 75 mm

Additional Information

Additional equipment

Connection to Measuring System: Connection for connection to INDEX wall thickness measurement
Equipment for tool zones: EURO socket CEE 32 A - 6 H / 250 V, 3-pole blue
Central main power supply

Machine Benefits

Technical Machine Benefits

Supplement to the wiring: thermal sensor wiring socket: pin 1+, pin 3-
Capacity: up to 750 kg/h granulate
Extruder control voltage: 24 v
Control voltage: dc voltage
Valve voltage: 24 v
Control integration: km-gm 750; with meter weight and mass throughput control, hopper with lid, integrated via can module in km control system.
Capacity up to 750kg/h granulate
Throughput: 1,000 kg/h / kilograms of hdpe per hour: maximum 750-800 kg/h.

Extra Information

Machine still under power
