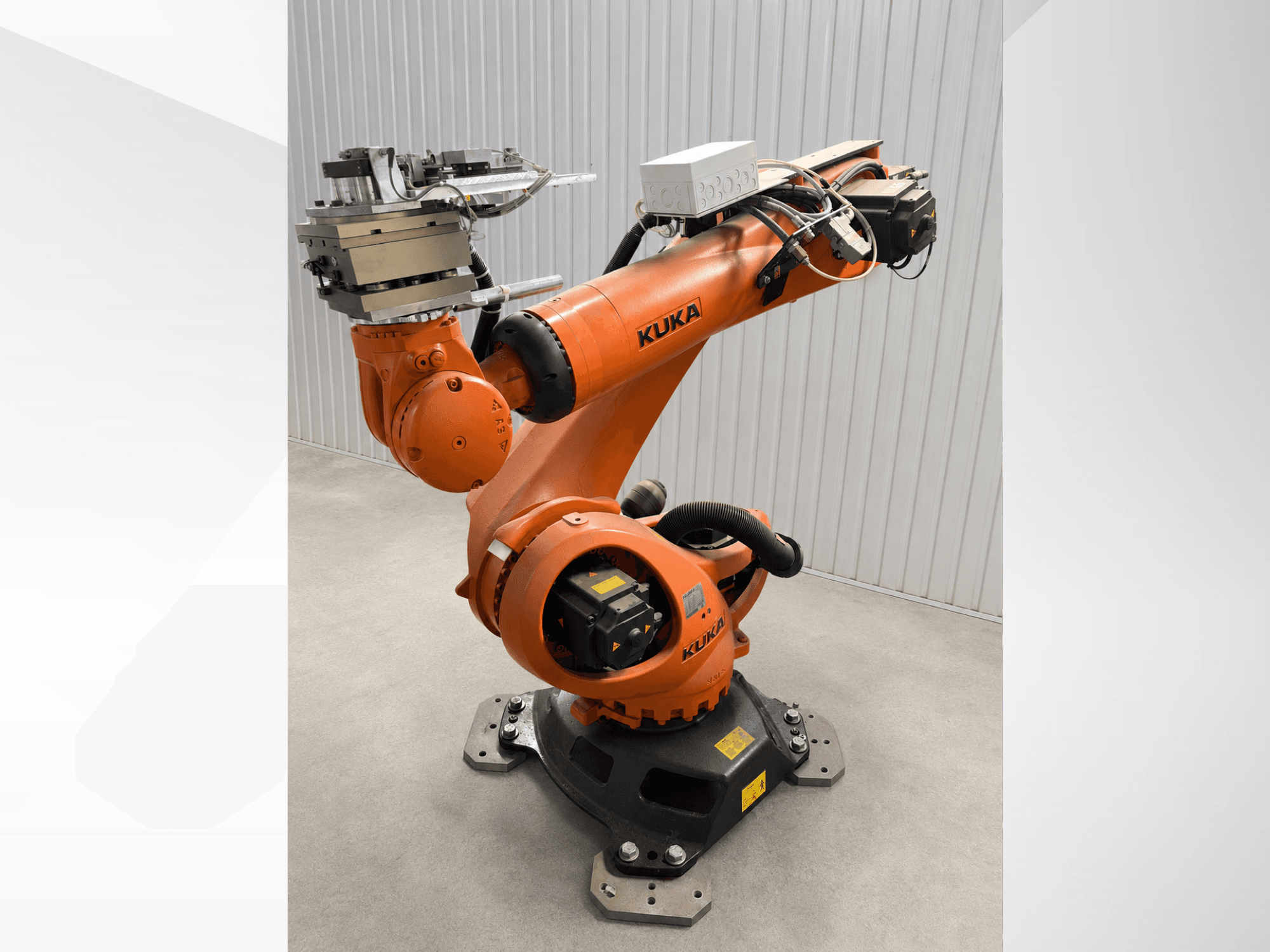

This 6-axis KUKA KR 90 R3100 extra was manufactured in 2013. It features a load capacity of 90 kg and a range of 3096 mm, making it suitable for various applications. The machine includes a KUKA KRC4 control cabinet and a smartPAD teach pendant for enhanced usability. If you are looking to get high-quality robotic capabilities, consider the KUKA KR 90 R3100 extra robot arm we have for sale. Contact us for further details.
Overview
- brand: KUKA
- year: 2013
- MODEL: KR 90 R3100 extra (2013)
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
Technical Information - KUKA KR 90 R3100 extra (2013)
Dimensions
- Machine Weight: 1092 kg
Movement
- Number of Axes: 6
Technical Specification
- Max. Handling Weight: 90 kg
- Max. Reach: 3096 mm
Additional Information
- Controller Model: KRC4
- Year of Manufacture (Robot): 2013
- Year of Manufacture (Controller): 2013
- Robot Weight: 1092 kg
- Controller Weight: 150 kg
- Load Capacity: 90 kg
- Range: 3096 mm
- Supply Voltage: 3x400V
- Frequency: 50/60Hz
- Full-Load Current: 20A
- Mains Fuse: 25A
- Included Accessories / Components:
- KUKA KRC4 Control Cabinet
- KUKA smartPAD Teach Pendant
- Base mounting plate with leveling bolts
- Upper arm extension fixture / junction box assembly
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
