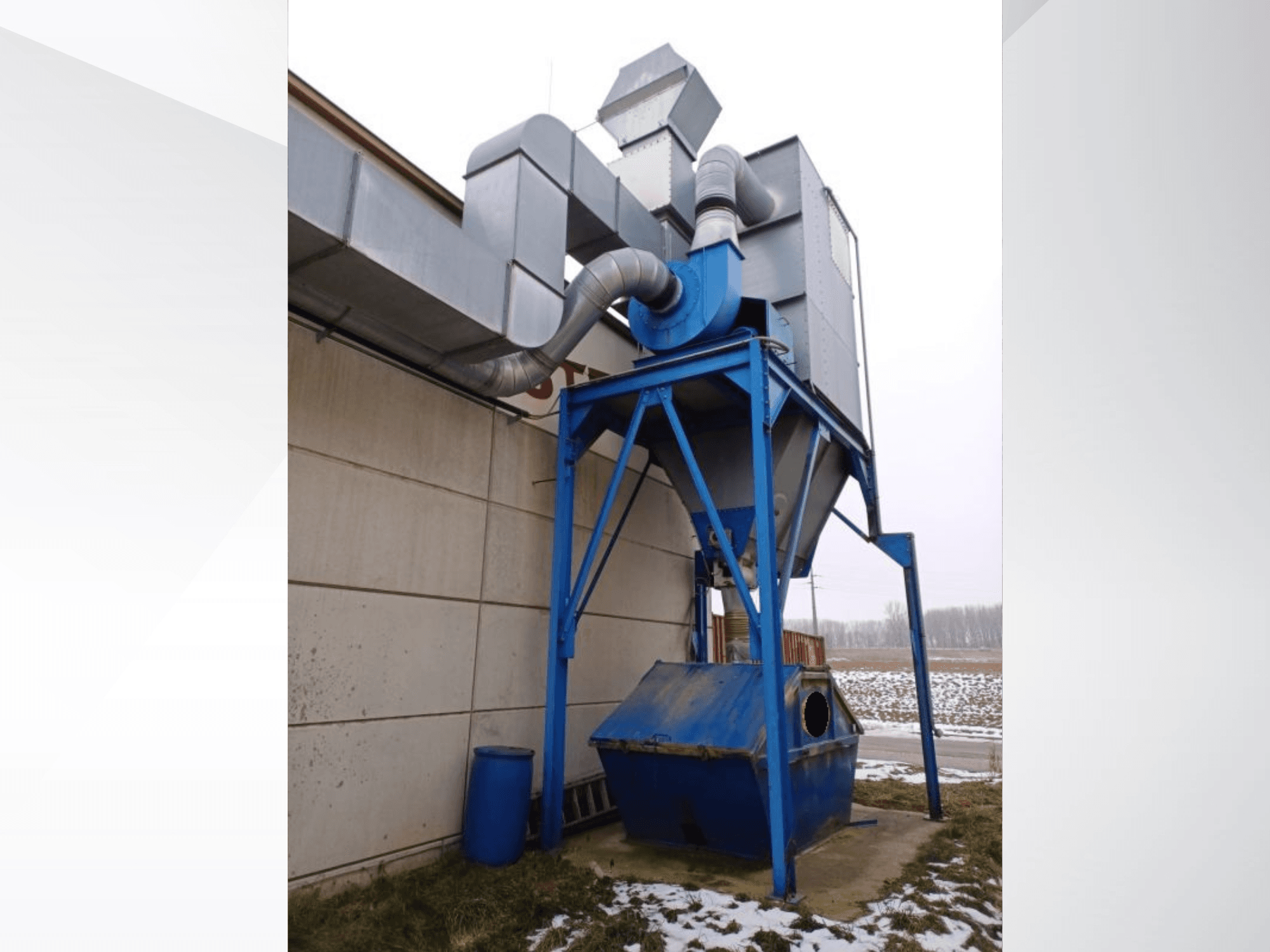

LBH suction system in blue with a cylindrical separator and connection pipes, front view against a snowy background.
LBH suction system in blue with a cylindrical separator and connection pipes, front view against a snowy background.

LBH - Suction systemAT-OTH-LBH-2002-00001

12,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Dust extraction system manufactured in 2002. This LBH Suction system features a robust radial fan with a motor power of 22 kW and an impressive air flow rate of 13,750 m³/h. The filter area is 155 m², ensuring efficient dust removal with a residual dust content of less than 0.2 mg/m³. If you are looking to get high-quality dust extraction capabilities, consider the LBH Suction system we have for sale. Contact us for further details.

Overview

  • brand: LBH
  • year: 2002
  • MODEL: Suction system
  • application type: Other Woodworking Machinery
  • Location: Austria
  • machine type: Other (Wood)

Technical Information - LBH Suction system

Dimensions

  • Machine Height: 8400 mm
  • Machine Length: 2250 mm
  • Machine Width: 2500 mm

Additional Information

  • Return air/exhaust air (technical data):

    • Duct cross-section: 700 x 700 mm

    • Return air velocity: 7.5 m/s

    • Exhaust air velocity in workshop: <0.5 m/s

    • Sound pressure at 3 m from exhaust outlet (summer operation): 55 dB(A)

  • Extraction fan:

    • Design: Belt-driven radial fan (impeller statically/dynamically balanced)

    • Type: VSR-080-0450-K

    • Motor power: 22 kW

    • Airflow: 13,750 m³/h

    • Total pressure: 3000 Pa

    • Main pipe diameter (fan side): 450 mm

    • Extraction speed: 24 m/s

    • Sound pressure at 3 m: 78 dB(A)

  • Intermediate filter system:

    • Filter media: Polyester needle-felt hoses

    • Cleaning: 2 vibrating motors, each 180 W / 3,000 min⁻1

    • Filter area: 155 m²

    • Filter area load: 88 m³/h per m²

    • Residual dust in clean air: <0.2 mg/m³

    • Application categories: U, S, G

    • Installation: Outdoors with galvanized weather protection cladding

    • Drives: Gear motor for screw conveyor 0.55 kW; gear motor for sluice (rotary valve) 0.55 kW

  • Pipe system (technical data):

    • Main chip extraction pipe: Ø459 mm

    • Air velocity at extraction points: 22–26 m/s

Additional equipment

  • Ducting and safety:

    • Galvanized return/exhaust air ducting

    • Tested K90 fire damper at wall penetration

  • Controls/automation:

    • Frequency converter (VFD) in switch/control cabinet for variable air volume

  • Vibration/noise isolation:

    • Fan mounted on vibration dampers

    • Suction- and pressure-side compensators

  • Filter discharge and handling:

    • Screw conveyor (discharge screw) with worm gear drive

    • Rotary valve (sluice) with rubber sealing elements; sprocket/chain drive

    • Chip collection container (under filter discharge)

  • Protection and safety systems:

    • Extinguishing line with blast nozzles, routed outside and downwards, terminating with C-coupling

    • Bursting devices (explosion relief) per VDI 3673

  • Piping and connection hardware:

    • Galvanized piping network with pipes, elbows, branches, clamps

    • Transitions/sleeves to machines

    • Flexible extraction hoses with hose clamps

    • Galvanized shut-off valves for unused extraction points


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
