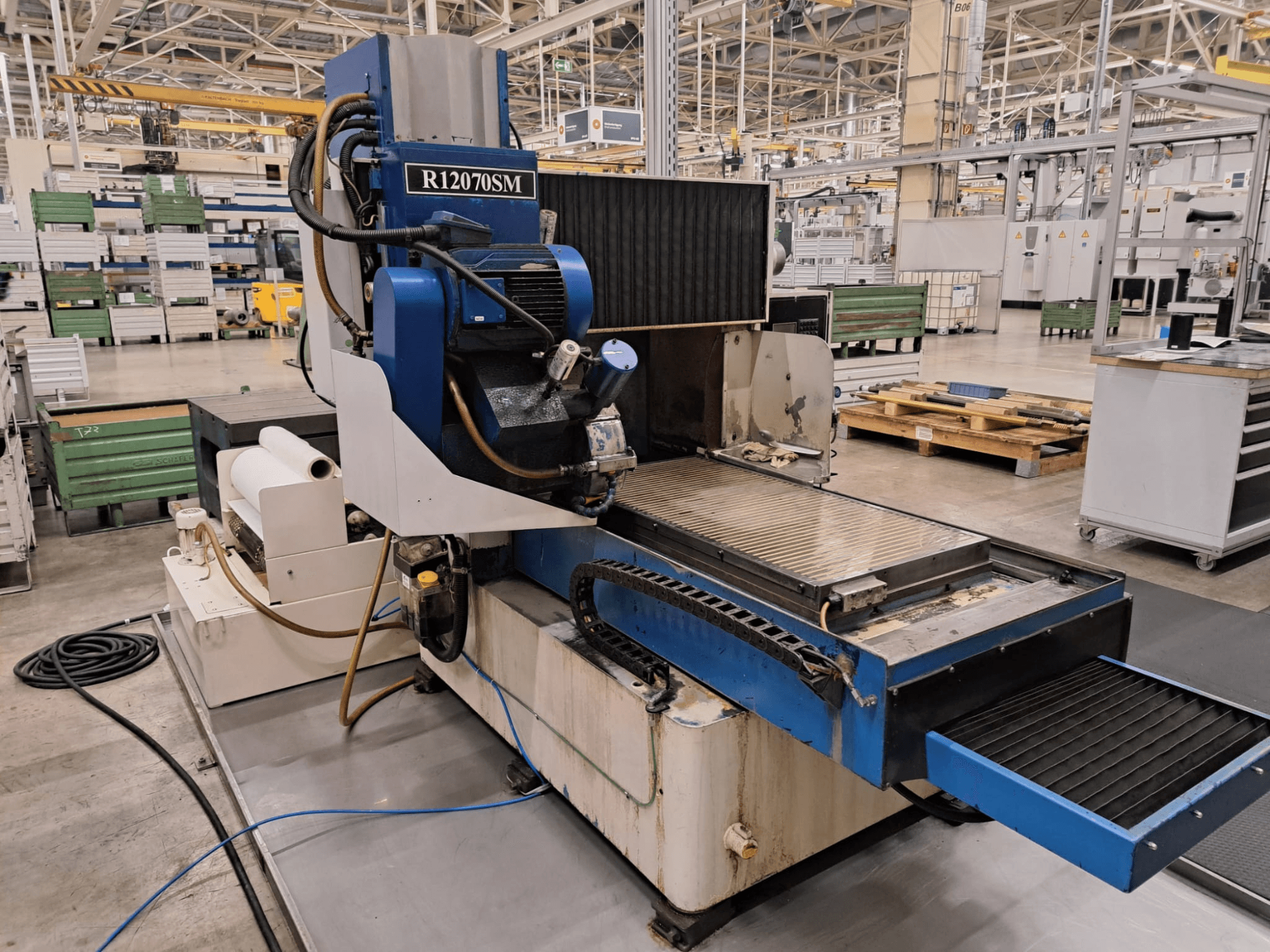

Surface grinding machine LGB R12070SM in a factory setting, viewed from the front, showcasing its operational features and layout.
Surface grinding machine LGB R12070SM in a factory setting, viewed from the front, showcasing its operational features and layout.

LGB - R12070SMDE-GRI-LGB-1998-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis LGB R12070SM surface grinding machine was manufactured in 1998. It features a table size of 1200 x 600 mm and an impressive X-axis travel of 1320 mm, along with a maximum workpiece weight capacity of 1400 kg. The machine is equipped with a powerful 9 kW spindle and includes various accessories for enhanced functionality. If you are looking to get high-quality grinding capabilities, consider the LGB R12070SM machine we have for sale. Contact us for further details.

Overview

  • brand: LGB
  • year: 1998
  • MODEL: R12070SM
  • application type: Grinding
  • Location: Germany
  • machine type: Surface Grinding Machine

Technical Information - LGB R12070SM

Dimensions

  • Machine Height: 2250 mm
  • Machine Length: 3500 mm
  • Machine Weight: 4500 kg
  • Machine Width: 1875 mm
  • Table Length: 1200 mm
  • Table Width: 600 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1320 mm
  • Y-axis Travel: 480 mm
  • Z-axis Travel: 730 mm

Technical Specification

  • Spindle Power: 9 kW

Additional Information

- Table Size: 1200 x 600 mm

- X-Axis Travel: 1320 mm

- Z-Axis Travel: 730 mm

- Y-Axis Travel: 480 mm

- Maximum Workpiece Weight: 1400 kg

- Grinding Height: 520 mm

- Grinding Wheel Dimensions: Ø 350 x 50 mm

- Wheel Bore: 127 mm

- Spindle Power: 9 kW

- Power Supply: 3x 380V / 50 Hz

- Vertical Feed: Up to 10 mm/min

- Workholding: Electromagnetic chuck table

- Coolant System: IQ-FILTRATION / IQ-FLUIDS coolant tank unit (Filter fleece FN 20060, 710 mm x 100 m, Tank fluid volume: 200 L, Fluid type: Castrol Hysol SL 35 XBB)

- Air Supply: Integrated compressed air blow-off gun attached to side control panel

- Electrical Components: KEB COMBIVERT F4 drive inverter, Danfoss VLT frequency converters, Weidmüller power supplies, magnet plate controller

- Included Accessories / Tooling: Grinding wheel mounted on flange, spare grinding wheel flanges, dresser / fixture attachments, tooling storage box, instruction manual, oil mist extraction

- Transport Dimensions (L x W x H): Approx. 3500 x 1875 x 2250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
