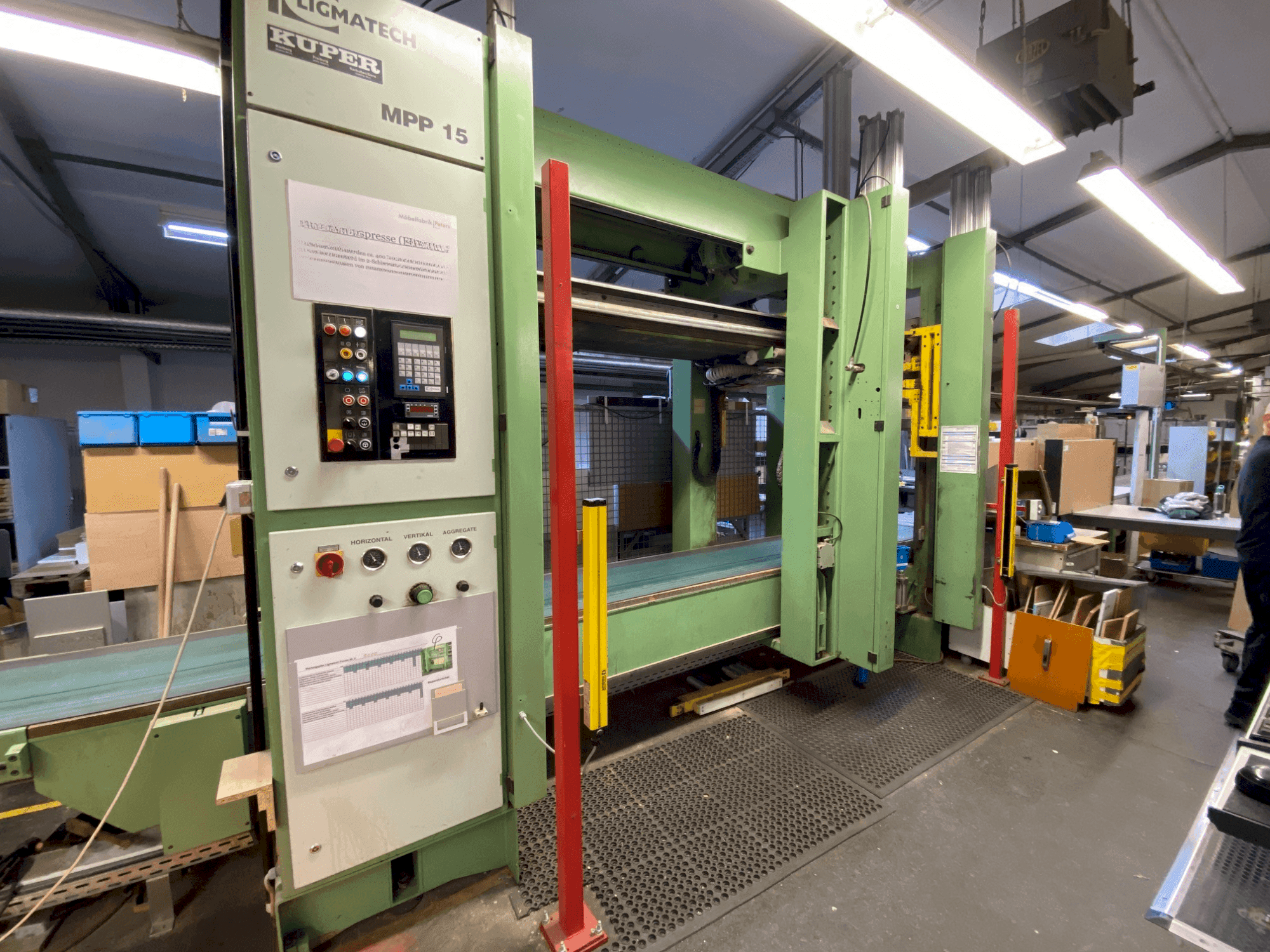

LIGMATECH - MPP 15DE-PRE-LIG-1998-00001

Additional equipment

• Photoelectric carcass measurement during infeed
• Automatic positioning of the horizontal pressure beam
• Adjustable pressing jaws for variable bottom and side heights
• Pneumatic pressing system with independently controlled vertical and horizontal pressure
• Extended infeed conveyor for pre-positioning

Machine Benefits

Technical Machine Benefits

• Transport speed: 8 to 37 m/min
• Pressing time: adjustable up to 999 seconds
• Working height: 500 mm
• Vertical: max. 17 kn
• Horizontal: max. 16 kn
• Operating voltage: 400 v, 50 hz
• Control voltage: 24 v dc (according to vde)
• Required room height: 3000 mm
• Air consumption: 120 nl per working cycle
• Total connected load: 3 kw

Extra Information

Workpiece Carcass Dimensions: Length: 300 mm (min) – 2300 mm (max) Height: 300 mm (min) – 1220 mm (max) Depth: 600 / 800 / 1000 mm (max) (depending on press type)
