➤ Used LINGI JIANZHONG BSG2613C For Sale | gindumac.com

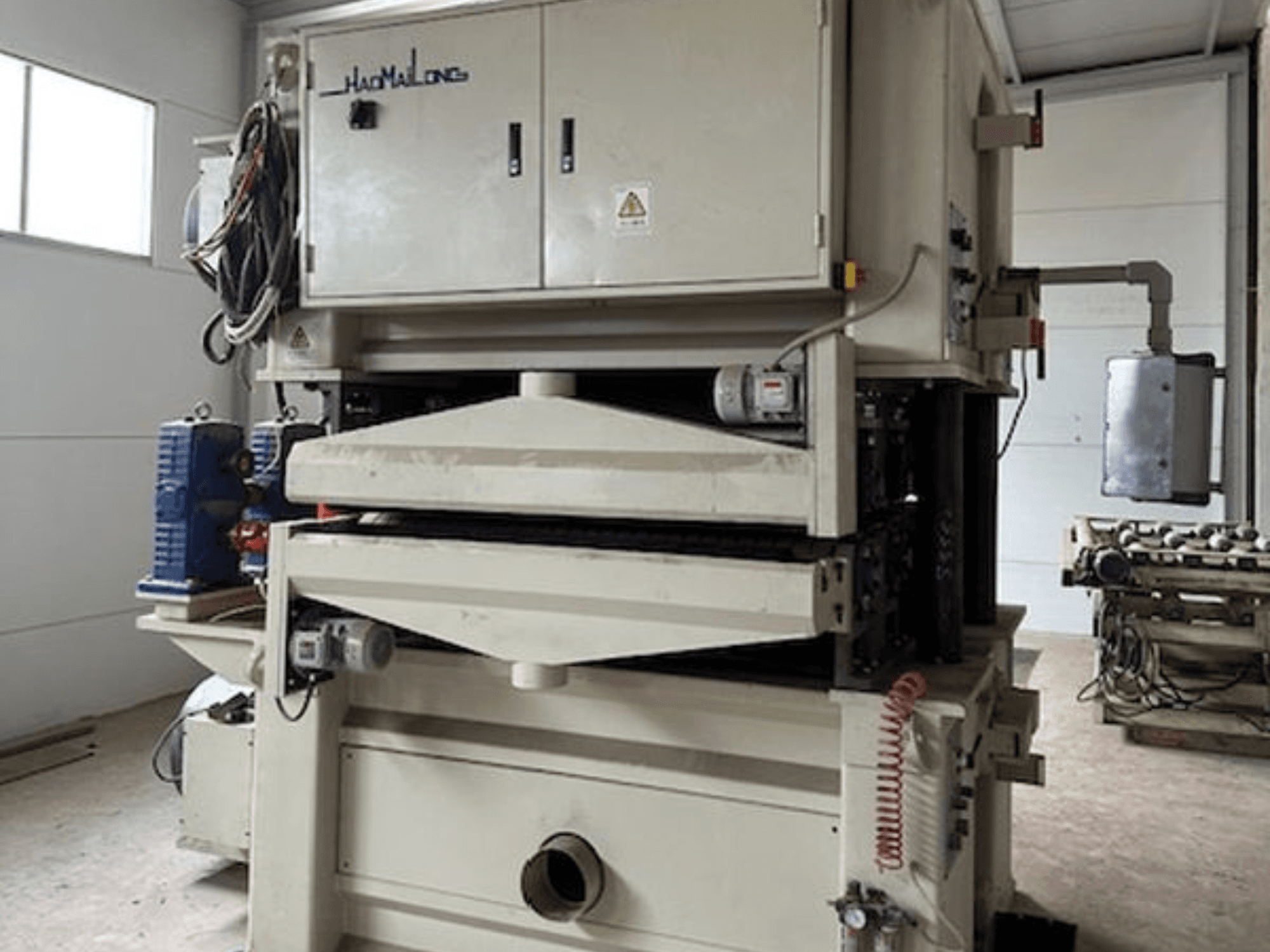

Belt sander manufactured in 2019. This Lingi Jianzhong BSG2613C features a maximum working width of 1300 mm and a processing thickness range of 5-80 mm. It includes a grinding belt dimension of 1350x2800 mm and operates at a speed of 31 m/s. If you are looking to get high-quality sanding capabilities, consider the Lingi Jianzhong BSG2613C machine we have for sale. Contact us for further details.

Overview

brand: LINGI JIANZHONG
year: 2019
MODEL: BSG2613C
application type: Sanding
Location: Poland
machine type: Belt Sander

Technical Information - LINGI JIANZHONG BSG2613C

Dimensions

Machine Height: 3000 mm
Machine Length: 3100 mm
Machine Weight: 14500 kg
Machine Width: 2100 mm

Technical Specification

Working Width: 1300 mm

Additional Information

Condition: Not rebuilt, without warranty
Technical specifications:
Processing thickness: 5–80 mm
- Minimum processing length: ≥ 780 mm
- Machining accuracy: ±0.08 mm
- Grinding belt dimensions: 1350 × 2800 mm
- Grinding belt speed: 31 m/s
- Roller diameter: 2 × Ø320 mm
- Total power: 165 kW
- Main motor power: 2 × 75 kW
- Feed motor: 11 kW
- Lift motor: 2 × 0.75 kW
- Brush motor: 2 × 0.75 kW
- Feed speed: 10–30 m/min
- Operating air pressure: 0.5–0.8 MPa
- Dust extraction requirement: 24,000 m³/h
- Voltage: 380 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
