LNS - Quick Load Servo 3DE-OTH-LNS-2017-00001

Name: LNS Quick Load Servo 3
Brand: LNS
SKU: DE-OTH-LNS-2017-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used LNS Quick Load Servo 3 For Sale | gindumac.com

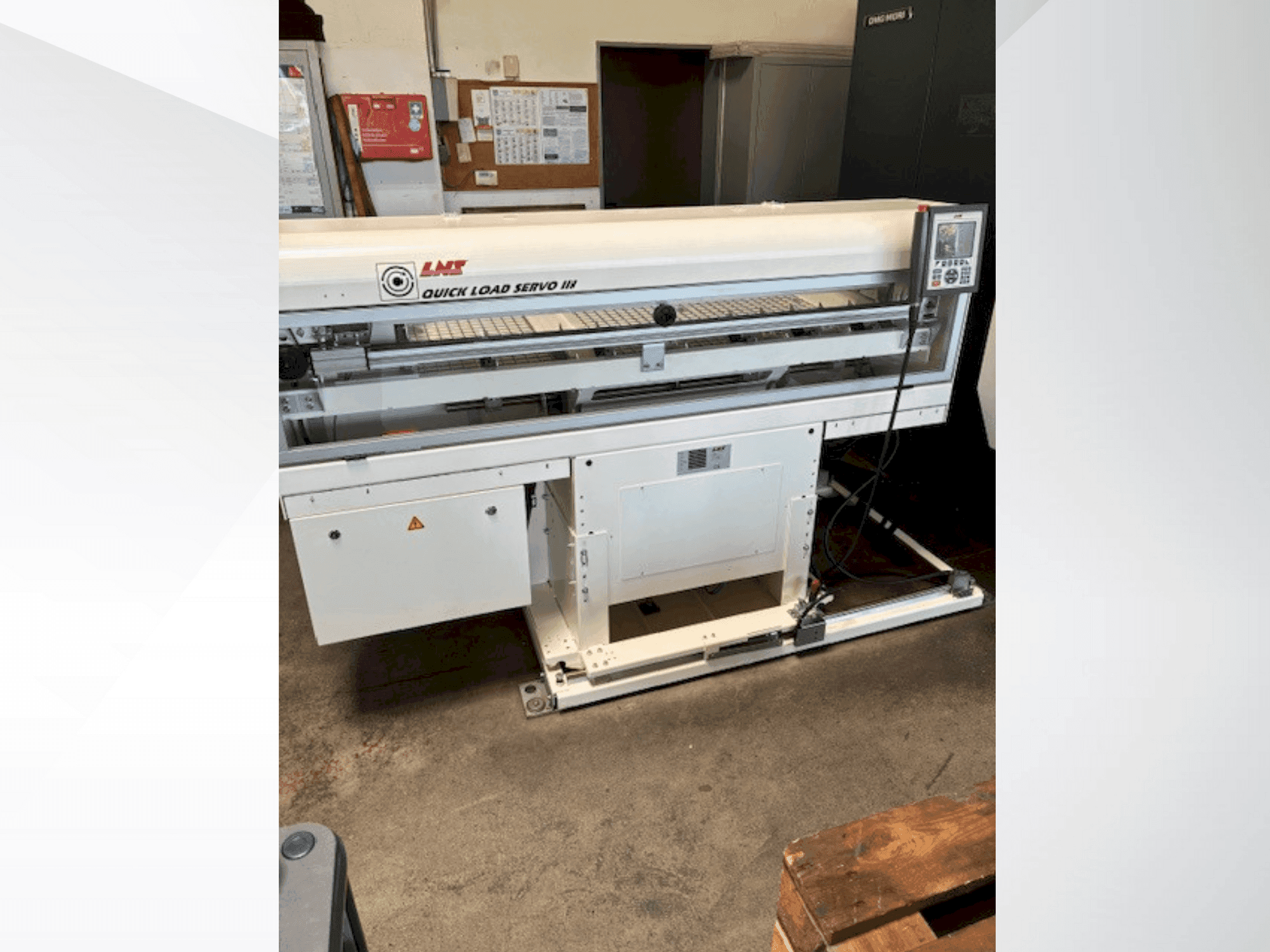

This LNS Quick Load Servo 3 was manufactured in 2017. It features a weight of 570 kg, dimensions of 2048 mm in length, 1486 mm in width, and an adjustable height between 1248 and 1748 mm. It supports a maximum bar diameter of 120 mm and a bar length up to 1600 mm. With a loading cycle time as low as 4 seconds, it's ideal for high-efficiency operations. Contact us for more information about this machine.

Overview

brand: LNS
year: 2017
MODEL: Quick Load Servo 3
application type: Other Automation Equipment
Location: Germany
machine type: Automation Equipment
availability: Immediately

Technical Information - LNS Quick Load Servo 3

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Imensions of machine (lxwxh): length 2048 mm, width 1486 mm, height 1248 - 1748 mm / weight: 570 kg
- - Longitudinal displacement: 600 mm
- - Min. Diameter: 6 mm / max. Diameter: 120 mm / min. Rod length: 300 mm / max. Bar length: 1600 mm / max. Bar weight: 67 kg/bar
- - Compressed air supply: 5 bar / compressed air consumption: 6 liters (per loading cycle) / supply voltage: 220 - 480 volts / 50 hz - 60 hz / max. Current: 1 a
- - Max. Feed force: 167 nm / max. Feed speed: > 100 m/min / duration of the loading cycle: 8 - 12 sec. / loading cycle time (short parts): 4 - 7 sec.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
