Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
LVD - DYNA-CELL DE-BEN-LVD-2021-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used LVD DYNA-CELL - Press For Sale | gindumac.com

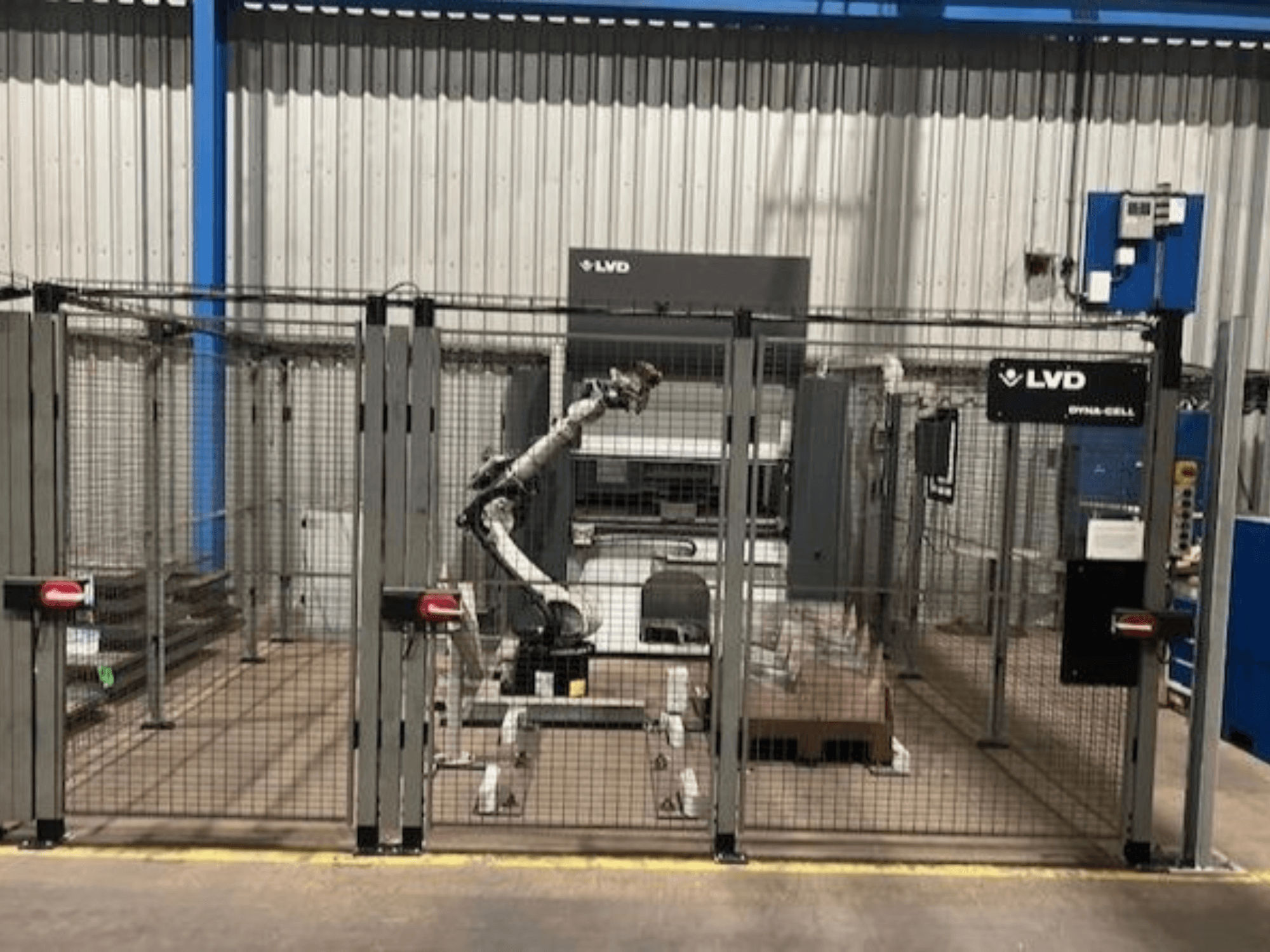

This 4-axis LVD DYNA-CELL press brake was manufactured in 2021, featuring a maximum pressing force of 40 tons and a working length of 1530 mm. If you are looking to get high quality bending capabilities consider the LVD DYNA-CELL machine we have for sale. Contact us for more information.
Overview
- brand: LVD
- year: 2021
- MODEL: DYNA-CELL
- production hours: 8000
- application type: Bending
- Location: Germany
- machine type: Press Brake
- control unit brand:
Technical Information - LVD DYNA-CELL
Movement
- Number of Axes: 4
Technical Specification
- Pressing Force: 392.27 Kn
Additional Information
Maximum pressing force: 40 tons
Working length: 1530 mm
Voltage 50-400
Electrical Plan IEC
Distance Between Uprights 1535mm
Stroke 200
Distance Table to Ram mm 400
Throat Depth mm 175
Closing Speed (50Hz) mm/s 100
Working Speed (50 Hz) 25
Return Speed (50Hz) mm/s 100
Motor (50Hz) kW 2x 4.2
Machine Weight kg 4750
Table 60
Centering Table Centering table 5.7 - 7.0
Tool Clamping System DP3090 Wila Style
Hydraulic Clamping DP3180 Hydraulic Clamping
Safety Standards DP3580 CE Certificate
Guarding Side and rear doors
Control System 15" Touch-B
Control Language TouchB, German
Backgauge X1X2 300 R100 Z1 Z2
Electrical Cabinet Cooling DP8510 Air conditioning
Robot Interface Dyna Cell Kuka Robot
Laser Easy-Form DP8302 Laser Easy-Form
Backgauge Finger Type DP5621 Robot finger
Lazersafe DP5320 Lazersafe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
