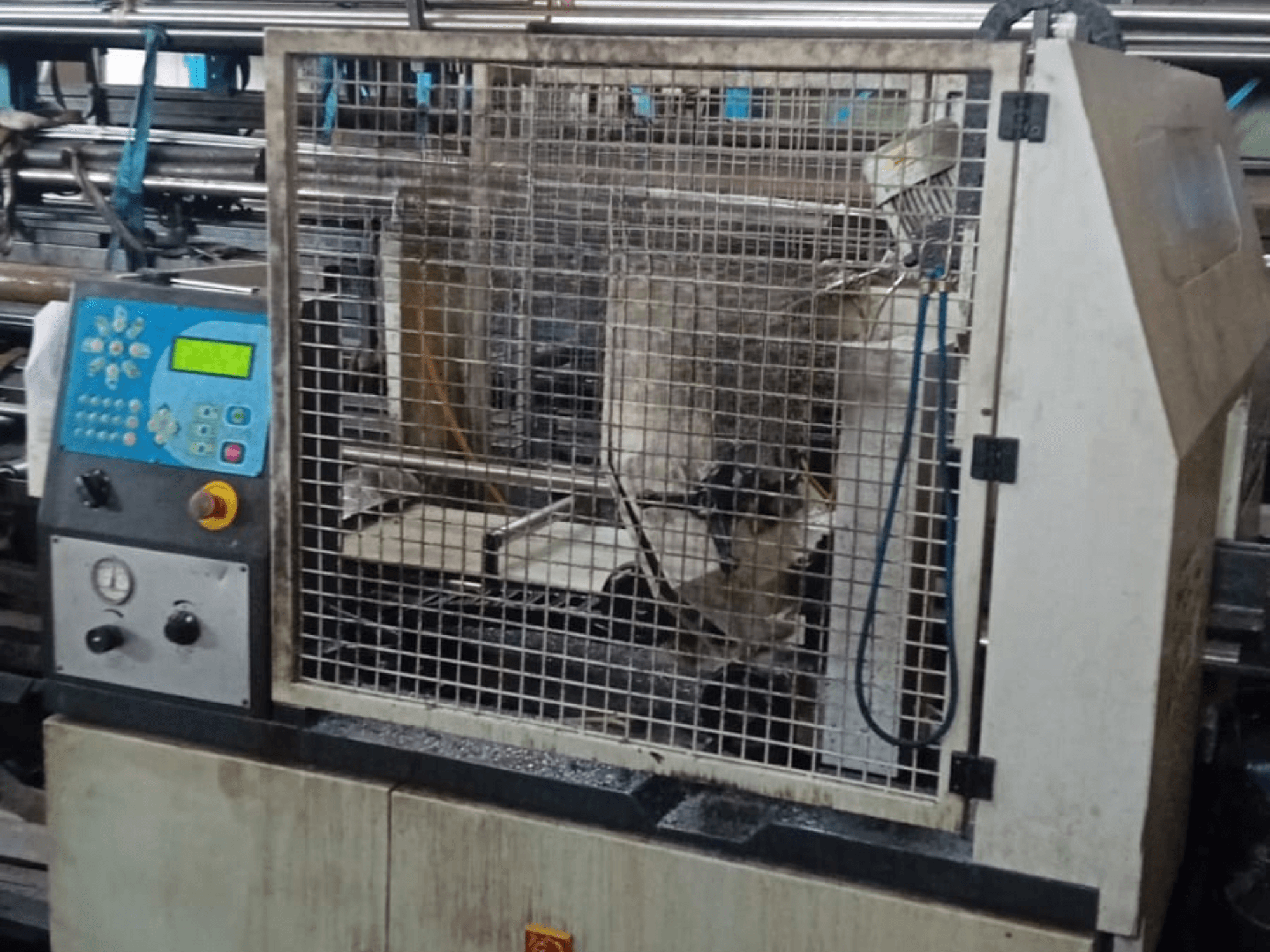

Metal Band Saw manufactured in 2014. This Macc 381 AV features fully automatic operation, a hydraulic clamping vice, and a coolant system. It has a cutting capacity for round material up to 280 mm and square material up to 290 x 290 mm. The machine includes a chip conveyor and a numerical control system for enhanced efficiency. If you are looking to get high-quality cutting capabilities, consider the Macc 381 AV machine we have for sale. Contact us for further details.
Overview
- brand: Macc
- year: 2014
- MODEL: 381 AV
- application type: Sawing
- Location: Italy
- machine type: Metal Band Saw
Technical Information - Macc 381 AV
Dimensions
- Machine Weight: 1060 kg
Technical Specification
- Cutting Speed: 77 m/min
Additional Information
Power supply: 3-phase
Main motor power: 0.9 / 1.6 kW
Main motor speed: 700 / 1420 rpm
Hydraulic oil pump motor power: 0.37 kW
Coolant pump power: 0.09 kW
Wheel diameter: 350 mm
Saw blade size: 3010 x 27 x 0.9 mm
Cutting thickness (kerf): 1.2 mm
Cutting angle: 0°
Max vice opening: 320 mm
Vice jaw height: 150 mm
Working table height: 850 mm
Coolant tank capacity: 50 litres
Cutting capacity:
Round: 280 mm
Square: 290 x 290 mm
Rectangular: 290 x 320 mm
Features:
Fully automatic operation
Hydraulic clamping vice
Hydraulic bow movement
Coolant system
Numerical control system MACC4
Blade tensioning system
Blade cleaning brush
Additional equipment
Chip conveyor (auger type)
