MAHR - MarSurf CD 140HU-MEA-MAH-2022-00001

Name: MAHR MarSurf CD 140
Brand: MAHR
SKU: HU-MEA-MAH-2022-00001
Price: 49000 EUR
Availability: InStock

49,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MAHR MarSurf CD 140 - CMM For Sale | gindumac.com

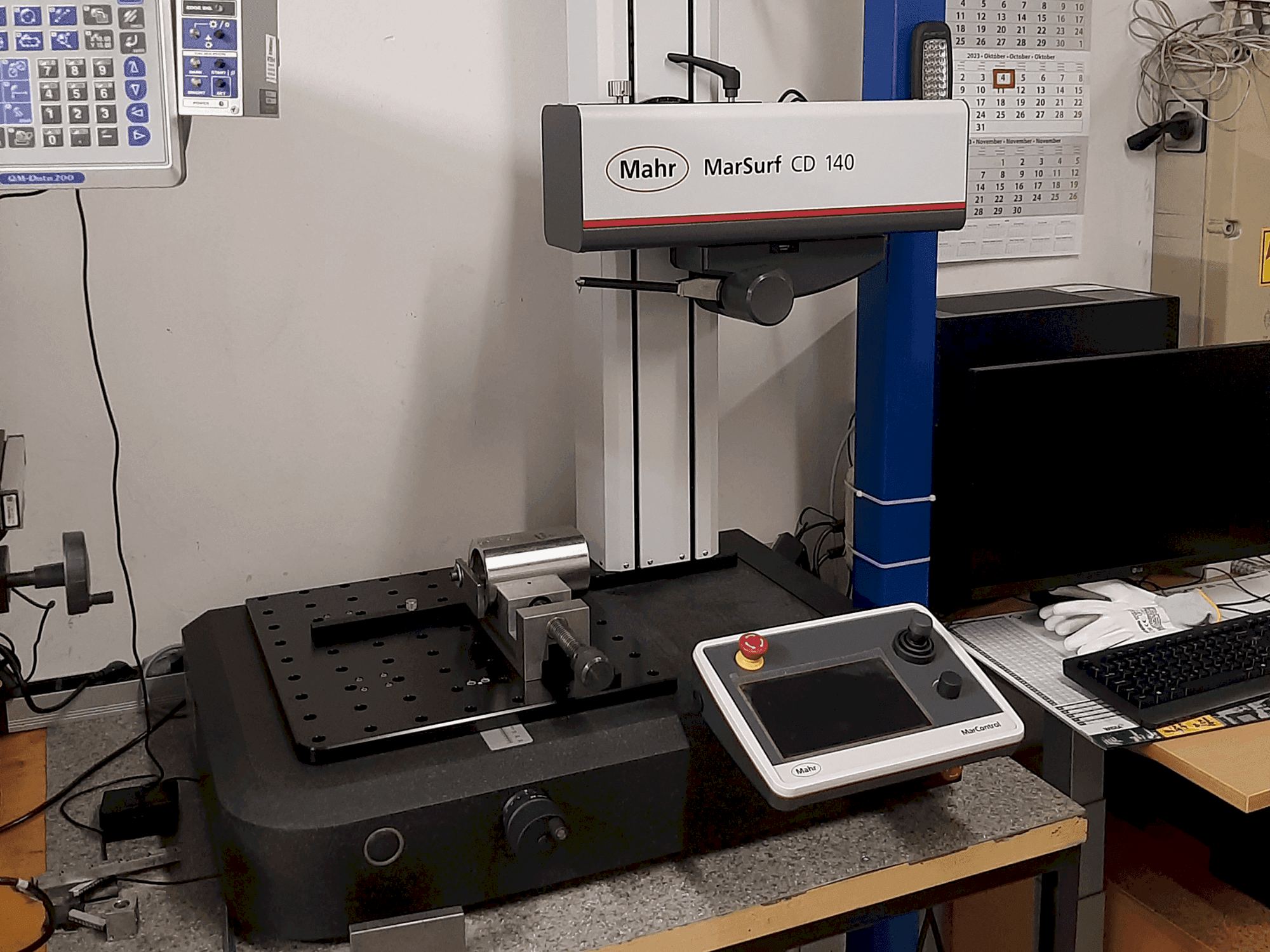

This 3-axis MAHR MarSurf CD 140 CMM machine was manufactured in 2022. It features a contour probe system with a resolution of up to 6 nm and a traversing length from 0.1 mm to 140 mm. The machine supports a workpiece weight of up to 90 kg and offers adjustable measuring forces from 4 mN to 30 mN. If you are looking to get high-quality contour measuring capabilities, consider the MAHR MarSurf CD 140 machine we have for sale. Contact us for more information.

Overview

brand: MAHR
year: 2022
MODEL: MarSurf CD 140
application type: Measuring
Location: Hungary
machine type: Coordinate Measuring Machine (CMM)

Technical Information - MAHR MarSurf CD 140

General Data

Machine weight: 200 kg

Main drive

Number of axis: 3

Workpiece

Workpiece weight: 90 kg

Additional Information

Machine Benefits

Technical Machine Benefits

X-axis: start of traversing length 0. 1 mm, end of traversing length 140. 0 mm positioning speed x-axis: 0. 02 - 200 mm/s
Z-axis: positioning speed z-axis: 0. 02 - 50 mm/s
Resolution max. 6 nm (with 210 mm probe arm)
Guide deviation 0. 35 μm / 60 mm, 0. 40 μm / 140 mm
Measuring force (n) 4 mn to 30 mn, adjustable via software
Measuring speed 0. 02 mm/s to 10 mm/s
Probe contour probe system
Probe arm length 210 mm; 350 mm; 490 mm
Measuring range mm 70 mm with probe arm 350 mm long, max. 100 mm with 490 mm long probe arm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
