MARKFORGED - Metal XNO-3DP-MAR-2018-00001

Machine Benefits

Qualitative Machine Benefits

• Printing media
• Metal fff
• Closed cell infill (triangular) or solid parts
• Mage of wash-1 external dimensions: 609 x 685 x 1,067 mm
• Print bed
• Washing time: 12-72 hrs typical
• Wash-1 i weight: 136 kg (300 lbs)
• Working volume: 356 x 254 x 203 mm
• Printing process
• Wash & sinter

Technical Machine Benefits

• A wash-1 washing station for debinding
• In addition a gas handling system.

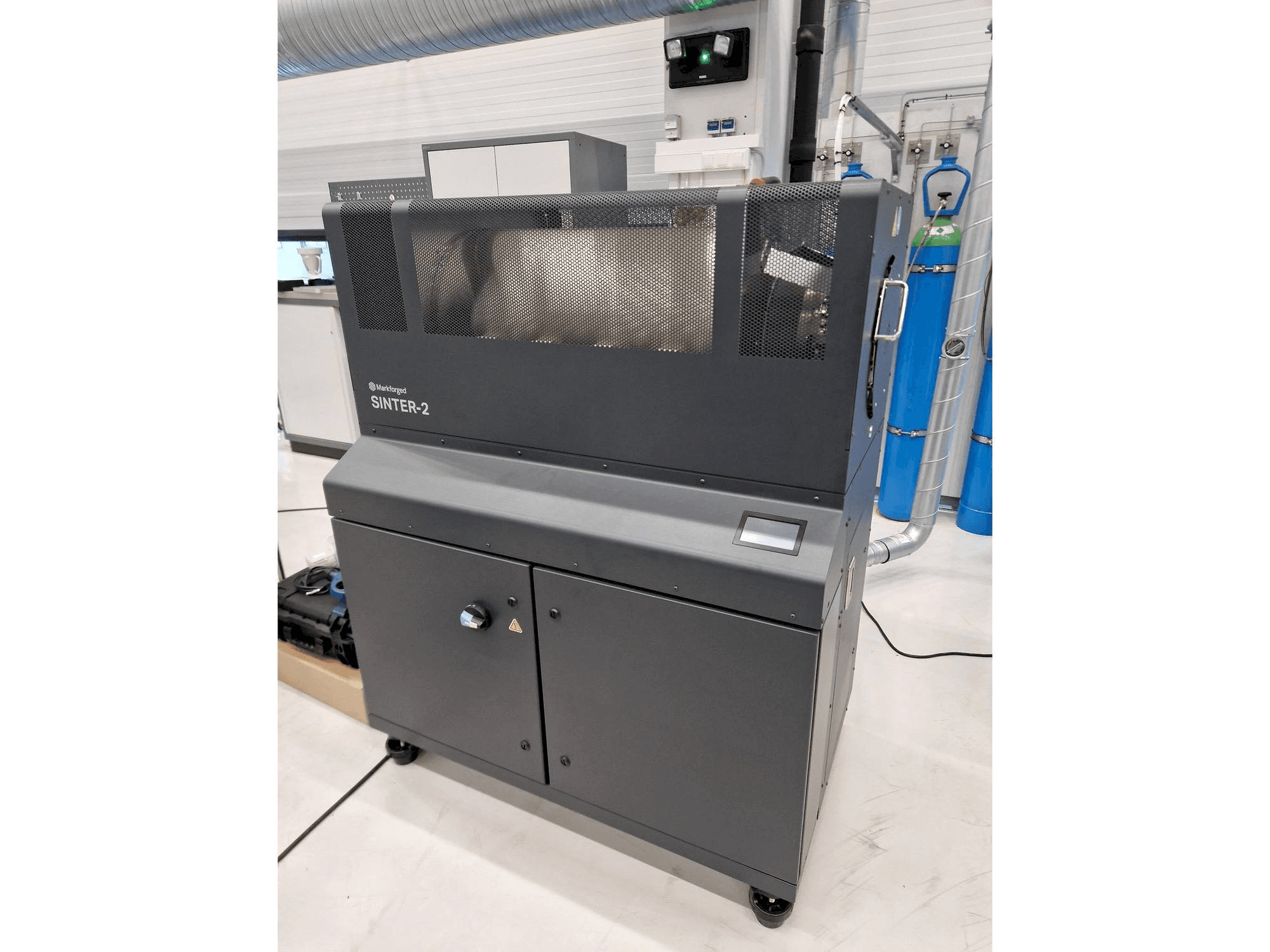

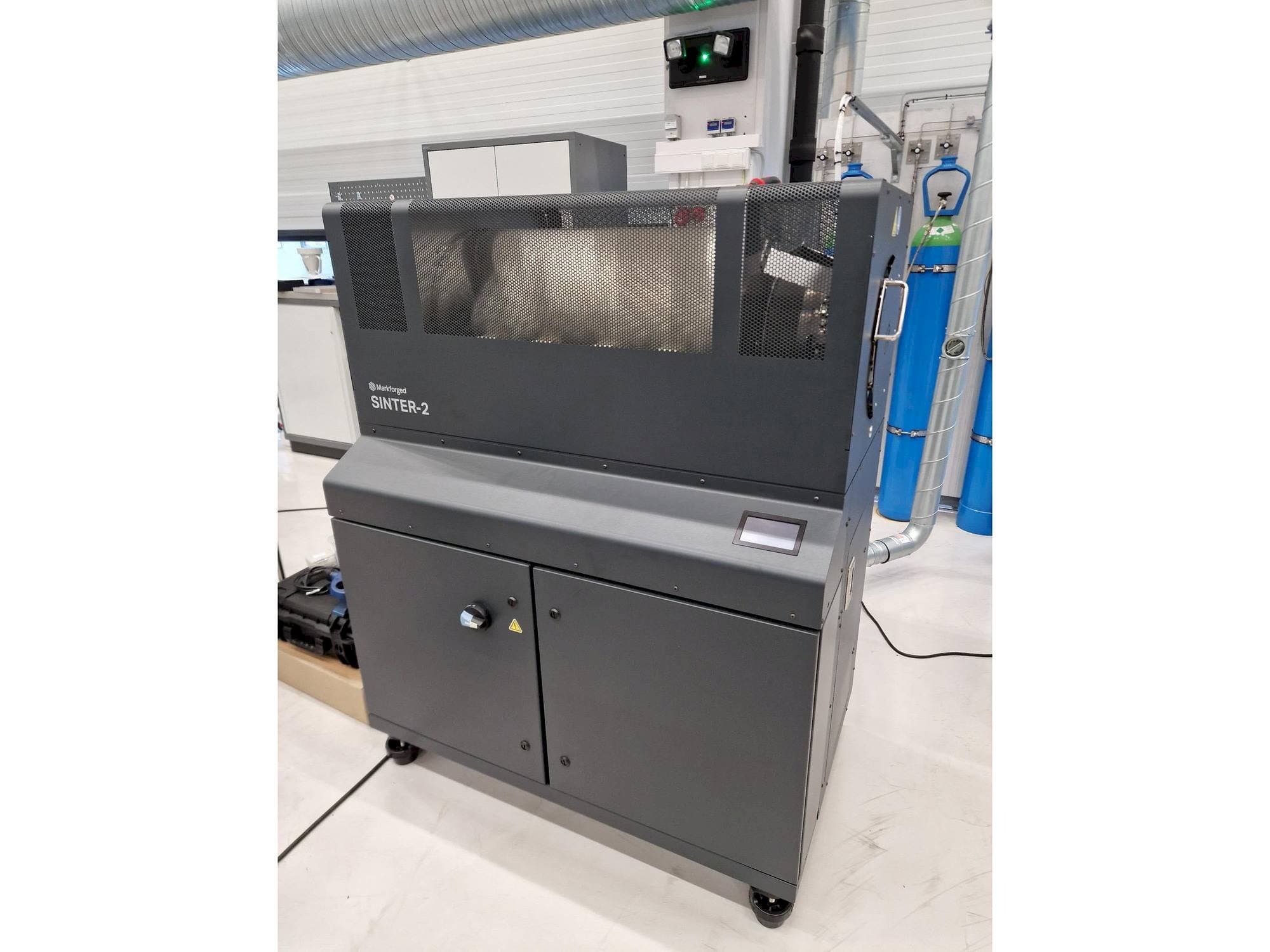

• A sinter-2 for sintering. The sinter-2 is the larger sintering oven from markforged.
• The sintering oven has run 7 times, and the printer has rundt 20-30 builds.
• External dimensions: 1,200 x 700 x 1,500 mm
• Bound powder filament
• 85 μm - 170 μm (post-sinter)
• Z layer resolution
• Heated, auto leveling, replaceable print sheets
• Internal part geometry

Extra Information

Solvent: Opteon SF-79 Sinter-2 image of Sinter-2 Weight: 350 kg (772 lbs) Run Time: 17-31 hours Sintering Volume: 18,356 cu cm Peak Internal Temp.: 1,300° C / 2,372° F
