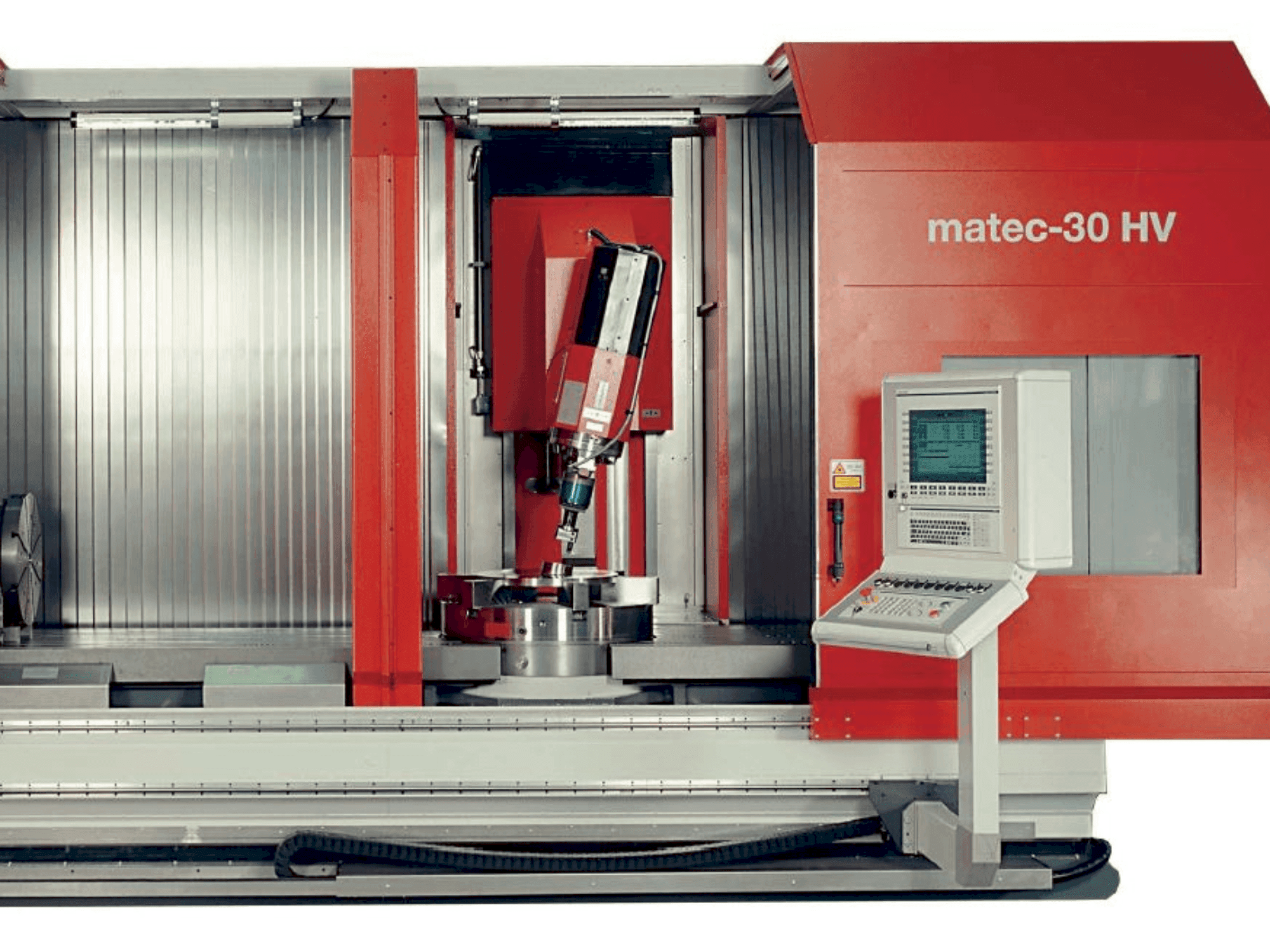

This 5-axis Matec 30 HV vertical machining center was manufactured in 2012. It features a large working area with X-axis at 4000 mm, Y-axis at 1000 mm, and Z-axis at 1100 mm. Equipped with a Rexroth IndraMotion MTX control system, SK40 tool holder, and a speed range up to 9000 rpm. Includes a 36-position tool magazine, full workspace enclosure, and chip conveyor. If you are looking to get high-quality milling capabilities consider the Matec 30 HV machine we have for sale. Contact us for more information.
Overview
- brand: Matec
- year: 2012
- MODEL: 30 HV
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: BOSCH
Technical Information - Matec 30 HV
Control Unit
- Brand: BOSCH
- Model: IndraMotion MTX
Main drive
- Spindle speed range: 20 to 9000 1/MIN
- Spindle motor power: 11 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 4000 mm
- Y-AXIS Movement: 1000 mm
Tools
- Number of stations: 36
- Type of tool holder: SK40
Media
- Chip conveyor: Yes
Additional Equipment
- - Full workspace enclosure with top cover
- - Harmonic protection with steel lamellas
- - Direct path measuring system for X, Y, and Z axes
- - Chip conveyor
- - Coolant spray gun
- - Central oil lubrication system
- - Four-point workspace lighting
- - Hydraulic clamping system
- - Clamping Pressure: Max pressure 240 bar
- - Oil Tank: 100 liters, including oil cooler
Additional Information
- Technical Machine Benefits:
- - Z-axis horizontal: 1100 mm z-axis vertical: 1000 mm
- - Maximum milling load: 1200 kg (central load)
- - Special motor spindle: variable bearing preload
- - Max drilling and milling speed: 12000 rpm
- - Sliding unit mounted on b-axis for main spindle
- - Partitions for system with two workstations Automatic safety doors Adapter plate 1000 mm, load capacity up to 2.5 tons Compressed air for external nozzles controlled via M-function in program Table 2 CNC rotary tables 630/25 with direct drive Max Rotation Speed: 25 rpm Planar Table Diameter: 630 mm Drive Power: 2.88 kW at 40% ED, 1.57 kW at 100% ED Torque: 1100 Nm at 40% ED, 600 Nm at 100% ED Tangential Torque with Clamp: 3000 Nm Tools Tool Holder: SK40 36 Tool Positions Max Tool Change Time: 10 seconds Tool System: 6-position moving tool magazine Tool Breakage Control: Laser measuring device
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
