Matsuura H.PLUS-405
Matsuura - H.PLUS-405
2003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Matsuura H.PLUS-405 Machining Center

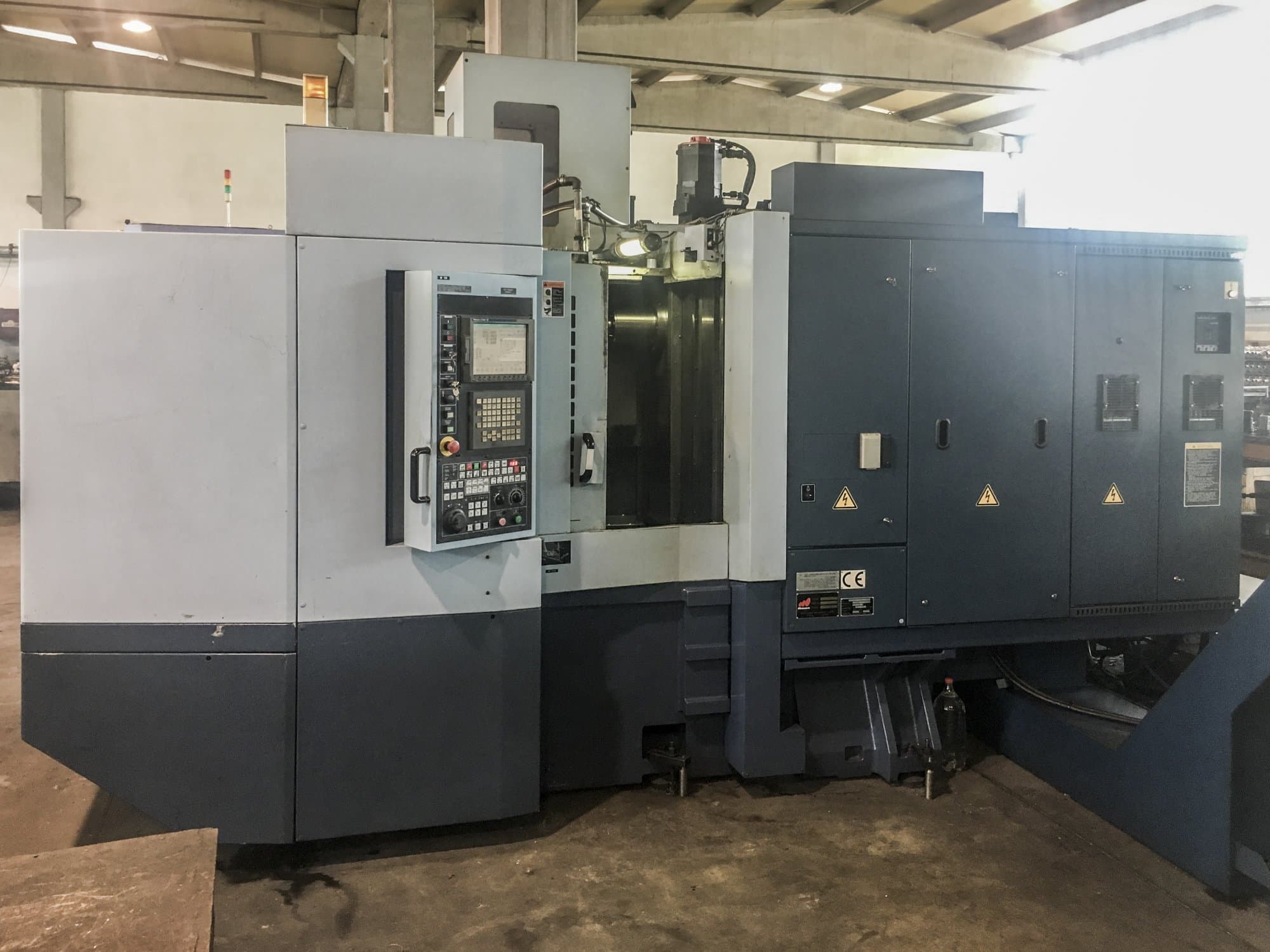

This 2003 Matsuura H.PLUS-405 Machining Center from Japan has been operative for 14990 production hours and is equipped with a FANUC G-Tech 16i Control unit. This model with full 4-axis indexing has mainly worked with steel workpieces, producing pump components for the automotive industry of heavy weight vehicles. An additional chip conveyor is included in the delivery.
Overview
- brand: Matsuura
- year: 2003
- MODEL: H.PLUS-405
- production hours: 14990
- application type: Milling
- Location: Turkey
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: TR-MIL-MAT-2003-00001
Technical Information
General Data
- Measurements width: 6740 mm
- Measurements depth: 2792 mm
Control Unit
- Brand: FANUC
- Model: G-Tech 16i
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
- Spindle motor power: 30 hp
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 500 mm
- Outer width: 500 mm
- Min distance between vertical spindle and table: 80 mm
- Max distance between vertical spindle and table: 680 mm
Media
- Main electronic connection: 415 V / 50 Hz
- Power consumption: 51 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
