➤ Used Matsuura H.Plus 405 For Sale | gindumac.com

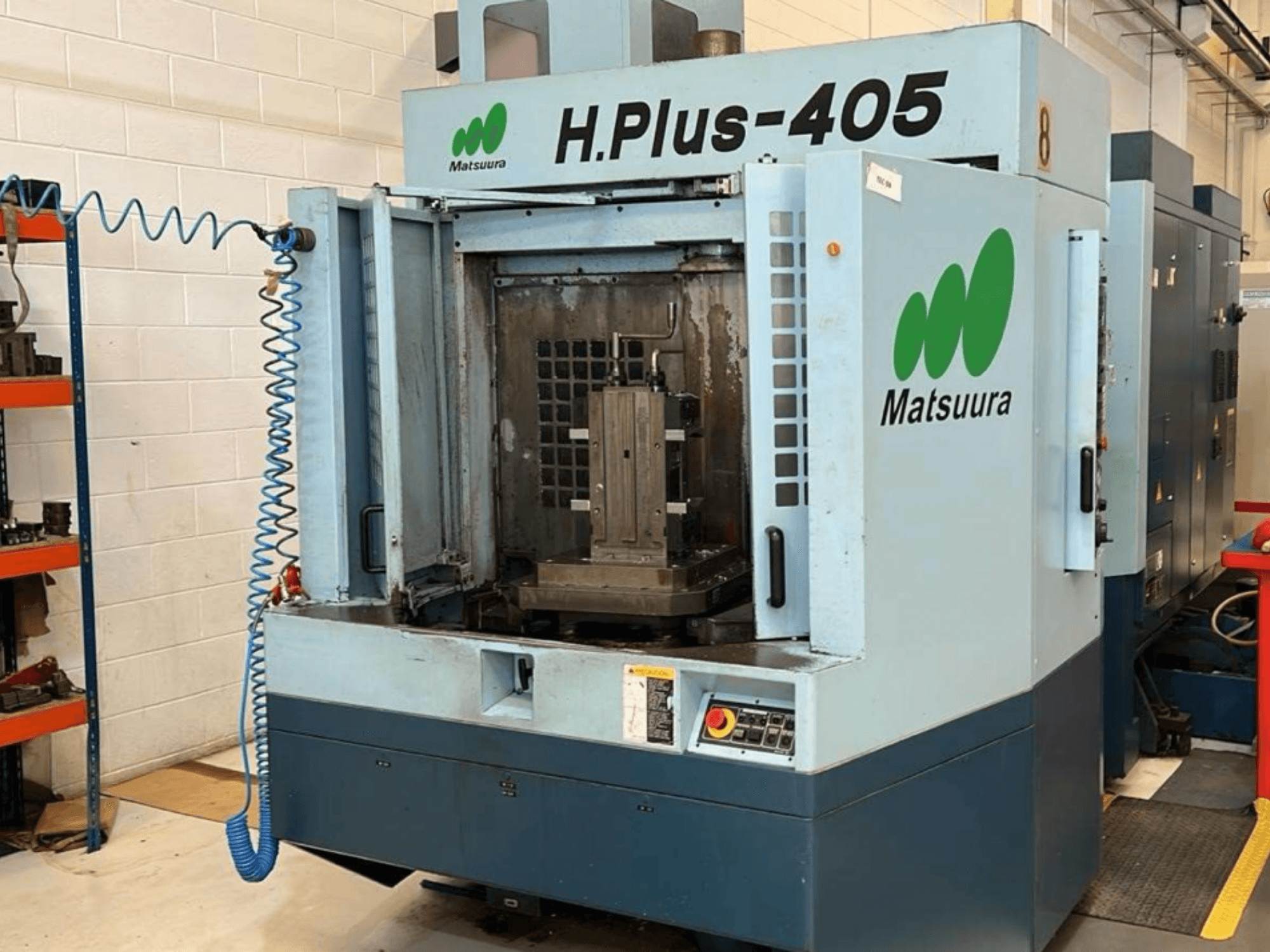

This 3-axis Matsuura H.Plus 405 was manufactured in 2005. It features a pallet working surface of 500 x 500 mm and a maximum load capacity of 400 kg. The machine offers an impressive X, Y, and Z-axis travel of 600 mm each, along with a spindle speed range of 40 - 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Matsuura H.Plus 405 horizontal machining centre we have for sale. Contact us for further details.

Overview

brand: Matsuura
year: 2005
MODEL: H.Plus 405
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre

Technical Information - Matsuura H.Plus 405

Dimensions

Table Load: 400 kg

Movement

Number of Axes: 3
X-axis Travel: 600 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Max. Tool Weight: 10 kg
Spindle Speed: 12000 RPM

Additional Information

Pallet working surface: 500 x 500 mm
Max. workpiece size: Ø 650 x 750 mm
Spindle bearing inner diameter: 80 mm
Number of tool slots: 51
Max. tool diameter: 90 mm
Max. tool length: 350 mm
Rapid traverse rate: 50 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
