- Matsuura Lumex Avance-25 3D Printer

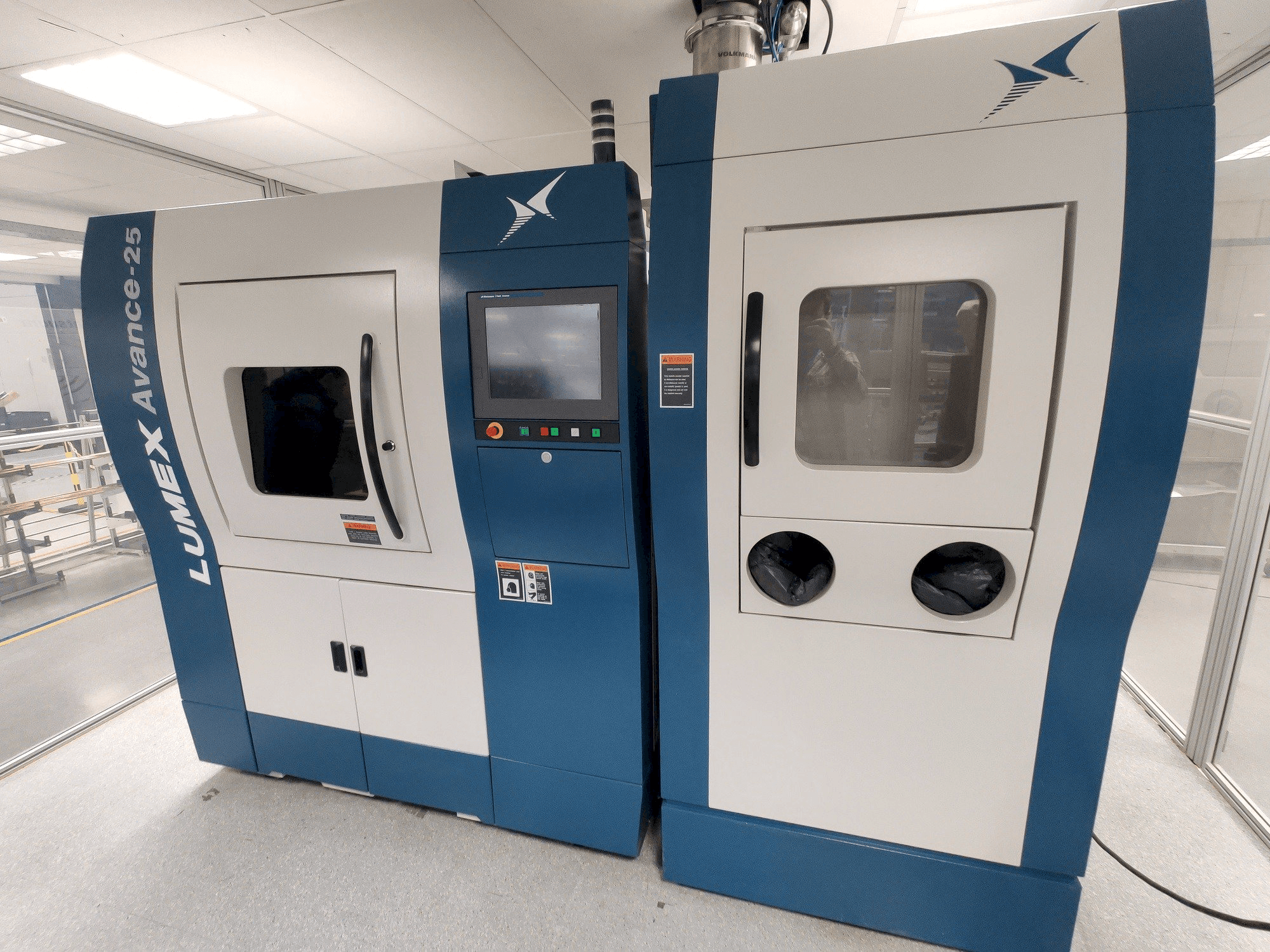

This Matsuura Lumex Avance-25 3D Printer was manufactured in the year 2018 in Japan. It is equipped with a Fanuc 31i Model B control unit and has 3 axis. The machine has a spindle speed of 450-45000 rpm.
Overview
- brand: Matsuura
- year: 2018
- MODEL: Lumex Avance-25
- application type: 3D Printing
- Location: Netherlands
- machine type: 3D Printer
- availability: Immediately
- control unit brand: Fanuc
Technical Information - Matsuura Lumex Avance-25
Control Unit
- Brand: Fanuc
- Model: 31i Model B
Main drive
- Spindle speed range: 450-45000 1/MIN
- Spindle bore: 25 mm
- Number of axis: 3
Movement
- X-AXIS Movement: 260 mm
- Y-AXIS Movement: 260 mm
- Z-AXIS Movement: 100 mm
Tools
- Slots in storage: 20
- Max weight: 0,5 kg
- Max tool diameter: 10 mm
Additional Information
- Technical Machine Benefits:
- - Oscillator output range: 100~1000 w
- - Wavelength: 1070±5 nm
- - Diameter of laser beam at build area: 0. 1~0. 6 mm
- - Laser wavelength: 1070±10 nm
- - Maximum laser power: 400 w
- - Exposure speed: up to 5100 mm/s
- - Repeatability, scanner position (@ table surface): ±20 μm
- - Oil cooler tank capacity: 7 l
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
