Matsuura - MX-520

2017

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

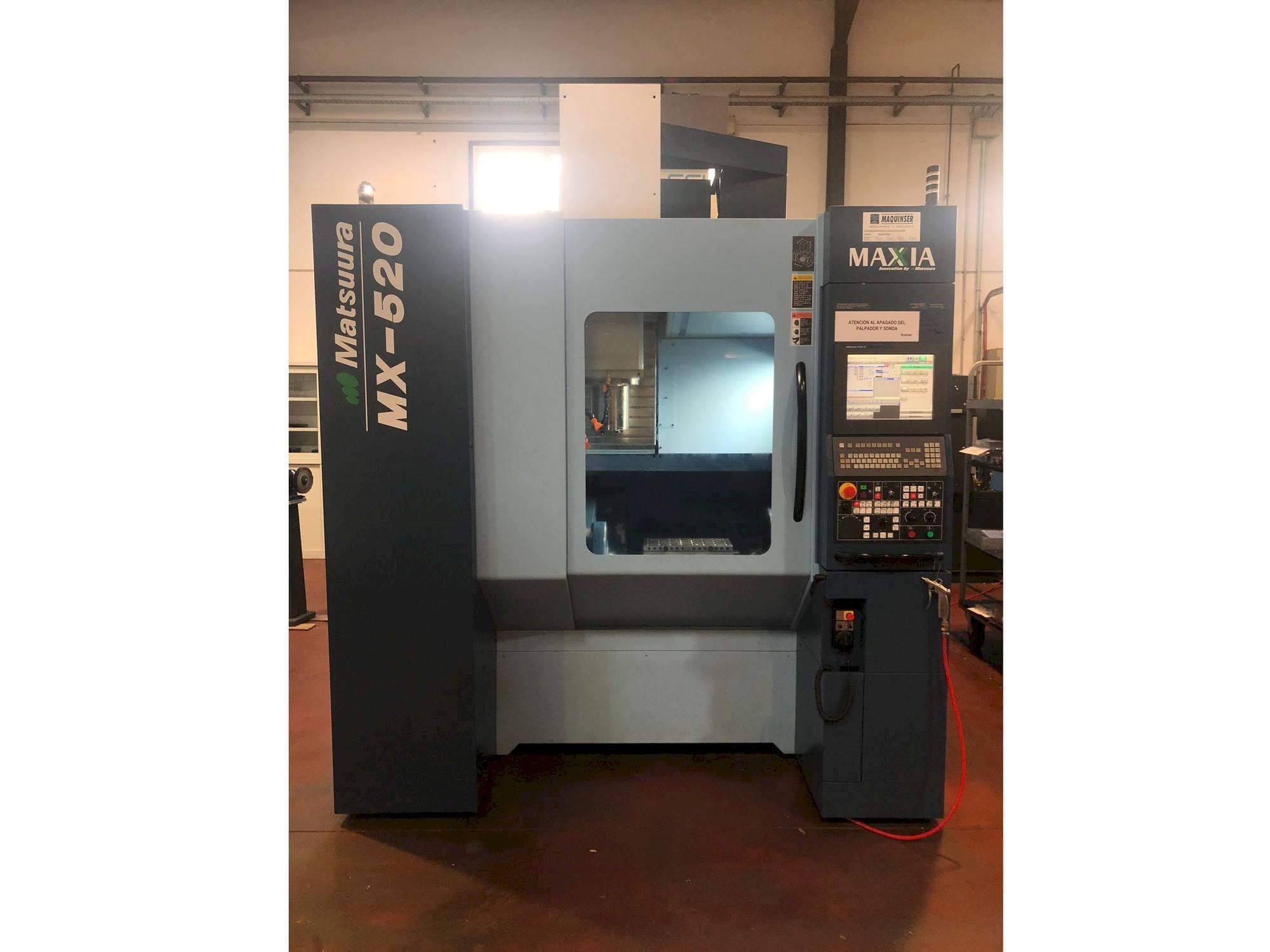

This Matsuura MX-520 Vertical Machining Center was built in the year 2017. It has a production history of only 4525 working hours. This 5 axis machine is equipped with a Matsuura G-Tech 31i control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several options as 8 sets of extra M function and 3 colour patrol lights R,Y,G. It is in a very good status.

Overview

brand: Matsuura
year: 2017
MODEL: MX-520
production hours: 4525
application type: Milling
Location: Spain
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Matsuura
GINDUMAC ID: ES-MIL-MAT-2017-00001

Technical Information

General Data

Machine weight: 8850 kg

Control Unit

Brand: Matsuura
Model: G-Tech 31i

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece drm: 500 mm
Workpiece x: 520 mm
Workpiece y: 350 mm
Workpiece weight: 250 kg

Tools

Slots in storage: 60
Max weight: 10 kg
Max tool diameter: 150 mm
Max tool length: 300 mm
Type of tool holder: BT40

Additional Equipment

- Signal high speed skip.
- 8 sets of extra M function.
- 3 colour patrol light R,Y,G
- Inner worm type puller
- Movable manual pulse generator
- X,Y,Z OPTICAL RULERS
- EZ-5 5-axis re-levelling gauge, including ball
- Part measuring probe and BLUM mechanical tool gauge.
- Raised rear chip extractor
- Transformer / Lang table not included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power increased torque motor 12. 000 rpm 167 nm
- - Table diam. 500 mm
- - Blowing to piece
- - Spindle load monitoring function
- - Data server 1gb
- - Drill through tool 20 bar
- - Preparation for installation of fume extraction system.
- - Cnc fanuc g-tech equipped with iz1-30 nf operated through: aicc ii intelligent machining contour control; optimal torque acceleration / deceleration.
- - Tcpc tool centre point control (5-axis cutting) g43. 4/g49; inclined plane work command g53. 1/g68. 2/g69; work preparation error compensation g54. 4
- - Tool position control by tool centre control; compensation of 3 d cutting g41. 2/g42. 2/g41. 3; feed time reversal g93
Qualitative Machine Benefits:
- - Very good status
- - Little working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
