➤ Used MAYER AL160 - 2006 - Saw For Sale | gindumac.com

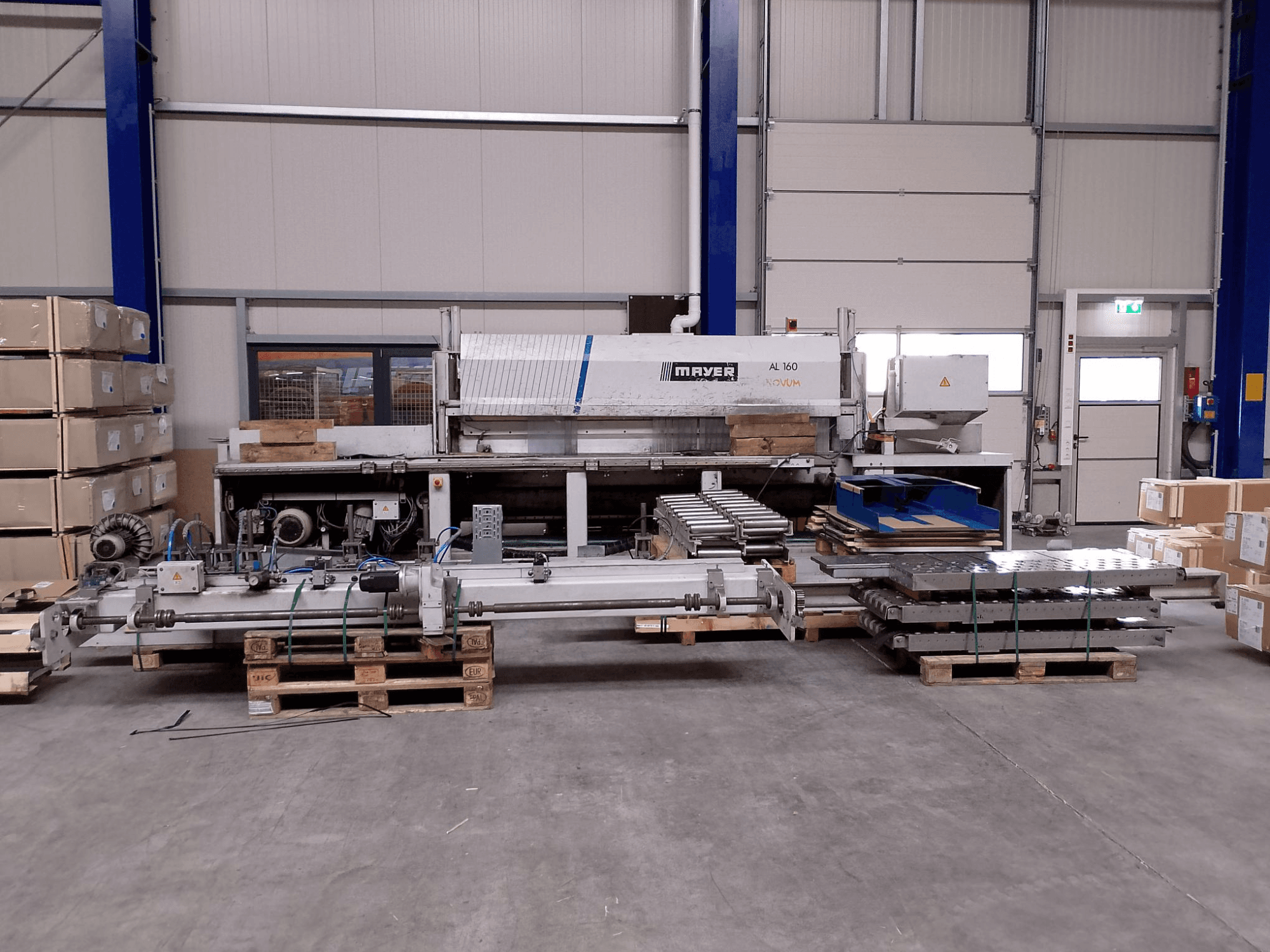

Panel saw manufactured in 2006. This MAYER AL160 features a saw blade diameter of 650 mm and a maximum cutting width of 3200 mm x 3200 mm. It has a main saw motor power of 35 kW and offers variable forward speeds for both the saw aggregate and infeed. If you are looking to get high-quality panel cutting capabilities, consider the MAYER AL160 machine we have for sale. Contact us for further details.

Overview

brand: MAYER
year: 2006
MODEL: AL160
production hours: 80773
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw

Technical Information - MAYER AL160

Dimensions

Machine Height: 2400 mm

Technical Specification

Max. Cutting Length: 3200 mm

Additional Information

- Main Saw Motor Power: 35 kW

- Saw Blade Diameter: 650 mm

- Package Clamps / Collets: 210 mm maximum

- Saw Aggregate Forward Speed: 0.2 - 60 m/min

- Saw Aggregate Return Speed: 60 m/min

- Infeed Forward Speed: 10 m/min

- Infeed Return Speed: 20 m/min

- Extraction Connections: 1 x 140 mm, 1 x 160 mm

- Working Height: 1100 mm

- Installation Dimensions: approx. 6280 mm (W) x 6855 mm (L)

- Cutting Width/Length: 3200 mm x 3200 mm

- Compressed Air Volume: 720 Nl/min

- Operating Pressure: min. 5 bar, max. 6 bar

- Component Condition Notes: Requires repair/adjustment on 3 package clamps, dust protection curtain, and cutting lips at the saw gap

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
