Mazak - INTEGREX 200 YSI-TUR-MAZ-2000-00002

Name: Mazak INTEGREX 200 Y
Brand: Mazak
SKU: SI-TUR-MAZ-2000-00002
Price: 24000 EUR
Availability: InStock

24,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak INTEGREX 200 Y For Sale | gindumac.com

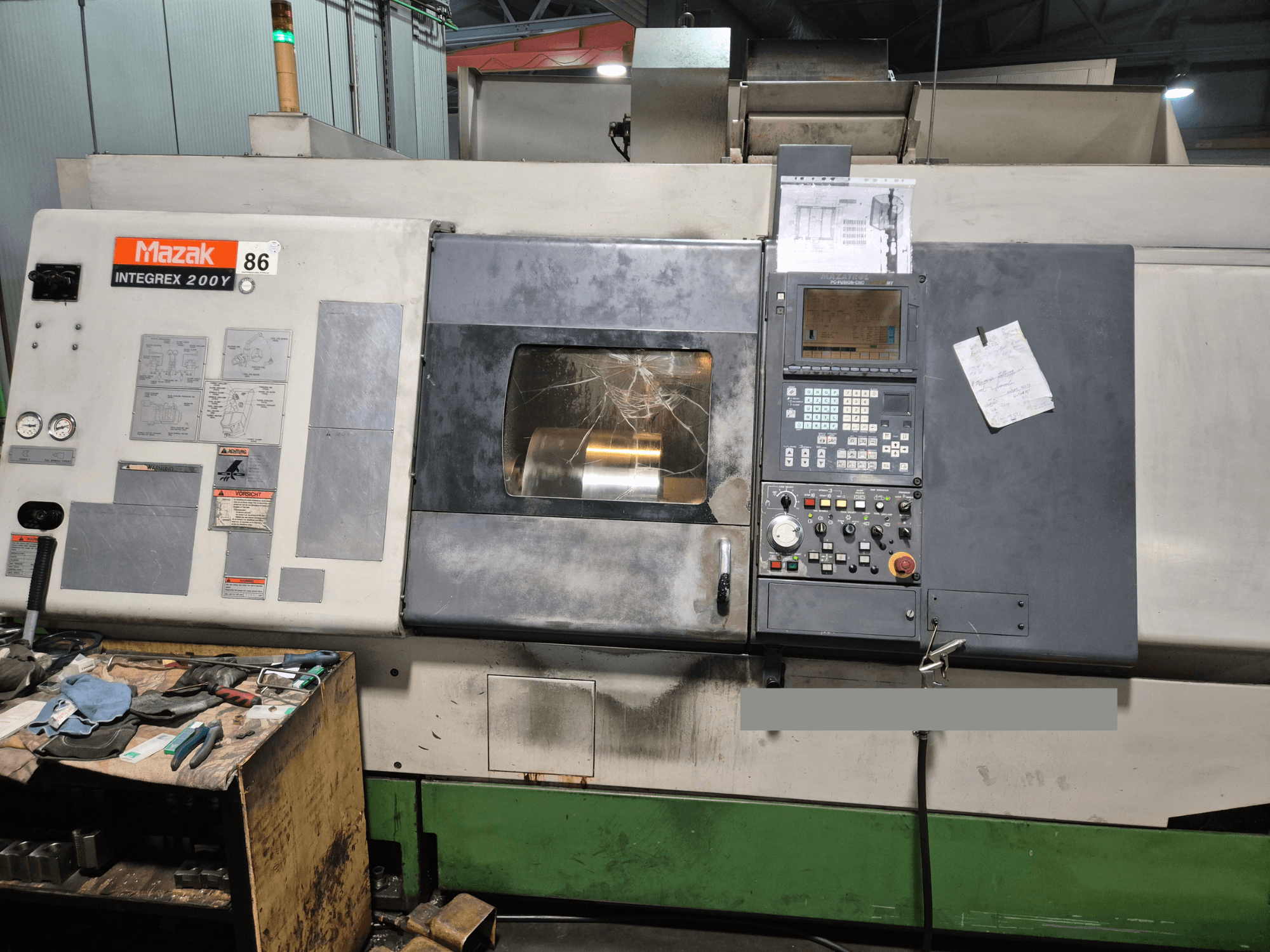

This 4-axis Mazak INTEGREX 200 Y was manufactured in 2000. It features a maximum turning diameter of 540 mm, a swing diameter of 540 mm, and a bar diameter capacity of 51 mm. The machine supports a workpiece weight up to 150 kg and offers a spindle speed range up to 5,000 rpm. It includes a Mazak KM 63 quick change tool system with 20 slots. If you are looking to get high-quality turning capabilities, consider the Mazak INTEGREX 200 Y machine we have for sale. Contact us for more information.

Overview

brand: Mazak
year: 2000
MODEL: INTEGREX 200 Y
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak INTEGREX 200 Y

Control Unit

Control Brand: MAZATROL

Dimensions

Machine Depth: 3485 mm
Machine Weight: 7500 kg

Movement

Number of Axes: 4
X-axis Travel: 530 mm
Y-axis Travel: 70 mm
Z-axis Travel: 1065 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 5000 RPM

Additional Information

Max swing diameter: 540 mm
Max turning diameter: 540 mm
Max turning diameter over slide: 520 mm
Max bar capacity: 51 mm
Workpiece clamping capacity: 100 kg
Shaft workpiece capacity: 150 kg
Center height: 1020 mm

Main spindle
- Max torque: 349 Nm
- Spindle nose: A2-6
- Chuck diameter: 210 mm
C-axis
- Indexing: 0–360° with 0.001° resolution
- Max speed: 400 rpm (min⁻¹)
- Feed range: 1–2,000 deg/min
Driven tools (live tooling)
- Max torque: 62 Nm
- Speed range: 15–6,000 rpm
Tooling system / turret
- Tool holder system: Mazak KM63 quick-change (fixed tools)
- Suitable for stationary and powered tools
- Tool-to-tool change time (step 1): approx. 1.3 s
Tailstock
- Quill (pen) stroke: 140 mm
Power and utilities
- Connected load: 43 kVA
- Operating voltage: 400 V / 50 Hz
- Pneumatic supply: 5 bar, 300 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
