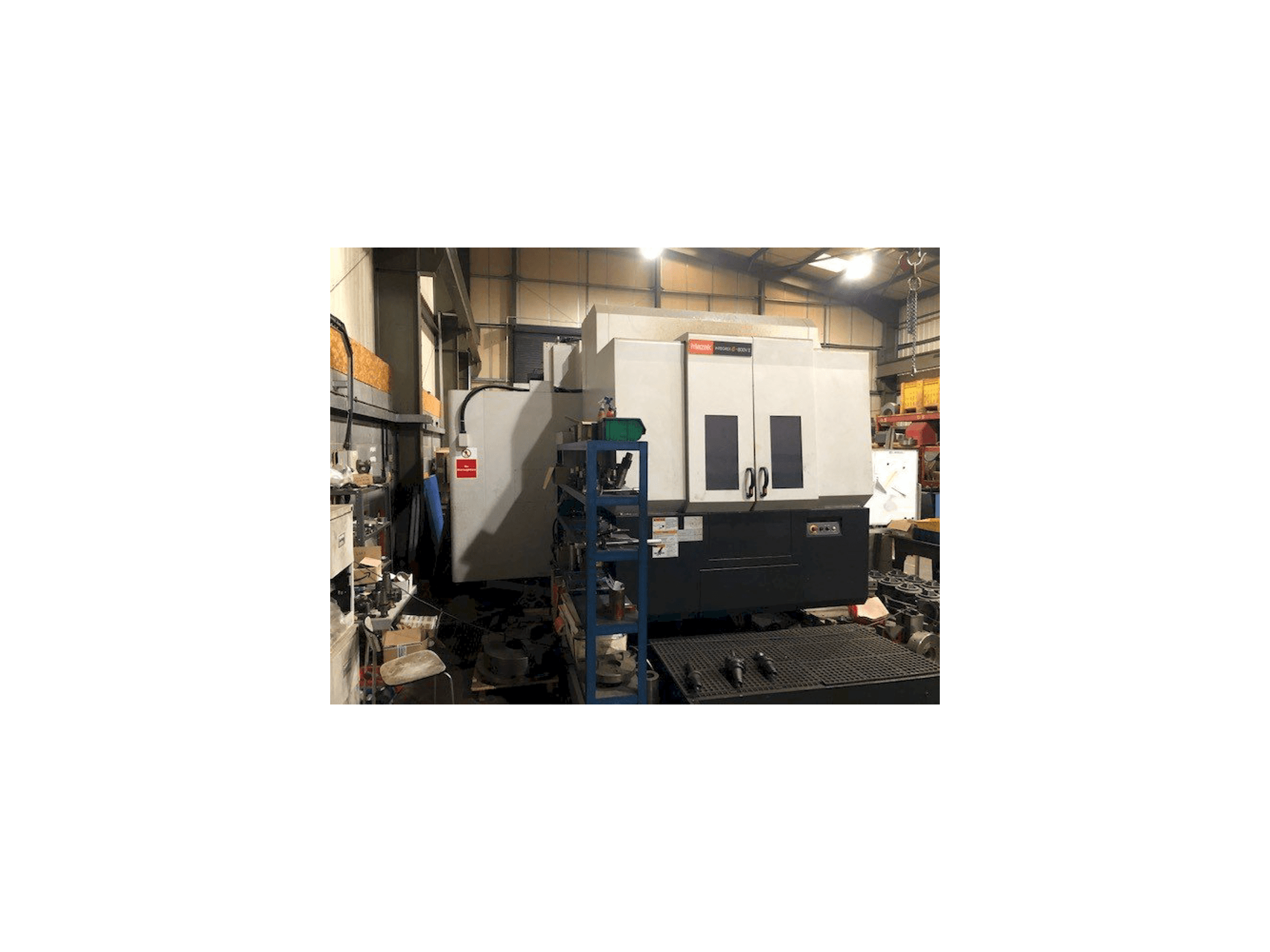

Front view of Mazak Integrex 800V/5 II E machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 800V/5 II E

Photo Gallery

Mazak - Integrex 800V/5 II EGB-MIL-MAZ-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 800V/5 II E Horizontal Machining Center

This Mazak Integrex 800V/5 II E Horizontal Machining Center was manufactured in the year 2008 in Japan. It counts with 16088 hours, of which 4573 are cutting time. It is equipped with MAZATROL MATRIX control unit. This 5 axis machine can work with a spindle speed up tp 12000 rpm. It presents very good conditions.

Overview

brand: Mazak
year: 2008
MODEL: Integrex 800V/5 II E
production hours: 16088
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 800V/5 II E

Control Unit

Control Brand: MAZATROL
Control Model: MATRIX

Dimensions

Machine Weight: 23000 kg

Movement

Number of Axes: 5
X-axis Travel: 1100 mm
Y-axis Travel: 800 mm
Z-axis Travel: 900 mm

Technical Specification

Max. Tool Weight: 12 kg
Number of Tools: 80
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Max. Cutting diameter 730mm
No. Of pallets 2, 10 seconds change time
Max. Turning speed 10. 000 rpm
Spindle motor power 18. 5 kw
A axis +120/30 degrees
B axis 0. 001 degree
Through spindle coolant
Tool setter
3-jaw chuck, 4-jaw chuck
5-axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
