Mazak - Integrex i-400S- 2500UHR-TUR-MAZ-2018-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak Integrex i-400S- 2500U | Turn-Mill Centre

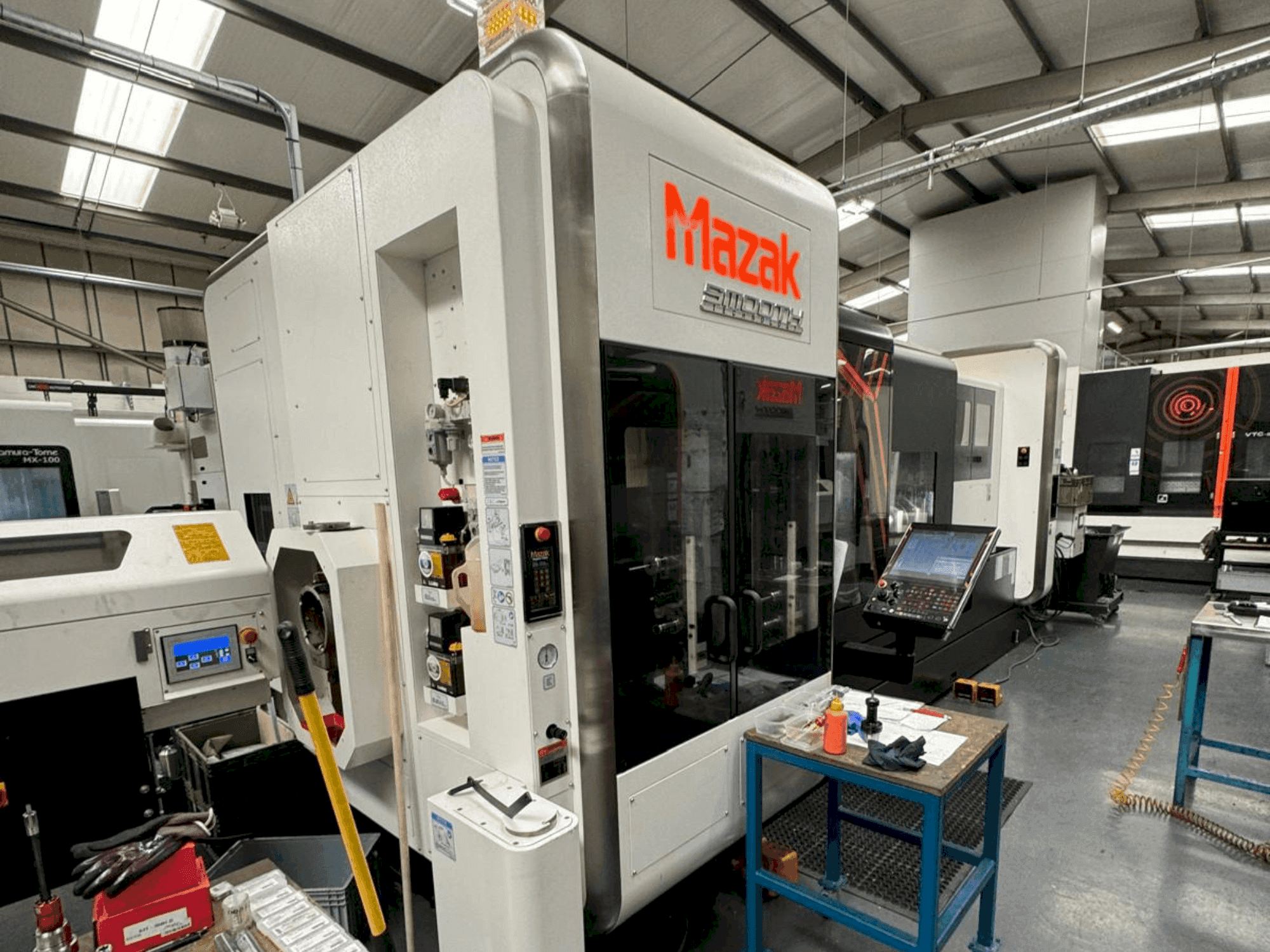

This 5-axis Mazak Integrex i-400S-2500U was manufactured in 2018, featuring Mazatrol SMOOTH X Control and a Hydrafeed MSV110 Barfeed. It offers a maximum machining diameter of ø658 mm and a length of 2,497 mm. Equipped with a milling spindle speed of 12,000 rpm and a tool storage capacity of 72 tools, this turn-mill centre is ideal for complex machining tasks. If you are looking to get high-quality turning and milling capabilities, consider the Mazak Integrex i-400S-2500U machine we have for sale. Contact us for more information.
Overview
- brand: Mazak
- year: 2018
- MODEL: Integrex i-400S- 2500U
- application type: Turning
- Location: Croatia
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: MAZATROL
Technical Information - Mazak Integrex i-400S- 2500U
Control Unit
- Brand: MAZATROL
- Model: SMOOTH X
Main drive
- Number of spindles: 2
- Spindle speed range: 1 - 3300 rpm 1/MIN
- Spindle bore: ø112 mm (ø4.41 inches)
- Number of axis: 5
Movement
- X-AXIS Movement: 615 mm
- X-AXIS Rapid traverse: 50 m/min
- Y-AXIS Movement: 260 mm
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 2563 mm
- Z-AXIS Rapid traverse: 40 m/min
- W-Axis Rapid traverse: 30 m/min
Tools
- Number of index: 72
- Max weight: 12 kg
- Max tool diameter: 90 mm
- Type of tool holder: HSK-A63 (T63)
Additional Information
- Technical Machine Benefits:
- - Main spindle chuck size: 12 inches
- - Bearing id: ø150 mm (ø5. 91 inches)
- - Second spindle hydraulic chuck: 10 inches
- - Second spindle speed: 1 - 4000 rpm
- - Second spindle bore: ø91 mm (ø3. 58 inches)
- - Bearing id: ø130 mm (ø5. 12 inches)
- - B-axis indexing range: -30° to 210°
- - W-axis travel: 2175 mm (85. 63 inches)
- - When adjacent pockets empty: 125 mm (4. 92 inches) / 400 mm (15. 75 inches)
- - Max. Machining Diameter (Upper Turret): ø658 mm (ø25.9 inches) Max. Machining Length: 2497 mm (98.31 inches) Max. Bar Work Capacity: ø102 mm (ø4.02 inches) Boring Bar Shaft Diameter: ø40 mm (ø1.5 inches) B-axis Minimum Indexing Increment: 0.0001° Min. Main Spindle Indexing Increment: 0.0001°
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
