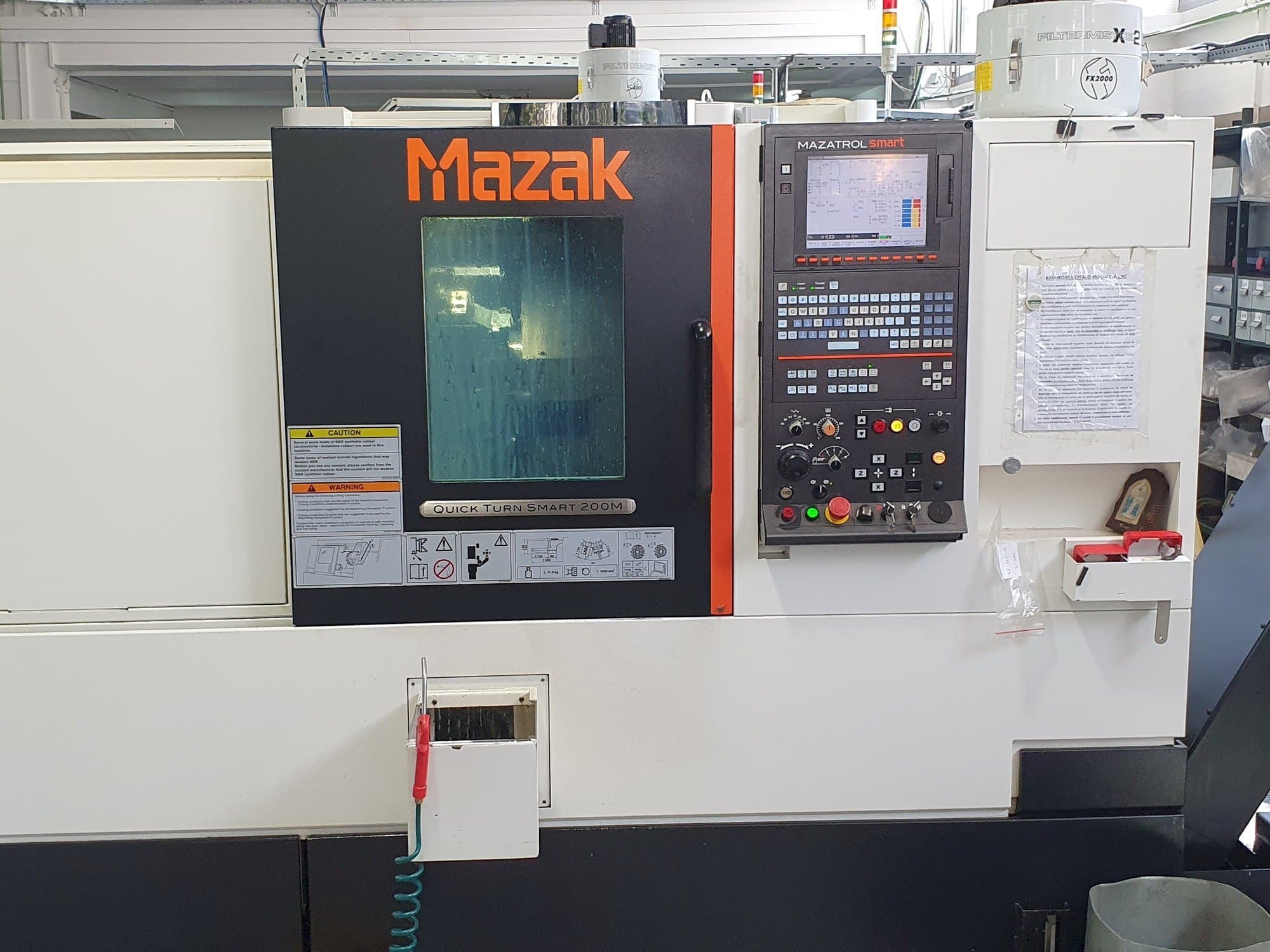

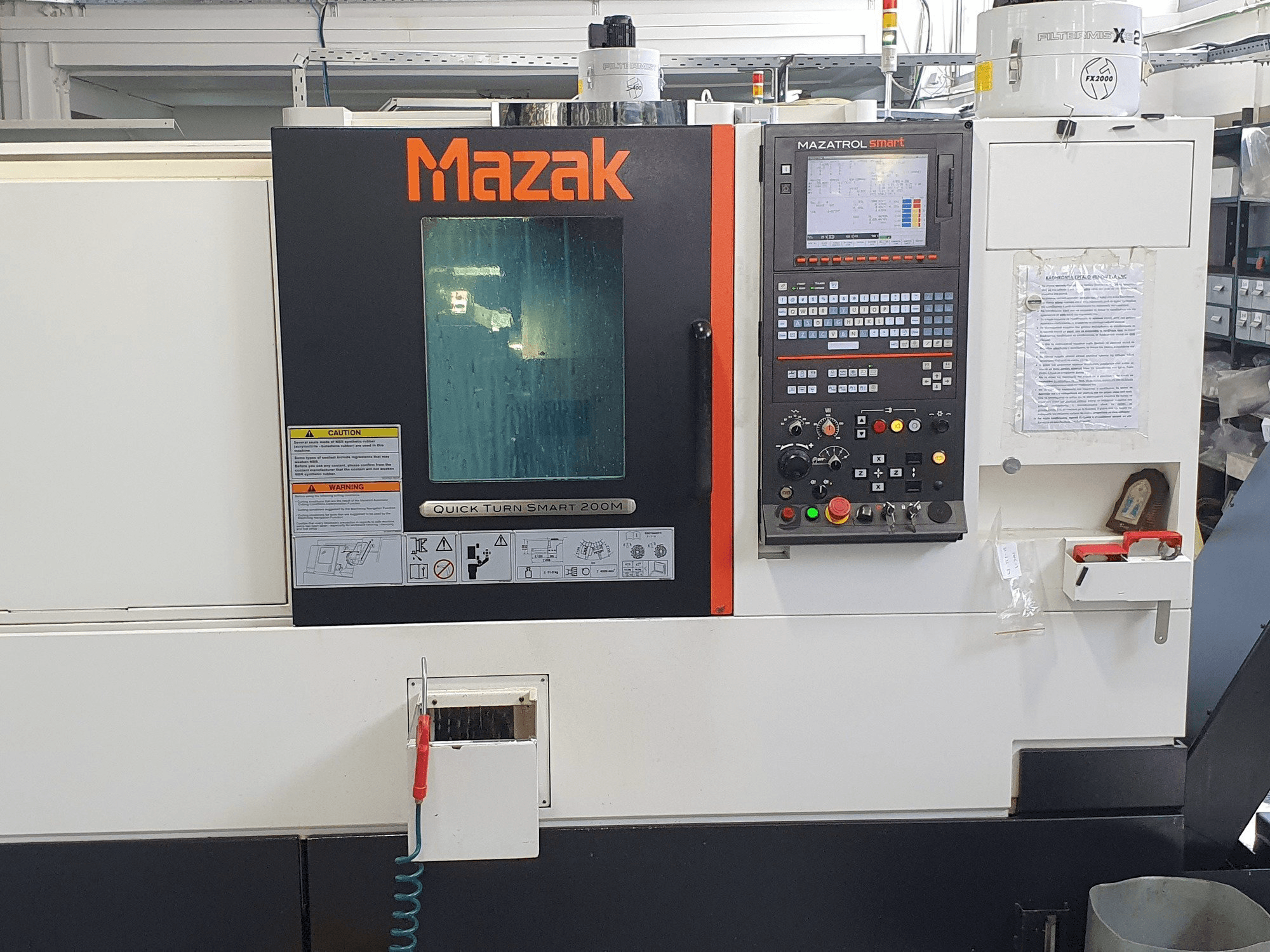

Mazak Quick Turn Smart 200 M

Photo Gallery

Mazak - Quick Turn Smart 200 MGR-TUR-MAZ-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Quick Turn Smart 200 M Lathe

This Mazak Quick Turn Smart 200 M Lathe was built in Europe in the year 2014. It has been working for 23405 hours. It is equipped with a Mazatrol SMART control unit. This machine can work with a spindle speed range of 35 – 6000 rpm. The machine is a full equipped with options: kitagawa chuck, tool eye (automatic measurement), parts catcher, chip conveyor, synchronise tapping, milling operation in all positions, tailstock hydraulic, optional the machine has 4 live driven tools (for face and for diameter), all the diameter of protection plain tubes, navigation monitoring display, PCMCIA port, IC Port, interface for Mazatrol data transfer, and documentation. The Machine includes 8 standard toolholders and 4 driven live toolholders.

Overview

brand: Mazak
year: 2014
MODEL: Quick Turn Smart 200 M
production hours: 23405
application type: Turning
Location: Greece
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Smart 200 M

General Data

Measurements width: 2630 mm
Measurements depth: 1680 mm
Measurements height: 1850 mm
Machine weight: 5050 kg

Control Unit

Model: SMART
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 6000 1/MIN
Spindle motor power: 18,5 kW
Spindle bore: 76 mm

Media

Power consumption: 35 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

includes 8 standard tool holders
4 driven live tool holders

Machine Benefits

Qualitative Machine Benefits

Cutting feed rate: x/z-axis0 - 5. 000 mm/min, c-axis1 - 2. 000 °/min
Tailstock: tailstock quill stroke150 mm, tailstock centermk 5, tailstock travel 400 mm
The machine is a full equiped with options: kitagawa chuck, tool eye (automatic measurement), parts catcher,
Synchronize tapping, milling operation in all positions, tailstock hydraulic, optional the machine has 4 live driven tools (for face and for diameter)
All the diameter of protection plain tubes
Navigation monitoring display
Pcmcia port, ic port
Interface for mazatrol data transfer
Documentation

Technical Machine Benefits

Max. Swing diameter 660 mm
Max. Machining diameter 360 mm
Max. Machining length 500mm
Max. Bar material diameter 65 mm
Max. Torque 350 nm
Spindle nose a2 – 6 ''
Spindle indexing increments 0,001 °
Turret tool capacity 12
Rotary tools: spindle speed 120-5000 rpm, power 3,7 kw
Cutting feed rate: x/z-axis0 - 5. 000 mm/min, c-axis1 - 2. 000 °/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
