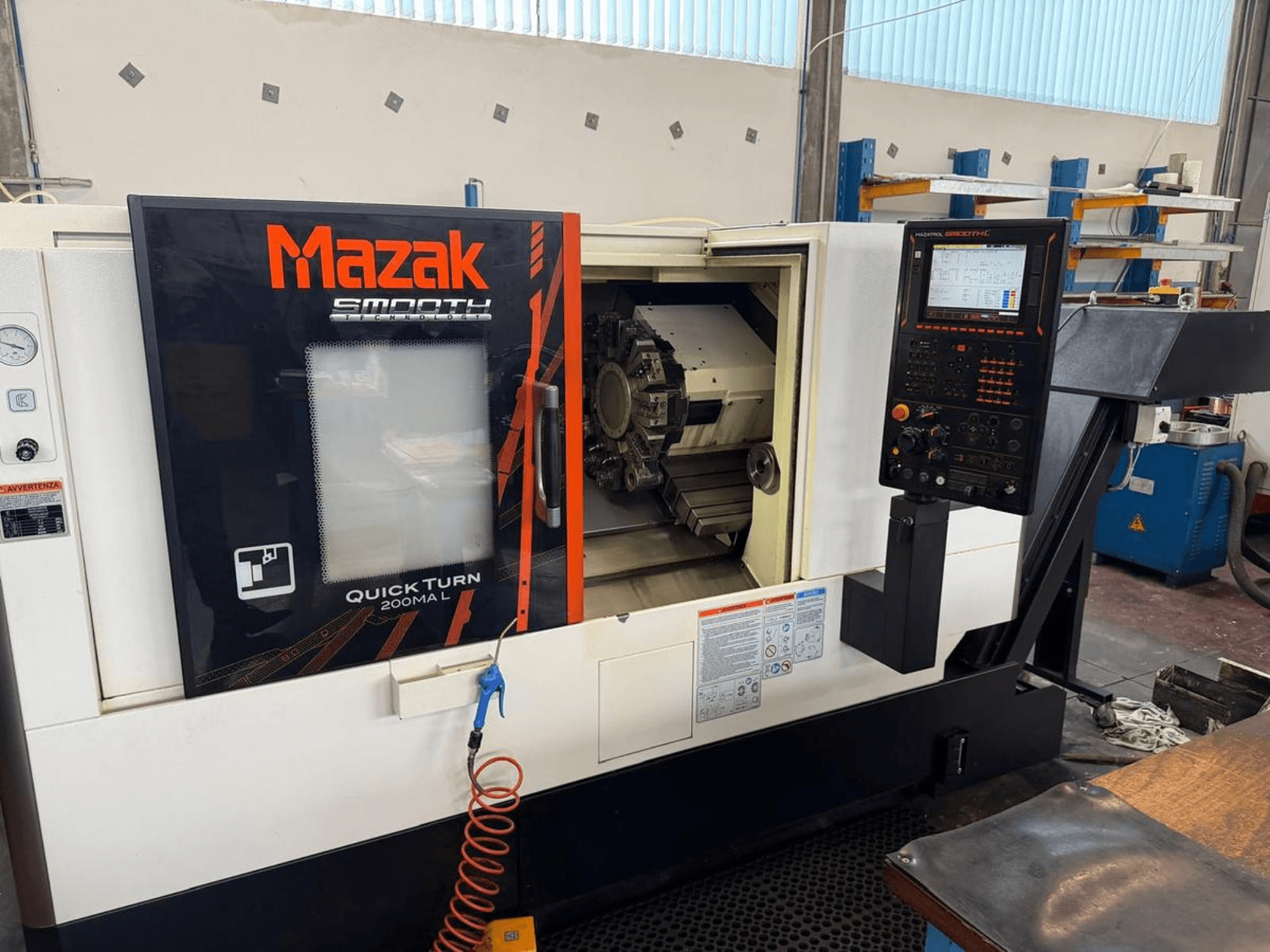

Horizontal turning machine manufactured in 2018. This Mazak QUICK TURN 200MA L features a maximum workpiece diameter of Ø 360 mm and a maximum workpiece length of 535 mm. It is equipped with a spindle speed of 5,000 rpm and a turret with 12 VDI positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN 200MA L machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2018
- MODEL: QUICK TURN 200MA L
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak QUICK TURN 200MA L
Control Unit
- Control Brand: MAZATROL
- Control Model: Smooth C
Dimensions
- Machine Weight: 4950 kg
Movement
- Number of Axes: 2
- X-axis Travel: 225 mm
- Z-axis Travel: 605 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Speed: 5000 RPM
Additional Information
Max Workpiece Diameter: Ø 360 mm
Max Workpiece Length: 535 mm
Max Bar Capacity: Ø 65 mm
Spindle Nose: A2-6
Spindle Bore: Ø 76 mm
Turret Tool Station: 12 VDI positions
Additional equipment
Chip extractor
