Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Mazak - Space Gear-48 MK IIDE-LAS-MAZ-2005-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Mazak SPACE GEAR-48 Mk II Laser Cutting Machine

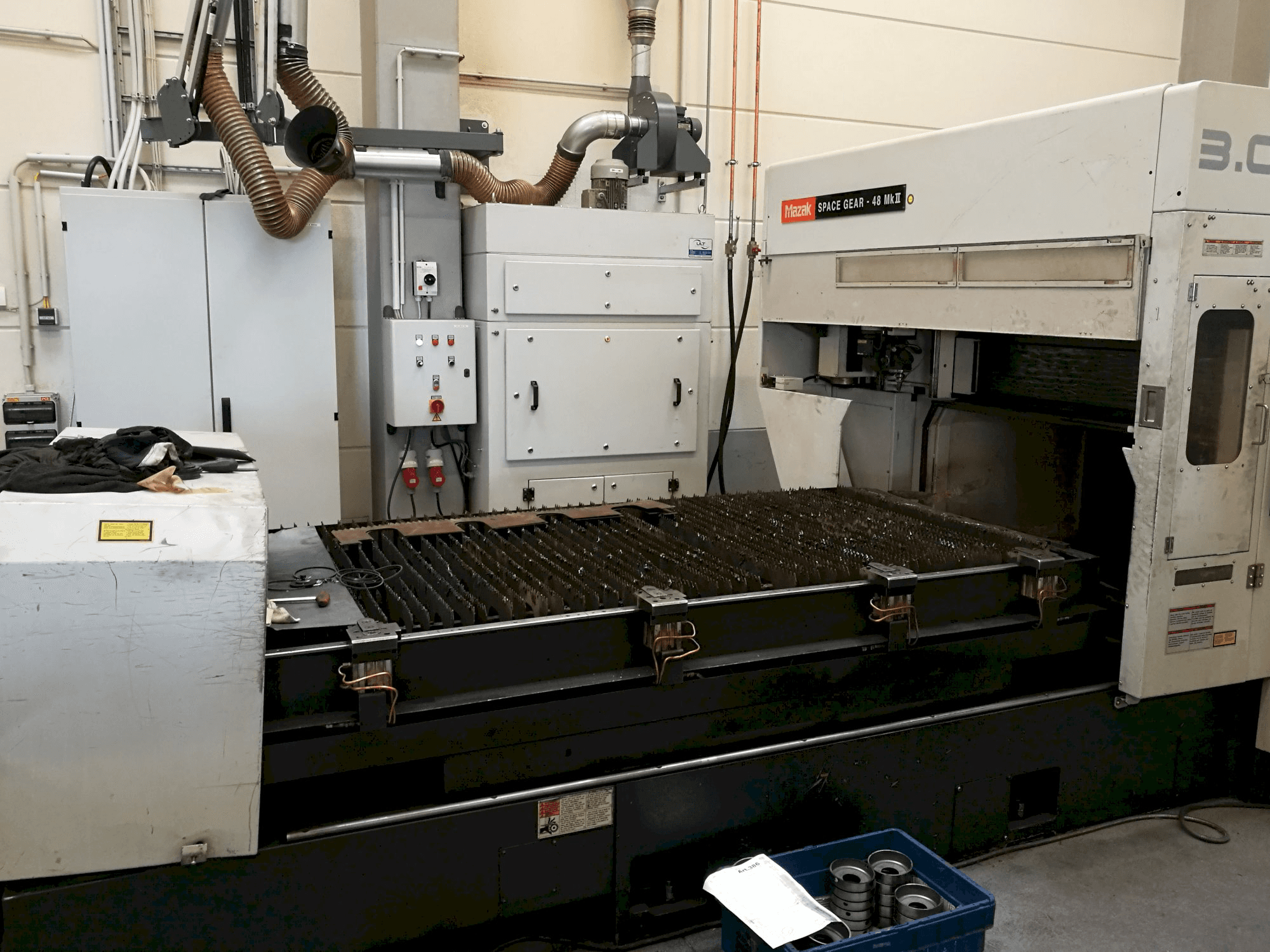

This Mazak Space Gear-48 MK II Laser Cutting Machine from Japan was manufactured in 2005 and has a working time of 23100 production hours. Equipped with a FANUC Series 160i-LB Control unit, has mainly worked with steel up to 5mm of thickness during the past. This allrounder machine specializes in 2D and 3D cutting, presenting very good conditions and perfect maintenance. Some additional equipment including jaws, a chip conveyor, a cooling and a filter system are included.
Overview
- brand: Mazak
- year: 2005
- MODEL: Space Gear-48 MK II
- production hours: 23100
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Mazak Space Gear-48 MK II
General Data
- Measurements width: 6874 mm
- Measurements depth: 2600 mm
- Measurements height: 2302 mm
- Machine weight: 12900 kg
Control Unit
- Model: Series 160i-LB
- CNC main language: German
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Laserpower: 2.5 kW
- Laser type: CO2
- Laser brand: Mazak
Movement
- X-AXIS Movement: 2775 mm
- Y-AXIS Movement: 1270 mm
- Z-AXIS Movement: 420 mm
- V-Axis Movement: 360 ° MM
- U-Axis Movement: 360 ° MM
Workpiece
- Workpiece drm: 285 mm
- Workpiece x: 2500 mm
- Workpiece y: 1250 mm
- Workpiece z: 19 mm
- Workpiece weight: 470 kg
Additional Equipment
- - 4 jaws
- - Chip Conveyor
- - Orion cooling system
- - ULT filter system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
