- Mazak SQT 15MS lathe

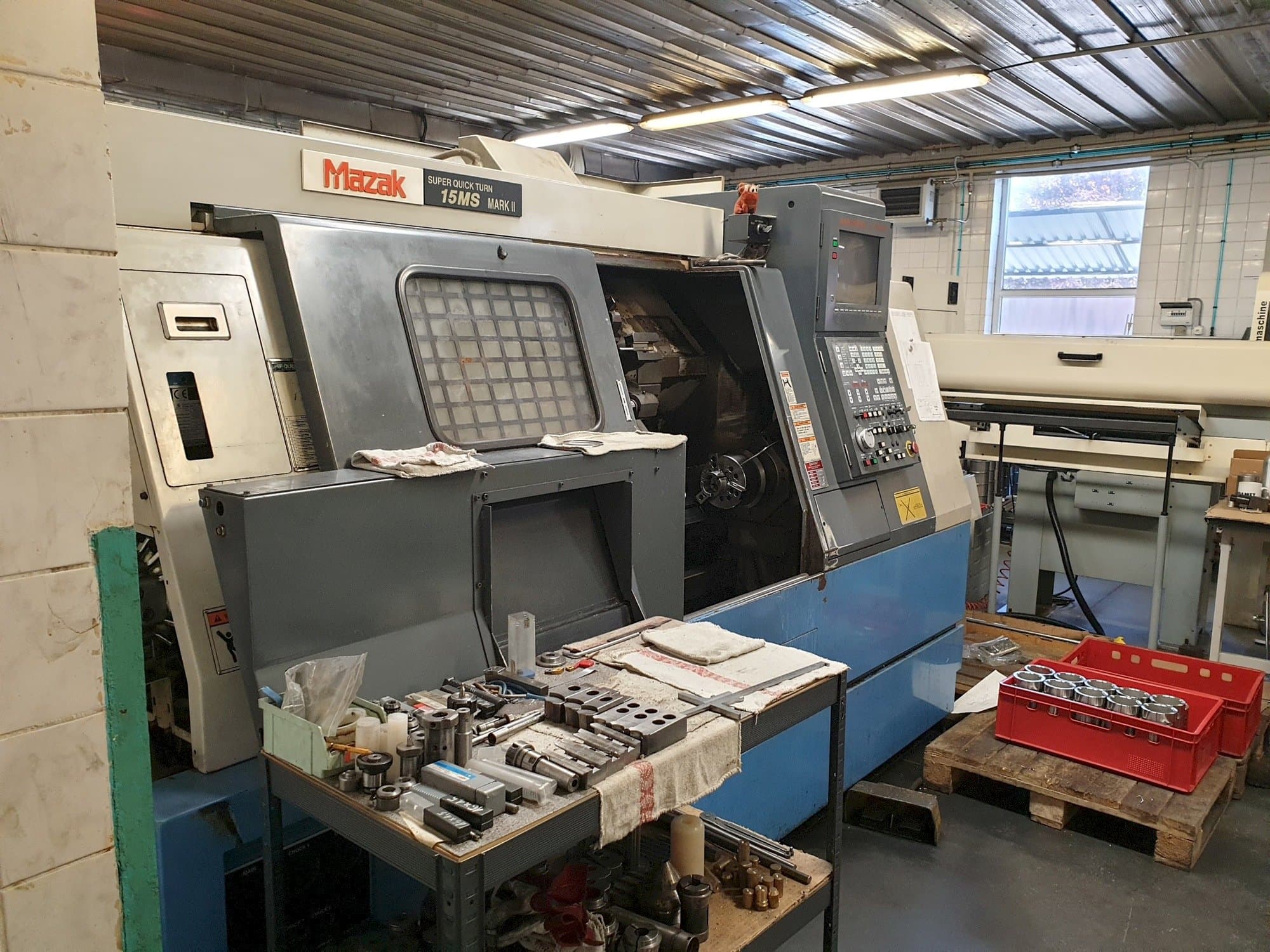

This Mazak SQT 15MS lathe machine was manufactured in 1995 in the United Kingdom. The machine is operated through a MAZATROL T-PLUS control unit. It works with a spindle speed range of 35 - 6000 rpm and a sub-spindle speed range of 180 - 6000 rpm.
Overview
- brand: Mazak
- year: 1995
- MODEL: SQT 15MS
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak SQT 15MS
Control Unit
- Control Brand: MAZATROL
- Control Model: T-PLUS
Dimensions
- Machine Weight: 5050 kg
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Main spindle motor, 30 min. Rating 20 hp ac
- Second spindle motor, 10 min. Rating 10 hp ac
- Rotary tool motor, 10 min. Rating 4. 1 hp ac
Technical Machine Benefits
- Maximum swing 20. 91"
- Maximum machining diameter 11. 81"
- Maximum machining length 20. 90"
- Spindle bore diameter 2. 4" maximum bar work diameter 2"
- Sub spindle speed range 180 - 6000 rpm
- Sub spindle rapid traverse rate 708 ipm
- Turret tool capacity 12
- Rotary tool speed range 120 - 3000 rpm
- Rapid traverse rate, x & z axis 1180 ipm
- Rapid traverse rate, c-axis 100 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
