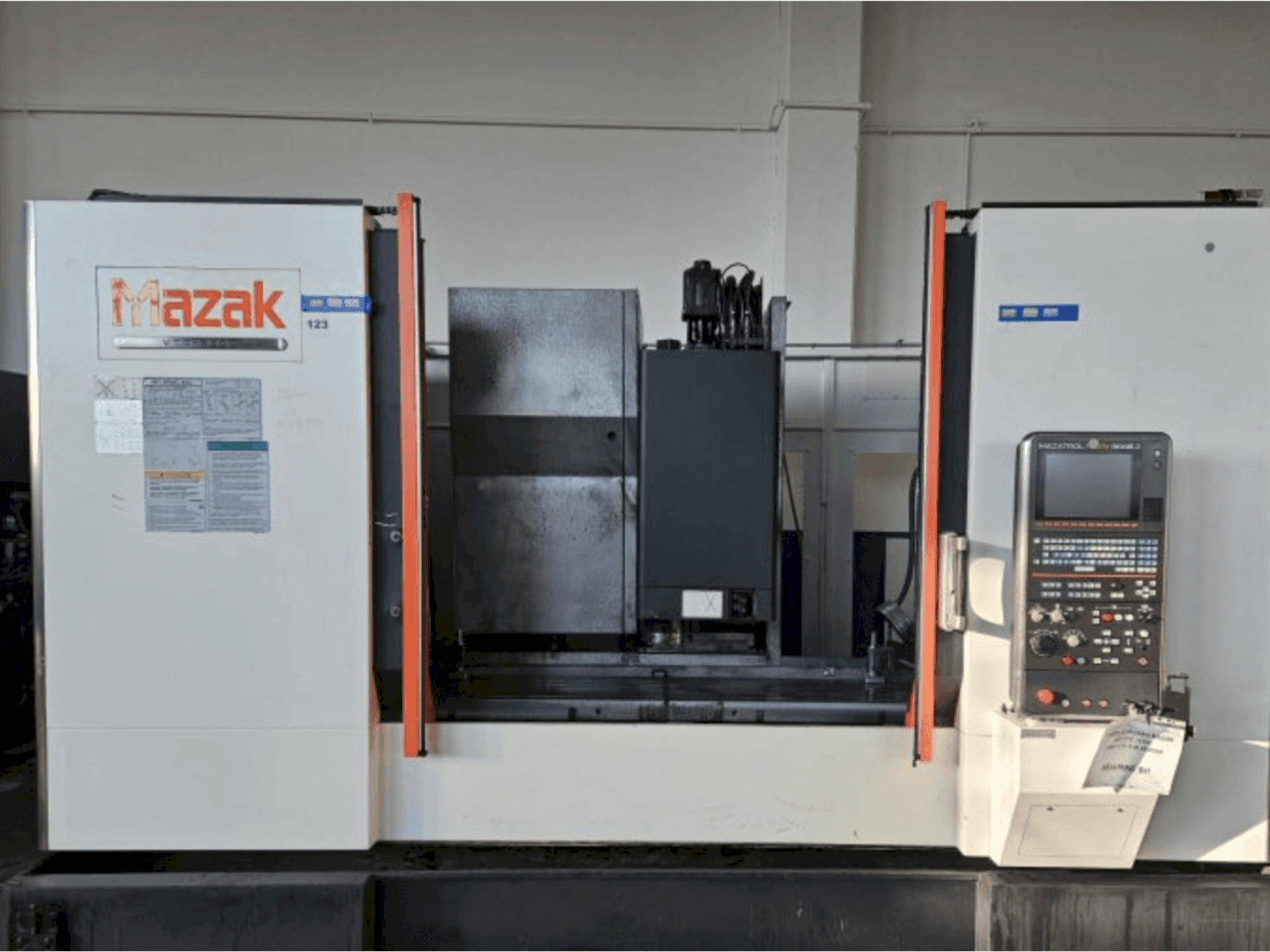

Front view of Mazak VTC-530C  machine

Mazak VTC-530C

Mazak - VTC-530C

2016

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MAZAK VTC-530C Vertical Machining center was manufactured in the year 2016. It is equipped with a Mazatrol Matrix Nexus 2 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: Mazak
  • year: 2016
  • MODEL: VTC-530C
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Mazatrol
  • GINDUMAC ID: IT-MIL-MAZ-2016-00002

Technical Information

General Data

  • Measurements width: 4525 mm
  • Measurements depth: 3145 mm
  • Measurements height: 2759 mm
  • Machine weight: 9710 kg

Control Unit

  • Brand: Mazatrol
  • Model: Matrix Nexus 2

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 18.5 kW
  • Tool taper: ISO 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1740 mm
  • X-AXIS Rapid traverse: 42 m/min
  • Y-AXIS Movement: 530 mm
  • Y-AXIS Rapid traverse: 42 m/min
  • Z-AXIS Movement: 530 mm
  • Z-AXIS Rapid traverse: 42 m/min

Table

  • Outer length: 2300 mm
  • Outer width: 530 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum torque nm 95
      • - Tool magazine for 30 tools
      • - Automatic doors
      • - Central bulkhead for pendulum work
      • - External robot/automation interface
      • - No. 1 self-centering with pneumatic closing
      • - Remote flyer
      • - High pressure pump 15 bar
      • - Right side chip conveyor
      • - Machine manuals, part lists, cnc in digital and paper format
    • Qualitative Machine Benefits:
      • - Original ce certification

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
