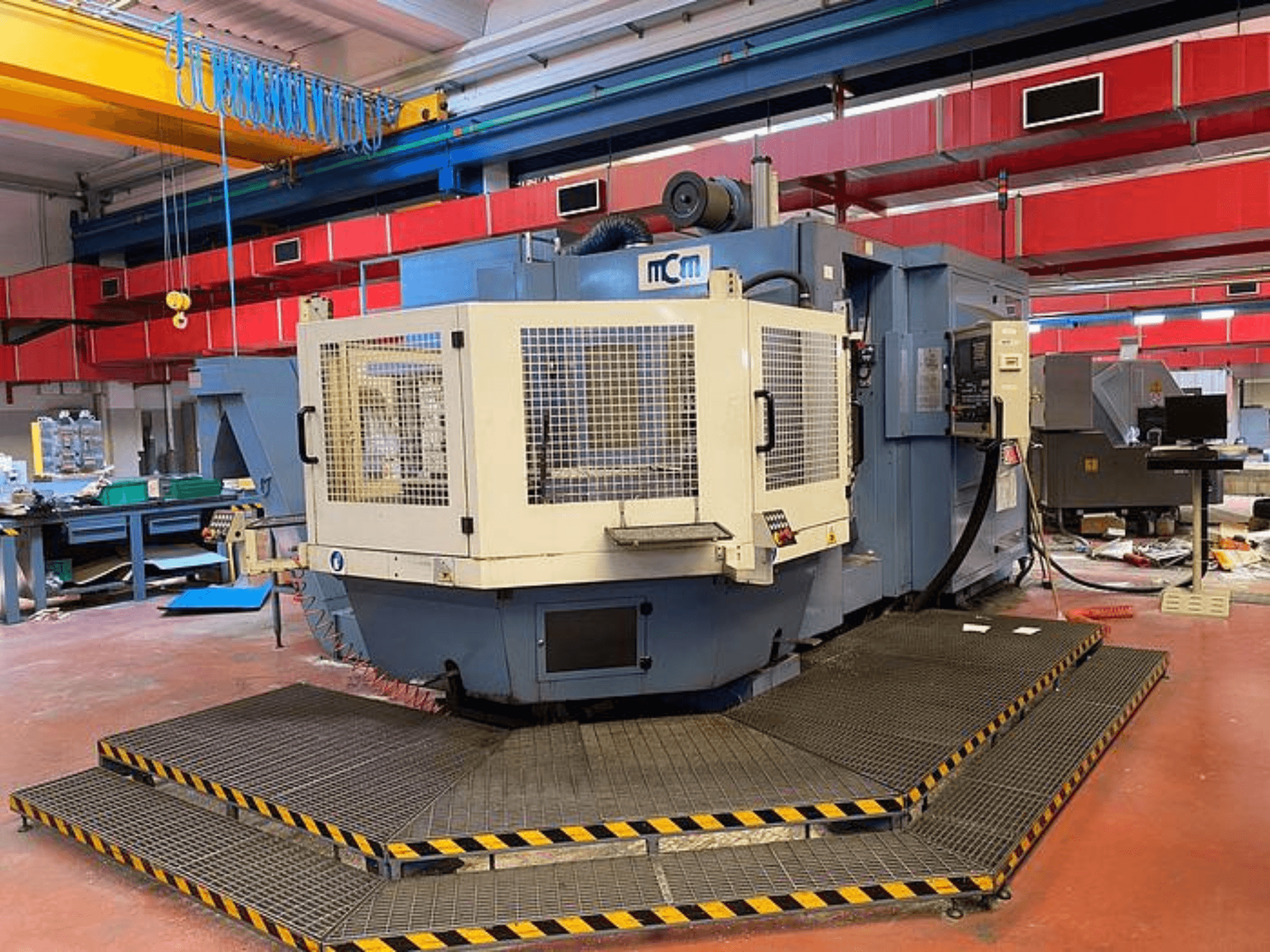

This 4-axis MCM CLOCK 800 MP4 was manufactured in 2000. It features a Fanuc 16 I control, X-axis travel of 700 mm, Y-axis travel of 700 mm, Z-axis travel of 800 mm, and a B-axis rotation of 366°. Equipped with a high-speed spindle at 20,000 rpm and a high-pressure system at 65 Bar. It includes a chip evacuator and a tool magazine with 72 positions. Contact us for more information about this machine.
Overview
- brand: MCM
- year: 2000
- MODEL: CLOCK 800 MP4
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - MCM CLOCK 800 MP4
Control Unit
- Control Brand: FANUC
- Control Model: 16i
Movement
- Number of Axes: 4
- X-axis Travel: 700 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 20000 RPM
- Taper Size: HSK 63
Additional Information
B-axis rotation: 366° (to be confirmed; source listed 3,660,000)
Number of pallets: 4
High pressure: 65 bar
Table size: 630 x 630 mm
Tool magazine: 72 positions
Additional equipment
Chip evacuator
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
