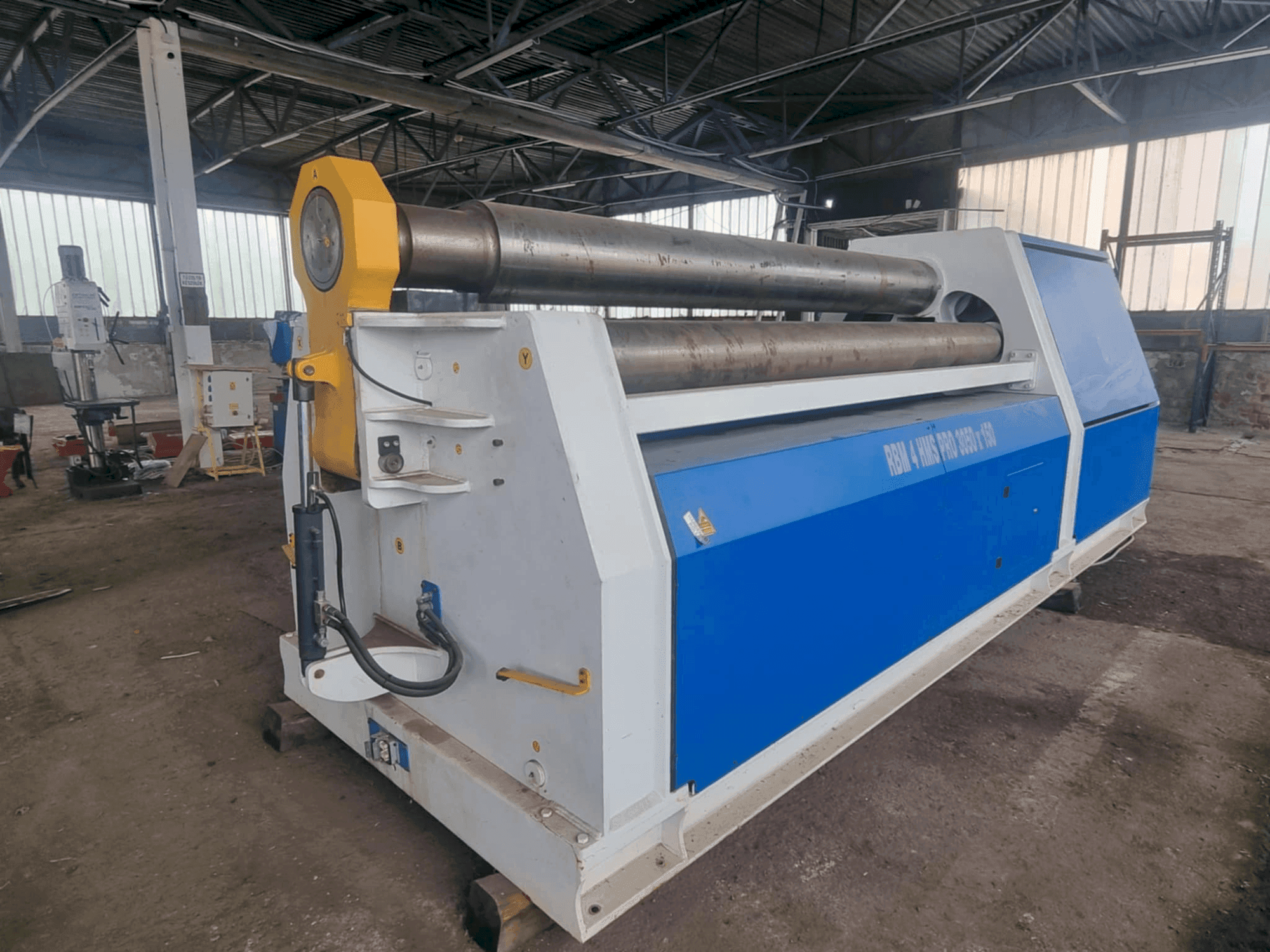

Metallkraft - RBM 4 HMS Pro 3050-150HU-ROL-MET-2022-00001

Additional Equipment

• - Teach-In NC control for automated bending processes (optional)
• - Mechanical auxiliary arm for handling heavy workpieces (optional)
• - Hydraulic side supports for stabilizing long sheets (optional)
• - Infinitely adjustable bending speed (optional)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum working width: 3050 mm
  • - Upper roller diameter: 300 mm
  • - Rolling speed: 1. 5 – 5 m/min
  • - Minimum bending diameter: 450 / 1500 mm
  • - For steel with 400 n/mm² strength, the machine allows pre-bending of 10/12 mm, full bending of 12/15 mm, and conical bending of 6/7. 5 mm.
  • - For stainless steel (va), the machine allows full bending of 9/11. 2 mm and conical bending of 4. 5/5. 6 mm.
  • - For aluminum, the machine allows full bending of 14. 4/18 mm and conical bending of 7. 2/9 mm.
  • - Heavy, robust welded construction for industrial use
  • - Induction-hardened rollers, suitable for bending stainless steel
  • - Hydraulic drive for the upper roller with planetary gear
• Qualitative Machine Benefits:
  • - Three digital displays for precise adjustment of the roller position
  • - Hydraulic folding plate for easy removal of the finished workpiece
  • - Movable control panel for comfortable operation
  • - Conical bending option
  • - Hydraulic balancing system for the rollers to ensure parallelism
  • - Safety emergency stop system
