- Mikron WF-31C Universal Machining center

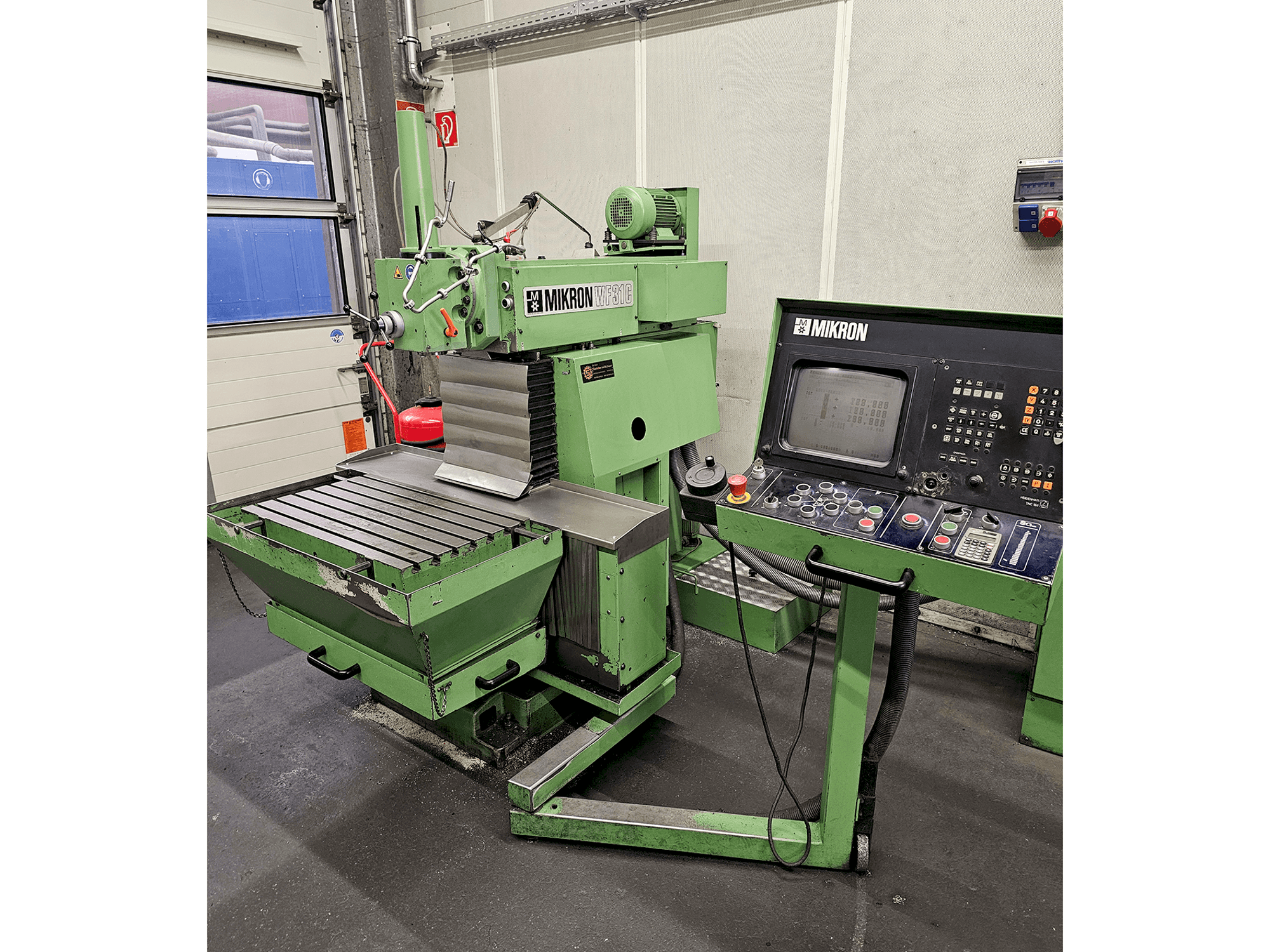

This Mikron WF-31C Universal Machining center was manufactured in the year 1986. It is equipped with a MIKRON control unit and has 3 axis. The machine has a spindle speed of 31,5-3150 rpm.
Overview
- brand: MIKRON
- year: 1986
- MODEL: WF-31C
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: MIKRON
Technical Information - MIKRON WF-31C
General Data
- Measurements width: 2700 mm
- Measurements depth: 2900 mm
- Measurements height: 2000 mm
- Machine weight: 2300 kg
Control Unit
- Brand: MIKRON
Main drive
- Spindle speed range: 31.5 - 3150 1/MIN
- Spindle motor power: 3.3/4 KW
- Tool taper: ISO 40/M 16
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 400 mm
Workpiece
- Workpiece weight: 400 kg
Additional Information
- Technical Machine Benefits:
- - Milling spindle drive: 21
- - Speed range geom. Graduated: 1259
- - Quill movement vertical: 90 mm
- - Feed drives
- - Adjustable: 2 - 3000 mm/min
- - Rapid traverse speed x-axis and y-axis: 6000 mm/min, rapid traverse speed z axis: 5000 mm/min
- - Torque feed motor lengthwise and crosswise: 3. 5 nm, torque feed motor vertical: 7 nm
- - Displacement paths - length - transverse - vertical, longitudinal movement of the clamping table
- - Max. Vertical installation height between: 450 mm
- - Vertical milling head and angle table, by moving the table by 1 t-slot: 495 mm
- Qualitative Machine Benefits:
- - Vertical clamping surface: 300 x 450 mm
- - Number of threaded holes: 2 x 6
- - Thread hole distance: 45 mm, thread: m16
- - Angle table clamping surface: 460 × 800 mm
- - Number of t-slots: 7, t-slot spacing: 63 mm, t-slot width: 14-h7 mm
- - Weight of the machine with vertical milling head and. Angle table: 2300 kg
- - Weight of box base: 170 kg
- - Weight of the transport box: 400 kg
- - Amount of coolant m coolant tank: approx. 100 liters
- - Electrical connection load: 9 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
