Mitutoyo - Crysta-Apex S9166 AT-MEA-MIT-2018-00001

86,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

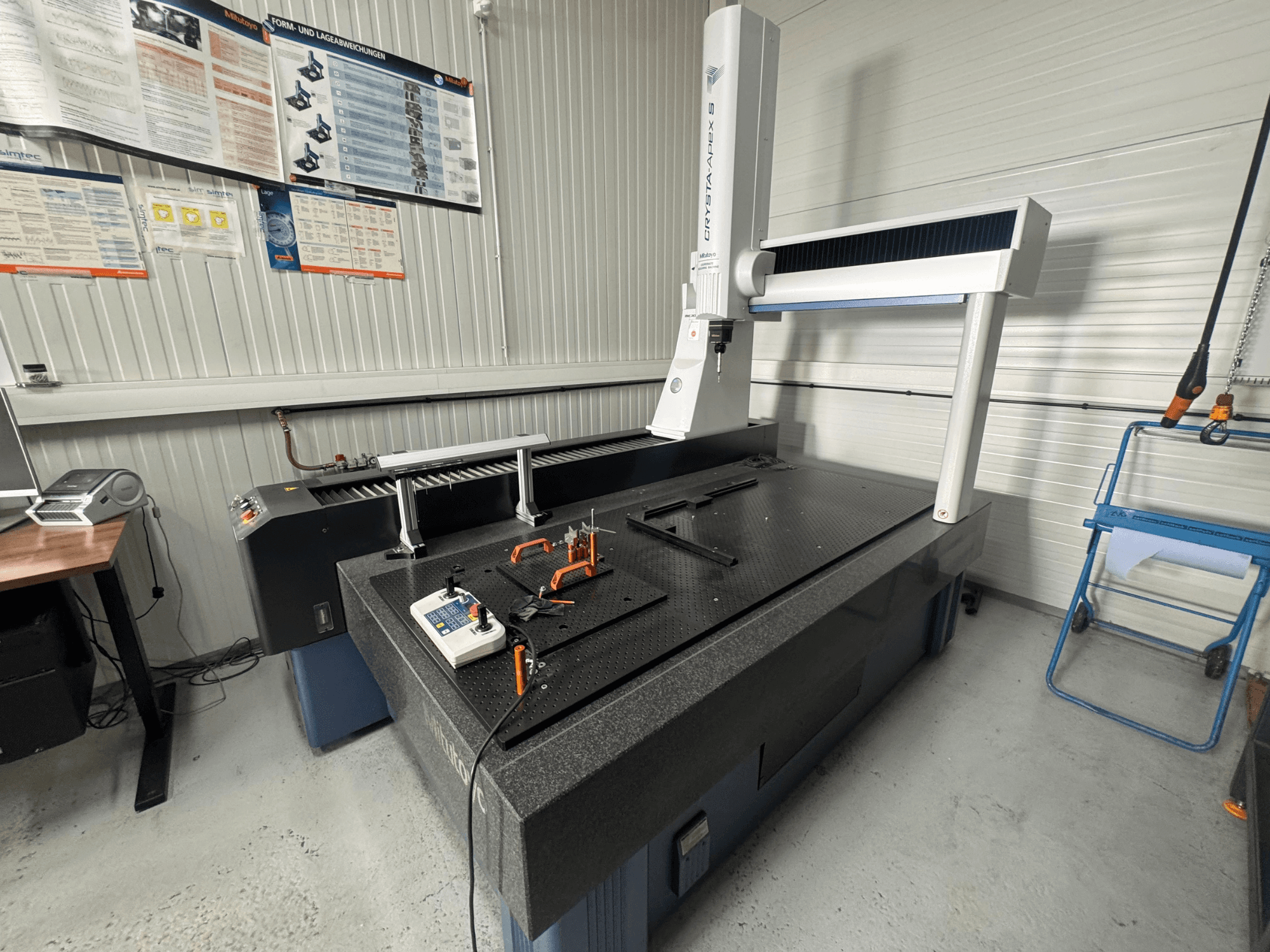

This 3-axis Mitutoyo Crysta-Apex S9166 was manufactured in 2018. It features a comprehensive measuring range with X-axis at 900 mm, Y-axis at 1600 mm, and Z-axis at 600 mm. Equipped with CNC control and MCOSMOS-3 CNC V4 software, it includes a Renishaw PH10MQP R2 indexing probe head and SP25M scanning probe system. Additional equipment includes eco-fix CMM fixturing systems and a high-capacity CEE power cable. Consider the opportunity to buy this Mitutoyo Crysta-Apex S9166 CMM machine. Contact us for more information.

Overview

  • brand: Mitutoyo
  • year: 2018
  • MODEL: Crysta-Apex S9166
  • application type: Measuring
  • Location: Austria
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo Crysta-Apex S9166

Dimensions

  • Machine Weight: 2947 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 900 mm
  • Y-axis Travel: 1600 mm
  • Z-axis Travel: 600 mm

Additional Information

  • Control & software: CNC control; MCOSMOS-3 CNC V4

  • Probe system: Renishaw PH10MQP R2 indexing probe head; SP25M scanning probe system; multiple stylus holders (SH25-2); starter probe kit (M3); ceramic calibration sphere Ø20 mm (with factory certificate)

  • Option: Gear measurement option purchased in 2021

  • Condition/usage: Machine was in the quality control room for final inspection

  • Mounting plates: All aluminum mounting plates installed on the measuring machine

Additional equipment

  • Workstation (PC, keyboard, mouse)

  • 2× HP 23" monitors (1920 × 1080)

  • USB dongle / Wibu-Box license

  • eco-fix CMM fixturing system (kits S and L)

  • Quick-rail base kit

  • J/S Box-M Type A

  • High-capacity CEE power cable

  • 30 additional individual aluminum mounting plates

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
