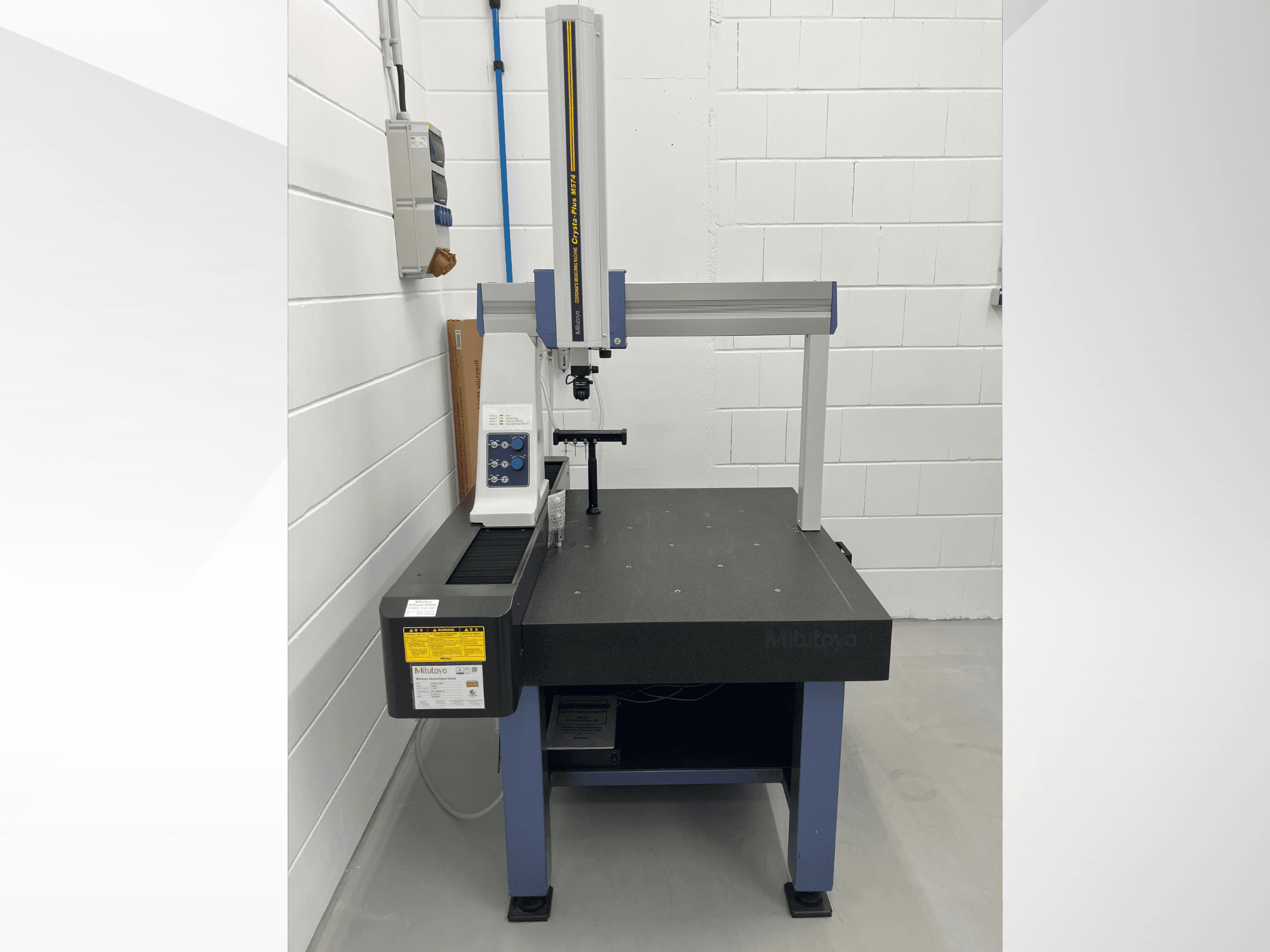

Mitutoyo Crysta-Plus M574 Coordinate Measuring Machine, front view; features a horizontal measuring bridge and control panel.
Mitutoyo Crysta-Plus M574 Coordinate Measuring Machine, front view; features a horizontal measuring bridge and control panel.

Mitutoyo - Crysta-Plus M574DE-MEA-MIT-2010-00002

9,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Mitutoyo Crysta-Plus M574 was manufactured in 2010. It features a measuring range of 500 × 700 × 400 mm and includes a Renishaw MH20i probe head with a TP20 standard force probe system. The machine is equipped with a granite measuring table and multiple styli for enhanced versatility. If you are looking to get high-quality coordinate measuring capabilities, consider the Mitutoyo Crysta-Plus M574 CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Mitutoyo
  • year: 2010
  • MODEL: Crysta-Plus M574
  • application type: Measuring
  • Location: Germany
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo Crysta-Plus M574

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 400 mm

Additional Information

Technical Data

  • Measuring Range (X × Y × Z): 500 × 700 × 400 mm

  • Probe Head: Renishaw MH20i

  • Probe System: TP20 Standard Force

  • Probe Module: Standard Force

  • Scale Resolution: 0.0001 mm (0.1 µm)

  • Probe Ball Diameter: Ø 4 mm

  • Stylus Length: 20 mm

  • Operating Temperature: +5 °C to +40 °C

  • Length Measuring Error (E0, MPE): (5 + 6L/1000) µm

  • Single Stylus Form Error (PForm, MPE): 6 µm

  • Test Sphere Diameter: Ø 3.994 mm

  • Automatic Temperature Compensation: No

  • Calibration Date: 10 March 2026

Additional Equipment

  • Renishaw MH20i indexing probe head

  • TP20 probe system

  • Stylus rack

  • Multiple styli

  • Granite measuring table

  • Machine stand

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
