Mitutoyo QVT1-X302PIL-C
Mitutoyo - QVT1-X302PIL-C
2011
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mitutoyo QVT1 X302PIL-C Measuring Machine

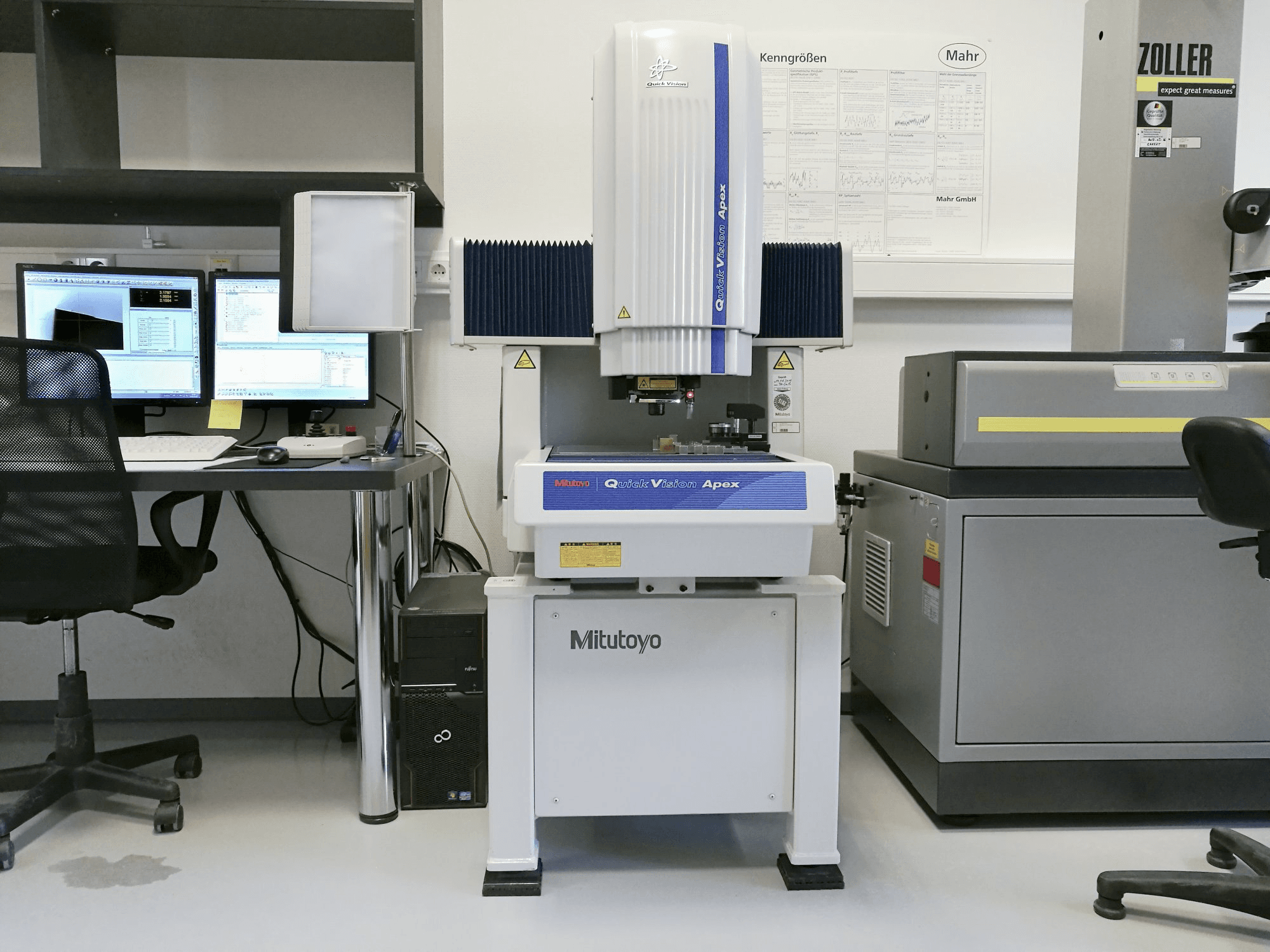

This Mitutoyo QVT1-X302PIL-C Measuring Machine from 2011 has an operating record of only 750 hours. Standing in an excellent condition due to its low wear, the machine is operated through a MiCat QVPAK (version 11.101) Control Unit, which also includes a remote control. Furthermore, several pieces of additional equipment are included: a lens 02AKT300 HR2,5x; a lens 02AKT250 HR1x; a Renishaw TP 200 Probe Kit; two fastening brackets and QVPAK Software.
Overview
- brand: Mitutoyo
- year: 2011
- MODEL: QVT1-X302PIL-C
- production hours: 750
- application type: Measuring
- Location: Germany
- machine type: Measuring Machine
- availability: Sold
- control unit brand: Mitutoyo
- GINDUMAC ID: DE-MEA-MIT-2011-00001
Technical Information
General Data
- Measurements width: 859 mm
- Measurements depth: 951 mm
- Measurements height: 1609 mm
- Machine weight: 360 kg
Control Unit
- Brand: MiCat
- Model: QVPAK
- Release: 11.101
- Remote control: Yes
Main drive
- Camera: High-sensitivity CCD camera B&W
- Illumination: Surface-White LED, Contour-White LED, Programmable Ring Light-White LED
- Resolution: 0.0001 mm
Movement
- X-AXIS Movement: 300 mm
- X-AXIS Working Feed: 300 mm/s
- X-AXIS Largest measurement error: -0.761 µm
- X-AXIS Accuracy: E1x1-(1.5+3L/1000) µm
- Y-AXIS Movement: 200 mm
- Y-AXIS Working Feed: 300 mm/s
- Y-AXIS Largest measurement error: 0.488 µm
- Y-AXIS Accuracy: E1y2-(1.5+3L/1000) µm
- Z-AXIS Movement: 200 mm
- Z-AXIS Working Feed: 300 mm/s
- Z-AXIS Largest measurement error: -0.982 µm
- Z-AXIS Accuracy: E1z3-(1.5+4L/1000) µm
- X-Y-Plane(Diagonal_1) Largest measurement error: 1078 µm
- X-Y-Plane(Diagonal_1) Accuracy: E2xy4-(2+4L/1000) µm
- X-Y-Plane(Diagonal_2) Largest measurement error: 1326 µm
- X-Y-Plane(Diagonal_2) Accuracy: E2xy5-(2+4L/1000) µm
Workpiece
- Workpiece z: 200 mm
- Workpiece weight: 20 kg
Table
- Outer length: 399 mm
- Outer width: 271 mm
Media
- Main electronic connection: 230 V / 50 Hz
Additional Equipment
- - QVPAK Software
- - 1x lens 02AKT300 HR2,5x
- - 1x lens 02AKT250 HR1x
- - 1x Renishaw TP 200 Probe Kit
- - 2x Fastening bracket
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
