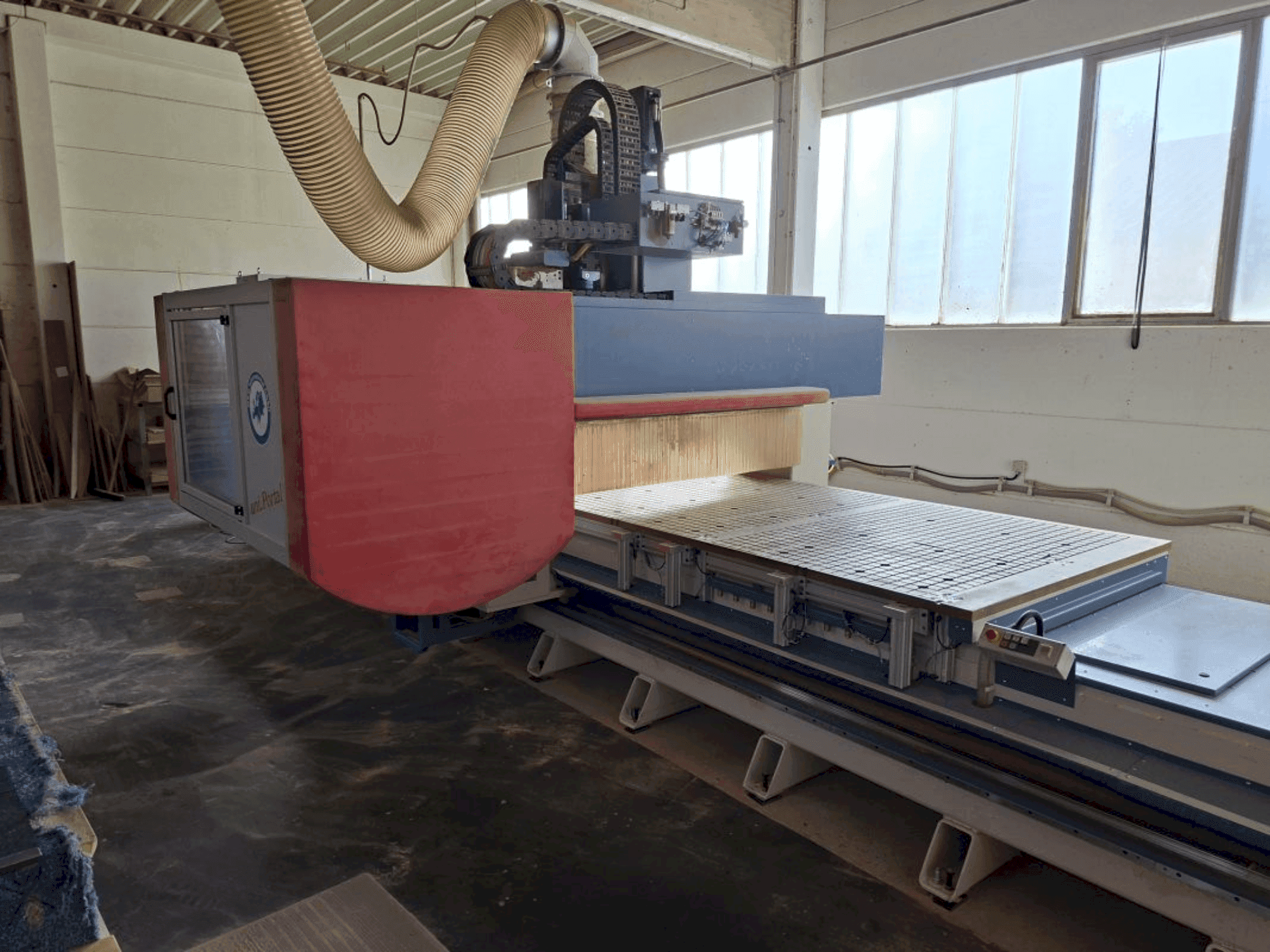

MKM - UNI Portal 50/15 RODE-CNC-MKM-2008-00001

Additional Equipment

• - Central Lubrication
• - Vacuum Supply: 1 vacuum pump (Busch-Mink)
• - Output approx. 250 m3/h
• - 1 unit for manual operation (emergency stop, feed, hood open/close)
• - Protective Fencing
• - Remote Diagnosis Available

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Machining for: wood, plastics, light metals, stairs, doors, frames
  • - 4 zero points (stops) at the front left 2x and right 2x for alternating loading
  • - 8 pneumatic stops permanently integrated in the front part of the table
  • - A-axis: +/- 95°
  • - C-axis: +/- 210° (total 420°)
  • - Polar axis speed in continuous operation: 200°/sec
  • - Positioning accuracy of polar axes: +/-0. 02 mm
• Qualitative Machine Benefits:
  • - Machining unit for aluminum or aluminum alloys, all types of plastics, synthetic resin, resins for metal, wood, graphite for electroerosion, glass, and/or carbon fibers

Extra information

• - Tools Electric Spindle: HSK 63 F connection Automatic tool change with air cylinder Power approx. 12 kW in S1 operation (peak power = 22 kW) Spindle Speed: 24000 rpm Liquid circulation cooling integrated Integrated chip extraction Simple and quick replacement of the electric spindle Tool Change Magazine: 1 automatic tool change magazine for 12 positions (plate changer) moving in the X direction Additional Tool Position: 1 piece, as pick-up position for e.g. adapter with saw blade (max. Ø 350 mm) 1 Piece Drilling Unit, 10-Spindle: 6 spindles vertical in X direction 4 spindles vertical in Y direction

Payment Terms

• Payment in advance

• Asset Financing
