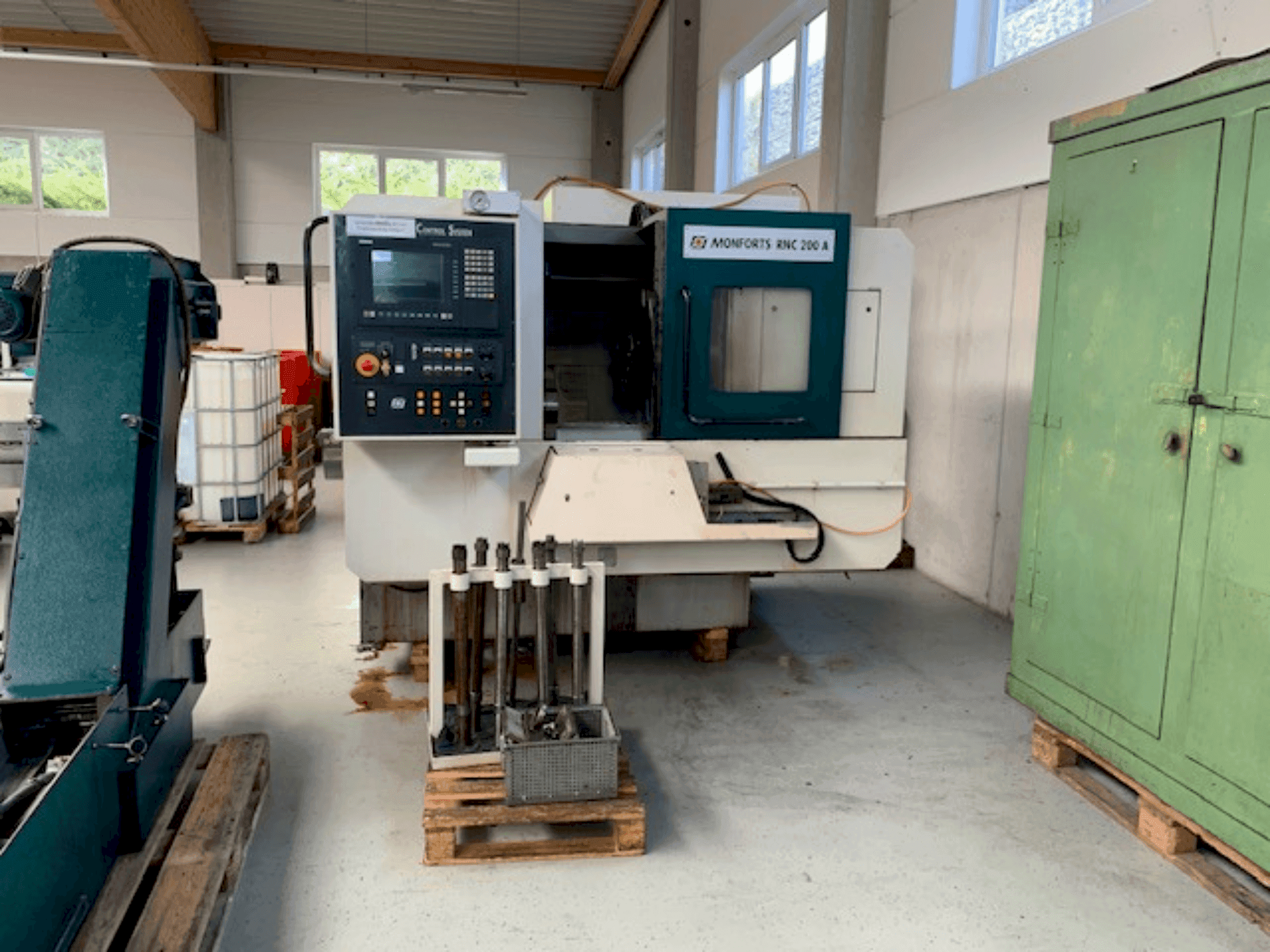

Front view of Monforts RNC 200A  machine

Monforts - RNC 200ADE-TUR-MON-2000-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.

Overview

  • brand: Monforts
  • year: 2000
  • MODEL: RNC 200A
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Sold

Technical Information - Monforts RNC 200A

General Data

  • Measurements width: 2320 MM
  • Measurements depth: 2270 MM
  • Measurements height: 1750 MM
  • Machine weight: 3500 KG

Main drive

  • Number of spindles: 1
  • Spindle speed range: 50 - 6000 1/MIN
  • Number of axis: 2

Movement

  • X-AXIS Movement: 175 mm
  • X-AXIS Feed Force: 3.6 kN
  • X-AXIS Rapid traverse: 24 m/miin
  • Z-AXIS Movement: 300 mm
  • Z-AXIS Feed Force: 3.6 kN
  • Z-AXIS Rapid traverse: 24 m/miin

Workpiece

  • Workpiece drm over bed: 300 mm
  • Workpiece drm over support: 190 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Tailstock with quill diameter 70mm and max quill force 8.8 kN
    • - The following tools are still available: Hainbuch Spanntop without collets, without tools, Chip conveyor, Spindle insert tubes for the following material diameters: 16/21/25/27/30/34/36 and 41.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Turning length: 250mm
        • - Coolant volume: 130 liters
        • - High-speed and precision turning capabilities with advanced spindle and rapid traverse features.
      • Qualitative Machine Benefits:
        • - Robust construction and reliable performance for high-quality turning operations.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
