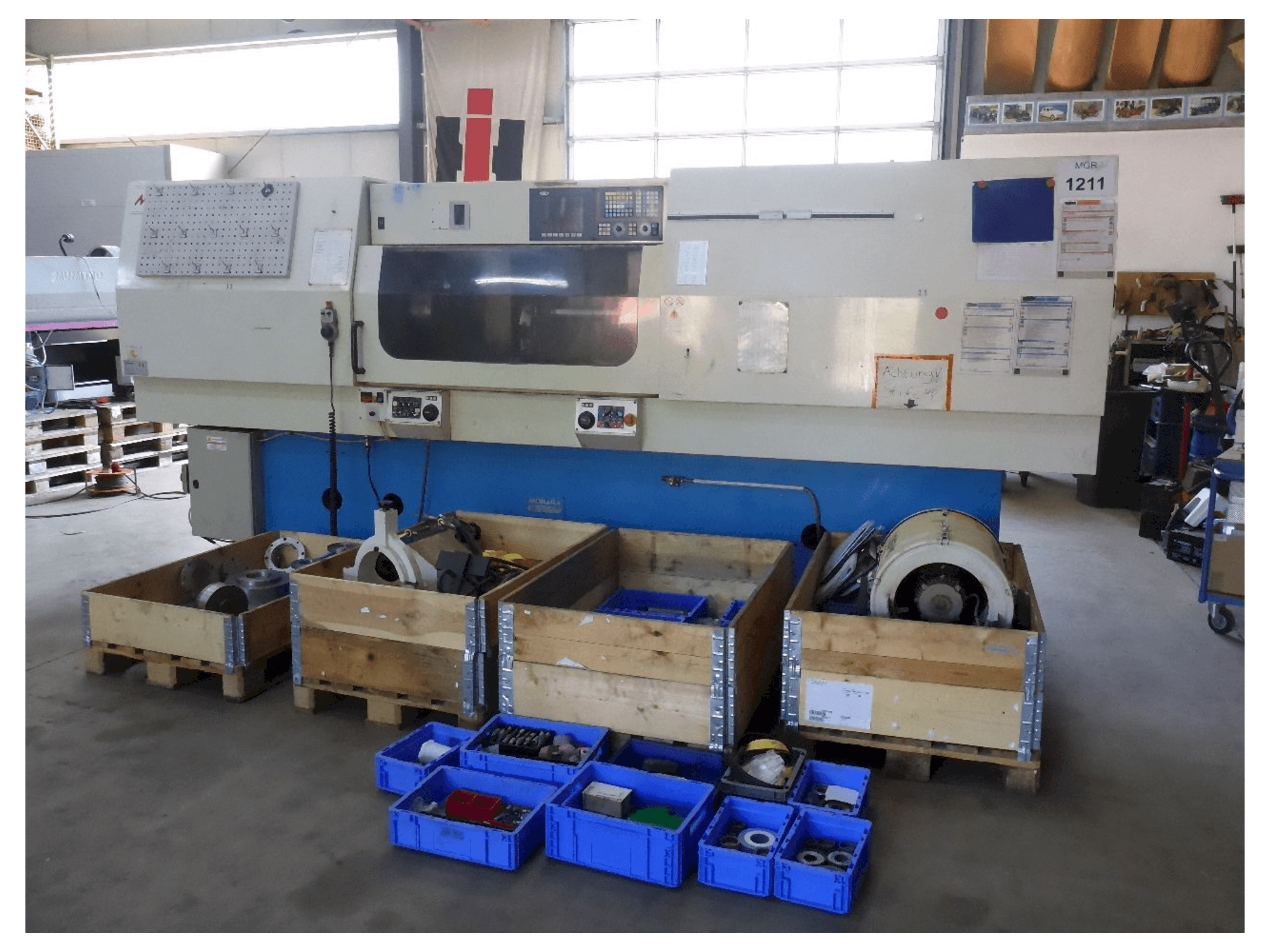

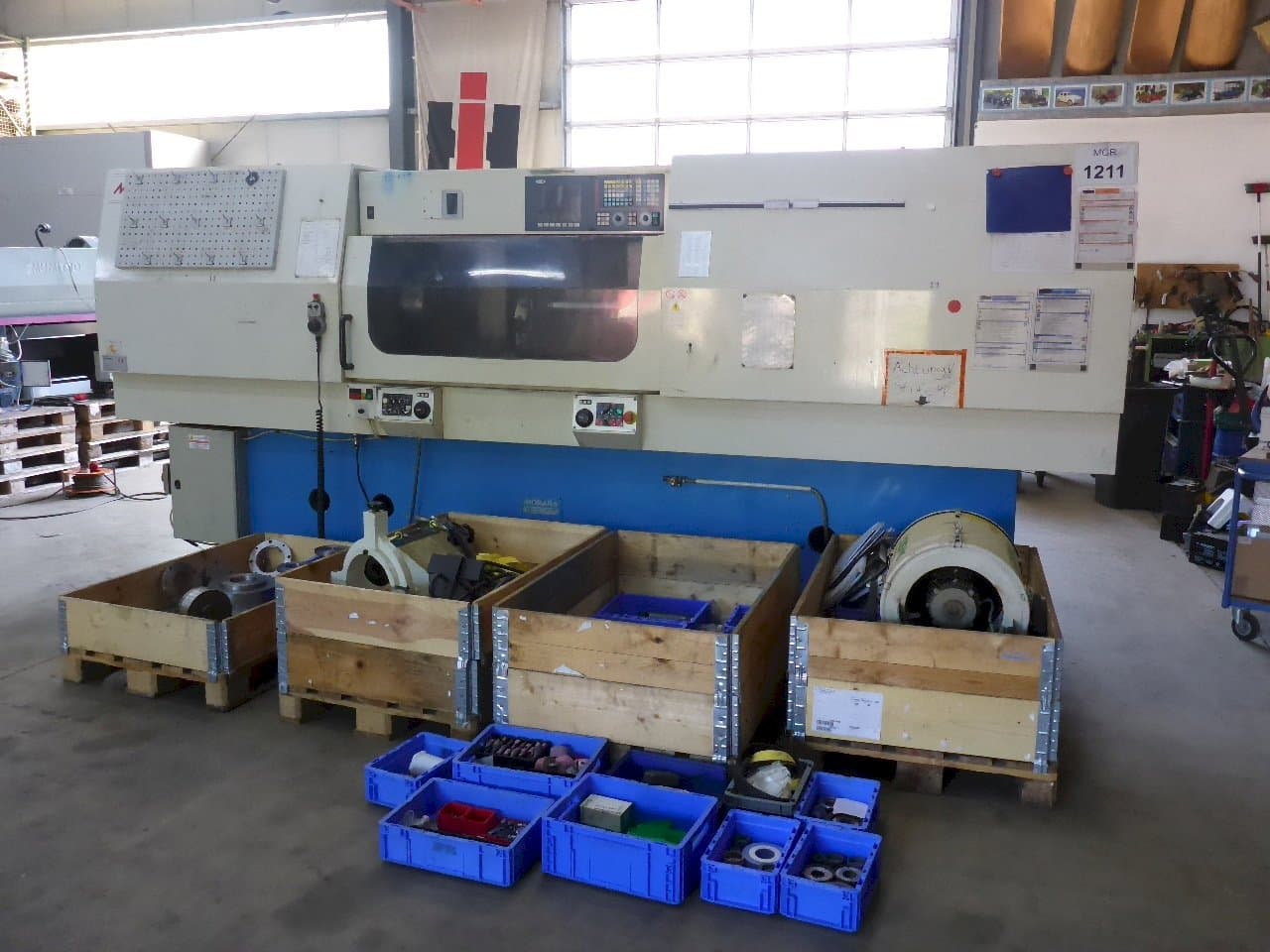

Front view of MORARA Heavy Quick I/E 1000 CNC  machine

MORARA Heavy Quick I/E 1000 CNC

MORARA - Heavy Quick I/E 1000 CNC

2004

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MORARA Heavy Quick I/E 1000 CNC Grinding machine was manufactured in the year 2004 in Italy. It is equipped with a FAGOR 8055 TCO Digital control unit and has 2 axis. The machine has a maximum grinding length of 1000 mm.

Overview

  • brand: MORARA
  • year: 2004
  • MODEL: Heavy Quick I/E 1000 CNC
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding machines
  • availability: Sold
  • control unit brand: FAGOR
  • GINDUMAC ID: DE-GRI-MOR-2004-00001

Technical Information

General Data

  • Measurements width: 6000 mm
  • Measurements depth: 3500 mm
  • Machine weight: 9000 kg

Control Unit

  • Brand: FAGOR
  • Model: 8055 TCO Digital

Main drive

  • Number of axis: 2

Movement

  • X-AXIS Movement: 330 mm
  • Z-AXIS Movement: 1400 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Center distance 1030 mm.
      • - Maximum grinding length 1000 mm
      • - Maximum grindable outer diameter 600 mm.
      • - Maximum grinding inner diameter 400 mm.
      • - Maximum weight between centers 700 kg.
      • - Outer grinding wheel stock: spindle type - on precision ball bearing.
      • - Wheel (diameter, width, bore) 508x80x203. 2mm.
      • - Peripheral speed of the wheel m/s 45.
      • - Power of disk motor kw 7,5.
      • - Orientation - motorized.
    • Qualitative Machine Benefits:
      • - Largest adjustment angle 200 degrees, smallest angle pitch 1. 5 degrees, locking/release - hydraulic, resolution 0. 001 degree.
      • - Internal grinding headstock: spindle type - standard belt drive. Outside diameter of the spindle max 100mm.
      • - Control - digital encoder. Ball screw 40x5mm, control - digital encoder. Ball screw 50x5mm. Upper table adjustment 0 to 4 degrees.
      • - Workpiece headstock: internal taper mk6.
      • - Centering cone outside asa 11. Clearance diameter 30mm.
      • - Rotation on the base 15 degrees.
      • - Spindle torque 180 nm.
      • - Tailstock: mounting taper mk5. Spindle diameter 80mm. Opening stroke 70mm. Cylindrical correction +/- 0. 10mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
