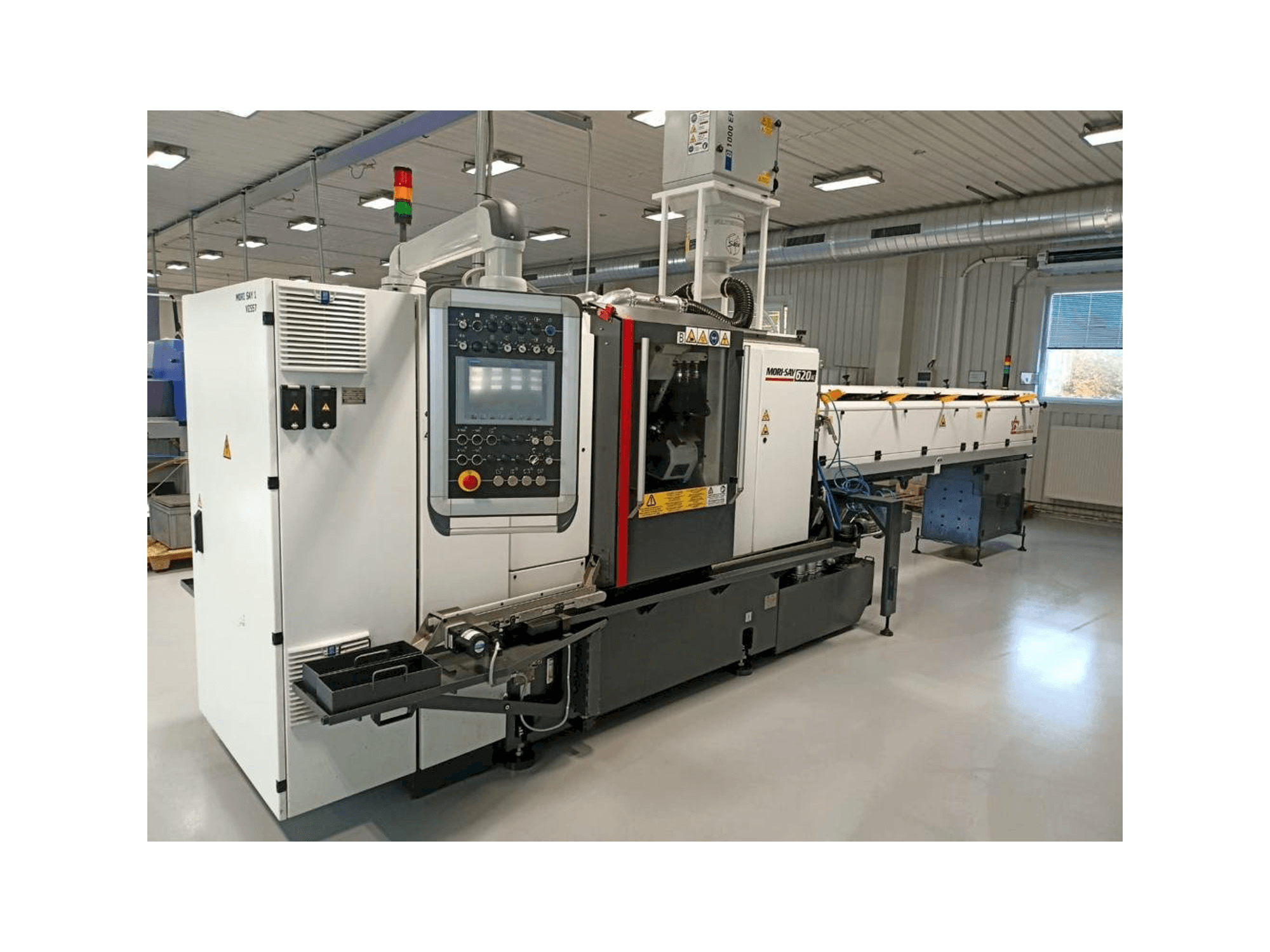

Front view of MORI SAY 620 AC  machine

MORI SAY 620 AC

MORI SAY - 620 AC

2021

500,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MORI-SAY 620 AC Swiss Type Turning machine was manufactured in 2021 in Czech Republic. It is in top condition with only 1996 hours. Equipped with 6 spindles it comes with a spindle speed range of 500-6000 rpm and a maximum length of bar of 3300 mm. See technical benefits below for more technical details.

Overview

  • brand: MORI SAY
  • year: 2021
  • MODEL: 620 AC
  • production hours: 1996
  • application type: Turning
  • Location: Czech Republic
  • machine type: Swiss Type Turning
  • availability: Immediately
  • GINDUMAC ID: CZ-TUR-MOR-2021-00001

Technical Information

Main drive

  • Number of spindles: 6
  • Spindle speed range: 500 - 6000 rpm 1/MIN
  • Spindle motor power: 9 kW

    Additional Equipment

    • - High pressure device 40 bar-55 l/min for cooling oil incl. screw pump KTS32 and filter unit FKA/160
    • - Oil exhauster Filtermist S800
    • - Pneumatic parts-catching attachment station 4 & 6
    • - Automatic bar feeder 6 channel version model AN

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Inner dia of clamping tube Ø 28 mm
        • - Bar stock dimension: round cross section Ø 20 mm // hexagonal cross section 17 mm
        • - Maximum length of bar 3300 mm // maximum length of bar feeding 100 mm
        • - Frontal slides – no. 6 // cross slides – no. 6 // compound slides - no. 4
        • - Compact multi ls-6 pb25, (bar Ø8-22mm), type 3,3 m
        • - Universal threading attachment
        • - 8° ram-type recessing slide img at stations 3+5
        • - Rotating tailstocks
        • - Counterspindle (pick-up)
        • - Removal of the workpiece on the pin
      • Qualitative Machine Benefits:
        • - Machine is in top condition with only 1996 hours!

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
