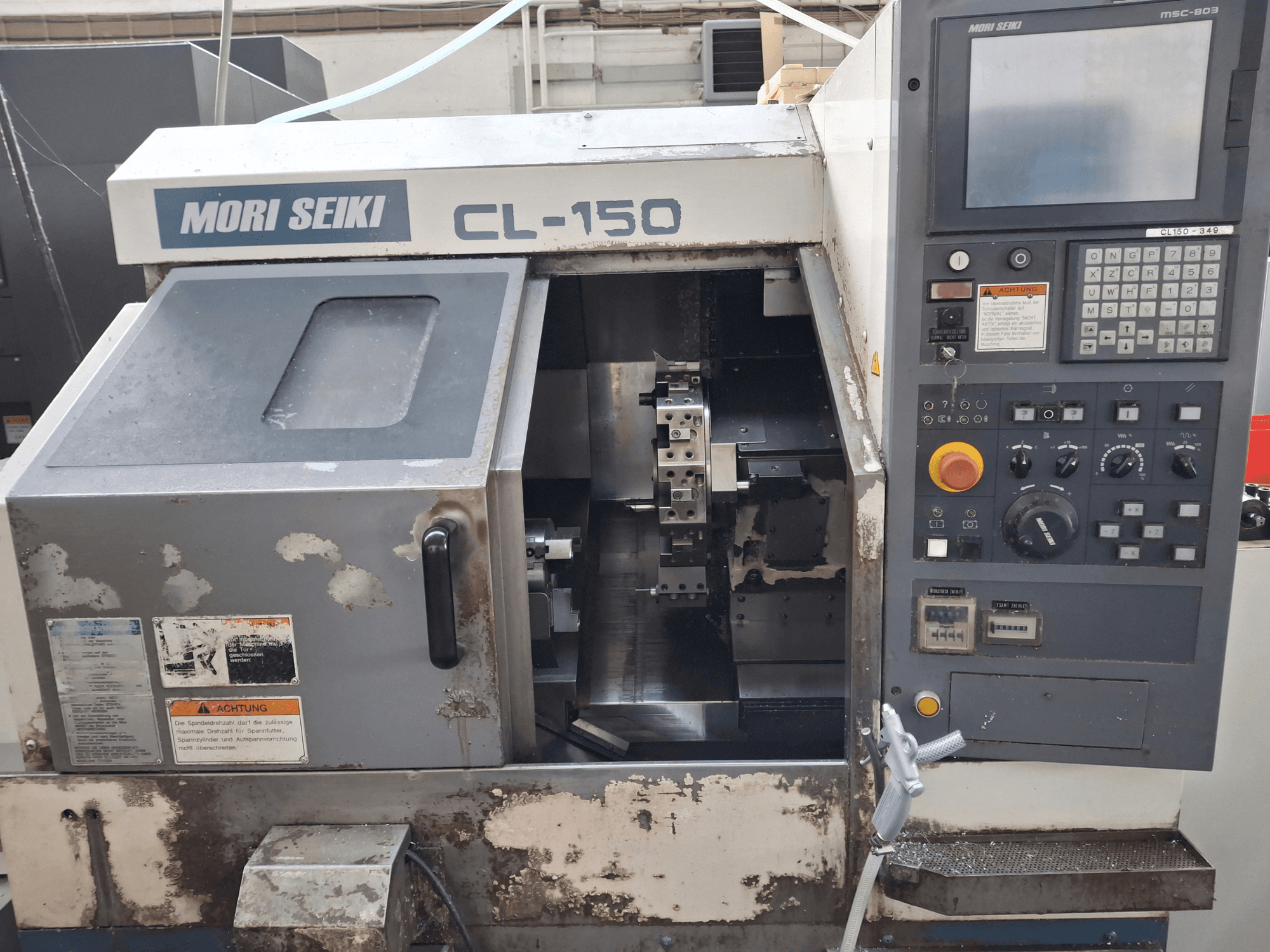

Horizontal turning machine manufactured in 1998. This MORI SEIKI CL 150 features a maximum turning diameter of 400 mm and a maximum turning length of 303 mm. It includes a spindle speed range of 60 - 6000 rpm and a turret with 12 stations for efficient tool management. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 150 machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 1998
- MODEL: CL 150
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: MITSUBISHI
Technical Information - MORI SEIKI CL 150
Control Unit
- Control Brand: MITSUBISHI
- Control Model: MSC-803
Dimensions
- Machine Height: 1700 mm
- Machine Length: 2500 mm
- Machine Weight: 2500 kg
- Machine Width: 1700 mm
Movement
- Number of Axes: 2
- X-axis Travel: 235 mm
- Z-axis Travel: 310 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Max. Bar Diameter: 32 mm
- Spindle Power: 7.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Control Unit Defective: At least data loss or damaged circuit board (unverified diagnosis)
Swing Over Bed: 515 mm
Maximum Turning Diameter: 400 mm
Standard Turning Diameter: 176 mm
Standard Turning Length: 150 mm
Maximum Turning Length: 303 mm
Spindle Centre Height: 950 mm
Spindle Nose: A2-5
Spindle Bore: 43 mm
Spindle Bearing Inner Diameter: 80 mm
Standard Chuck Diameter: 169 mm
Tool Size for External and Facing Tools: 20 x 20 mm
Number of Turrets: 1
Number of Turret Stations: 12
Turret Index Time: 0.7 sec
Turret Clamping Force: 2300 Nm
Index Coupling Diameter: 180 mm
Automatic Tool Selection Logic: Yes
X-Axis Motor Power: 1.5 kW
Z-Axis Motor Power: 2.0 kW
Manual Feed Rate: 0 - 1260 mm/min
Programmable Feed Rate: 0.001 - 500 mm/rev
Rapid Traverse X-Axis: 30 m/min
Rapid Traverse Z-Axis: 30 m/min
Positioning Resolution: 0.001 mm
Coolant Tank Capacity: 123 l
Coolant Pump Capacity: 13 l/min
Lubrication: Automatic Central Lubrication
Power Supply: 380 V / 3 Phase / 50 Hz
Control Voltage: 200 V AC / 24 V DC
Connected Load: 20 kVA
Rated Power: 23 kVA
Full Load Current: 67 A
Spindle Motor Current Rating: 74 A
Interrupting Capacity: 5 kA
Frequency: 50 Hz
Voltage: AC 200 V
Phase: 3
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
