MORI SEIKI - NHX 5000HU-MIL-MOR-2012-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used MORI SEIKI NHX 5000 For Sale | gindumac.com

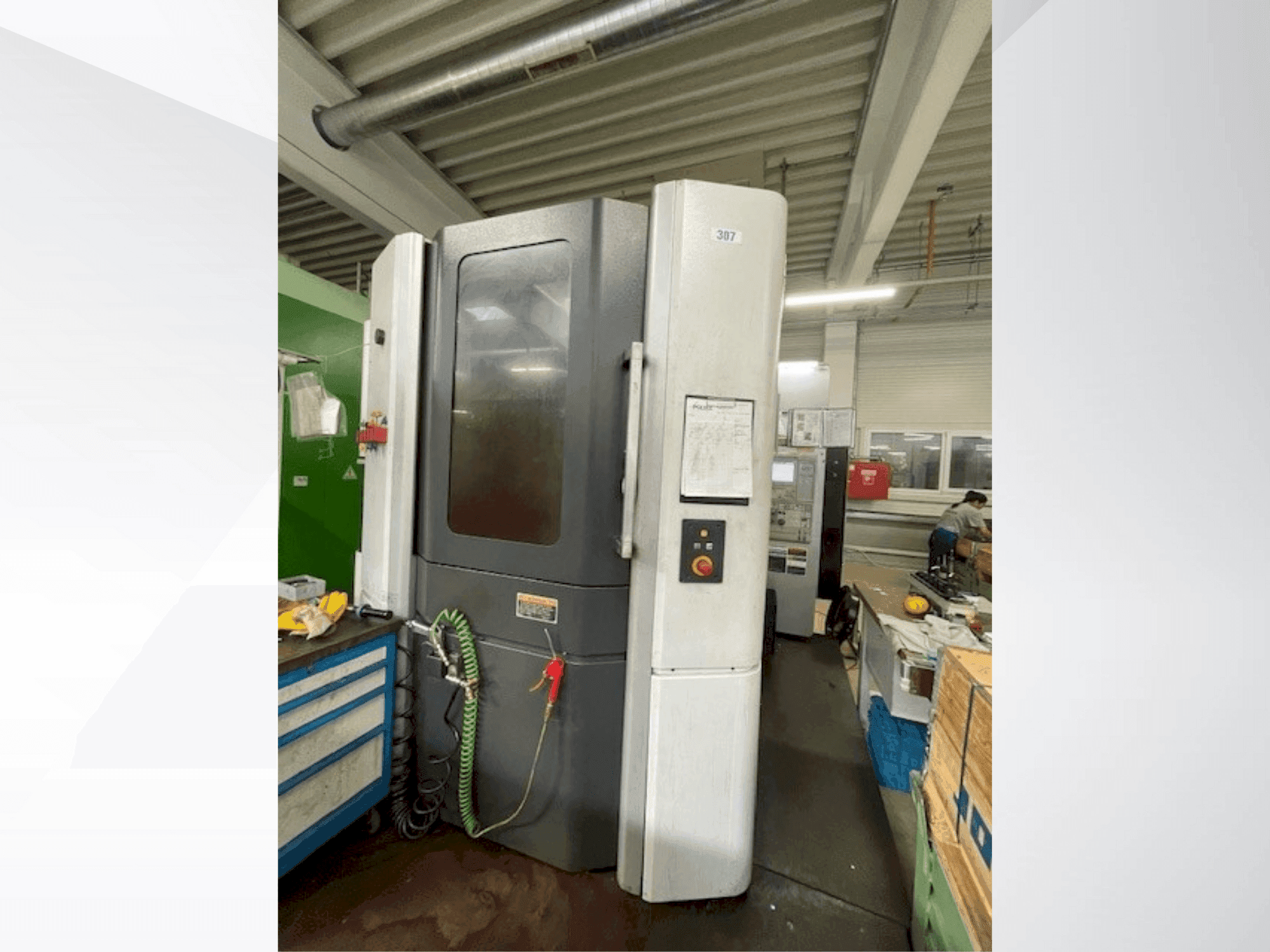

This 4-axis MORI SEIKI NHX 5000 was manufactured in 2012. Ideal for precision machining, this horizontal machining centre ensures reliable performance. Consider the opportunity to buy this MORI SEIKI NHX 5000 horizontal machining centre. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2012
- MODEL: NHX 5000
- application type: Milling
- Location: Hungary
- machine type: Horizontal Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - MORI SEIKI NHX 5000
General Data
- Measurements height: 2803 mm
- Machine weight: 11300 kg
Control Unit
- Brand: SIEMENS
- Model: 840D
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 15 / 11 kW
Movement
- X-AXIS Movement: 730 MM
- Y-AXIS Movement: 730 MM
- Z-AXIS Movement: 880 MM
Additional Equipment
- - Tool Magazine Capacity: 40 pockets (wheel type) / Tool Diameter (Occupied Neighboring Pockets): 70 mm / Tool Diameter (Free Neighboring Pockets): 170 mm
- - Maximum Tool Length: 450 mm / Maximum Tool Weight: 12 kg / Chip-to-Chip Time: min. 3.3 sec / max. 8.2 sec
- - Pallet Change Time: 9.5 sec
- - Footprint (Including Chip Conveyors): approx. 12.5 m²
Additional Information
- Technical Machine Benefits:
- - Torque: 110 / 55 nm
- - Rapid traverse: 60000 mm/min
- - Acceleration: 5. 3 / 5. 3 / 5. 3 m/s²
- - Positioning accuracy: 2. 5 µm
- - Distance from spindle center to pallet: 80 – 810 mm / distance from spindle nose to pallet center: 70 – 950 mm
- - 360° rotary table (indexing time): 1. 6 / 1. 38 sec / pallet size: 500 × 500 mm / max. Pallet load: 500 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
