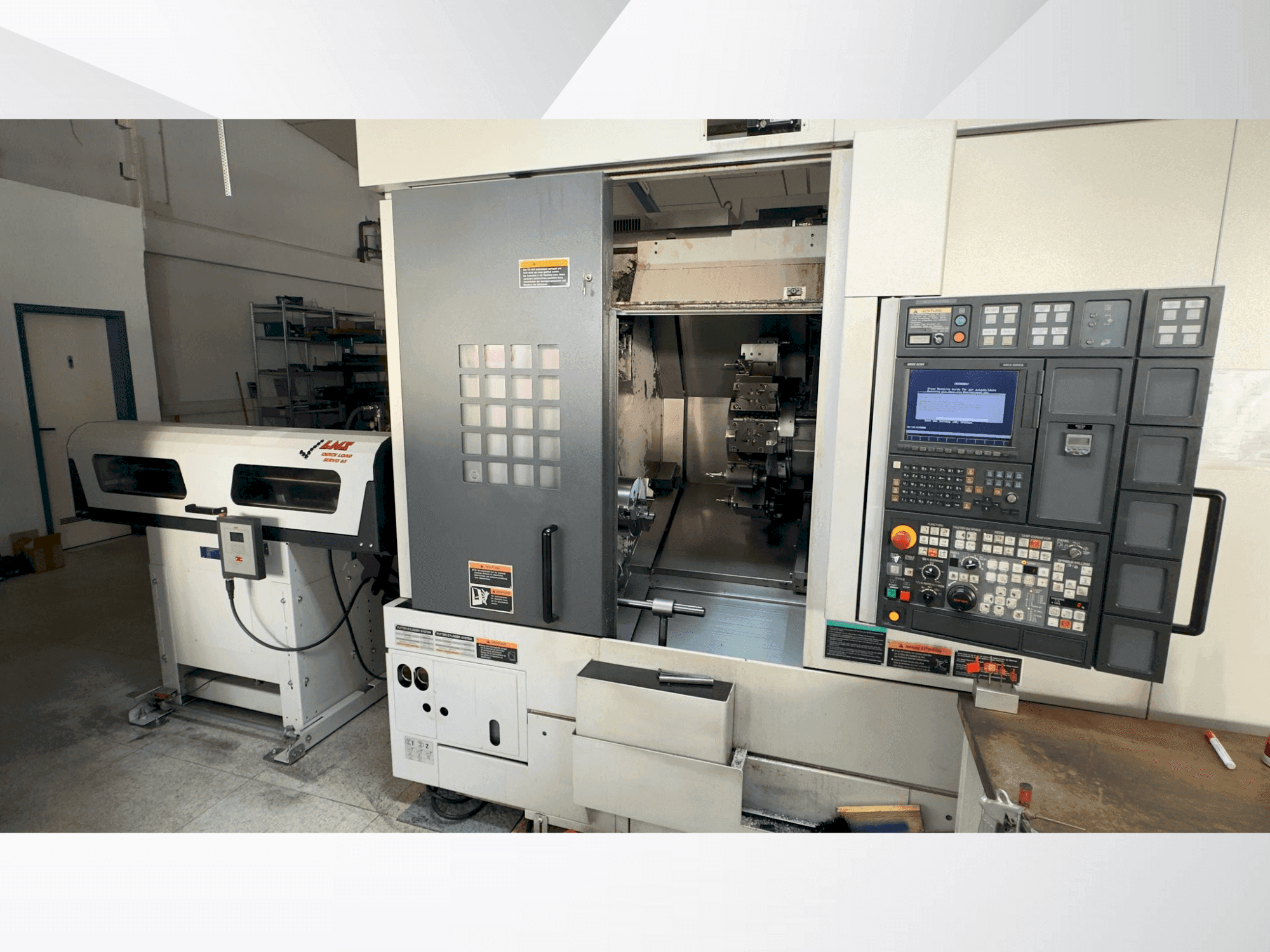

MORI SEIKI - NL 2000 SY /500DE-TUR-MOR-2008-00001

Additional equipment

• Number of tool stations: 12 (10)
• Shank height for square tool: 25 mm
• Boring bar tool shank: Main Spindle: Max 50 mm / Sub-spindle Max: 32 mm
• Turret switching time: 0.25 s
• Max speed of driven tools: 6000 rpm
• Driven Tools and Y-Axis (SY Model): Provides milling and drilling capabilities; allows for off-center milling
• Bar Feeder and Gantry Loader: With 20-Station Magazine / Dust Extraction System: LTA system / Additional Tank: 500 liters / Knoll Pump: 80 Bar Pressure

Machine Benefits

Technical Machine Benefits

• Swing over bed: 9238 mm (5798 mm with front cover) / swing over cross slide: 755 mm / max turning diameter: 356 mm / standard turning diameter: 275 mm / max turning length: 510 mm / max bar capacity: 65 mm
• X/z-axis: 30000 mm/min / y-axis: 10000 mm/min / c-axis: 400 min⁻¹
• Sub-spindle: 11/7. 5 kw / drive motor for driven tools: 5. 5/5. 5/3. 7 kw / feed motor power: x/y/b: 2. 0 kw / z: 3. 5 kw
• High pressure coolant system: 80 bar for improved cutting efficiency and chip removal
• Automation: bar and part handling system for streamlined production efficiency
• Flexibility: sy model allows for complex geometries in turning and milling operations
