MORI SEIKI NL 2500 SMC
MORI SEIKI - NL 2500 SMC
2008
87,000 €
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- MORI SEIKI NL 2500 SMC lathe

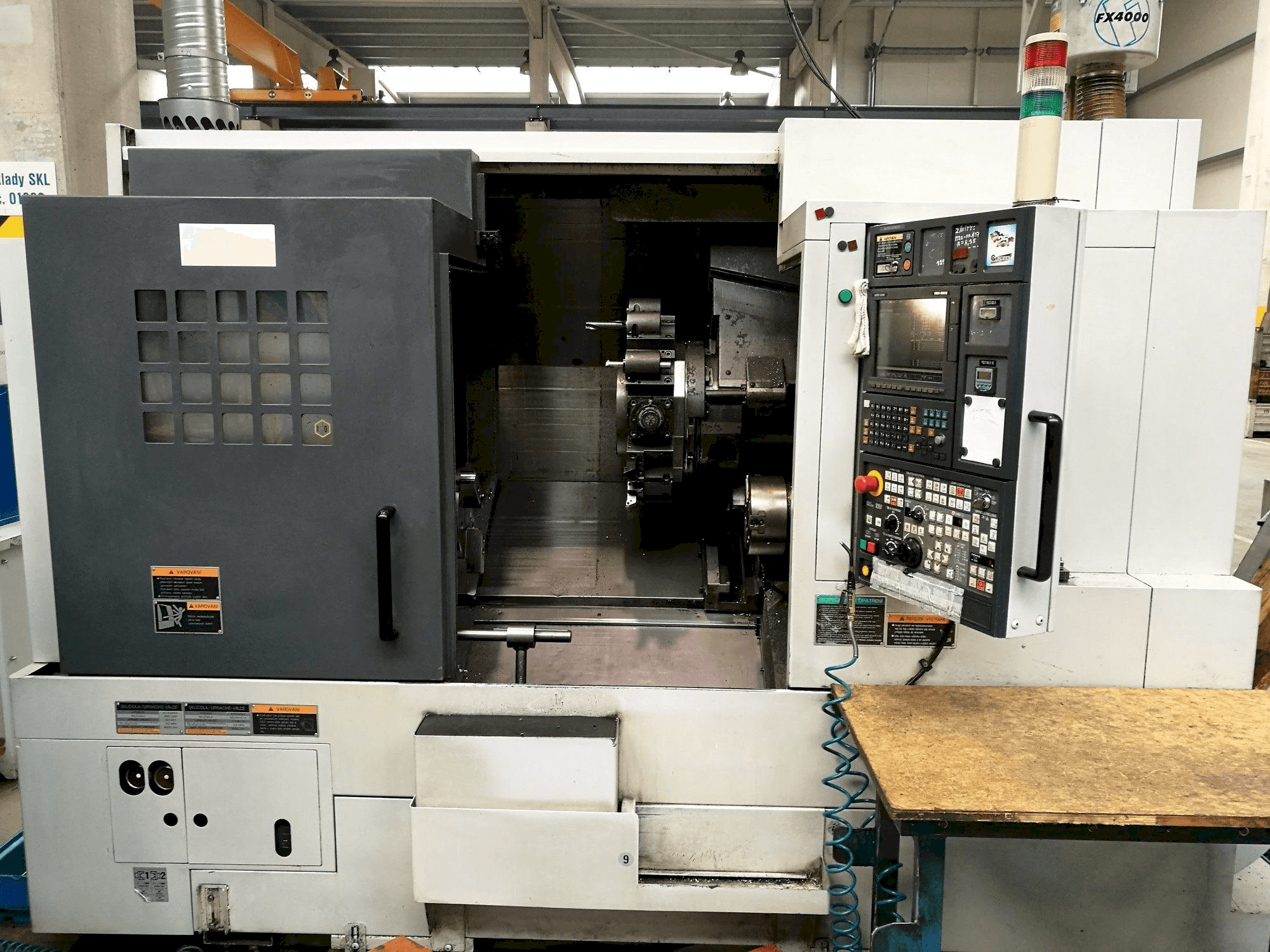

This MORI SEIKI NL 2500 SMC lathe was built in the year 2008. It is equipped with a Mori Seiki MSX-B50 control unit and has 5 axis. The machine has a main spindle speed of 4000 rpm.
Overview
- brand: MORI SEIKI
- year: 2008
- MODEL: NL 2500 SMC
- application type: Turning
- Location: Spain
- machine type: Lathe
- availability: Immediately
- control unit brand: MORI SEIKI
- GINDUMAC ID: ES-TUR-MOR-2008-00001
Technical Information
General Data
- Machine weight: 6000 kg
Control Unit
- Brand: MORI SEIKI
- Model: MSX-B50
Main drive
- Spindle speed range: 4000 1/MIN
- Spindle motor power: 18,5 KW.
- Number of axis: 5
Movement
- X-AXIS Rapid traverse: 30 m/min
- Z-AXIS Rapid traverse: 30 m/min
Additional Equipment
- - Installation interface for bar loader
- - Tool holders equipment included : External single holders, 3 units External double holders, 2 units. Internal single holders, 4 units. Double internal tool holders, 2 units. Motorized radial holders, 2 units. Axial Motorized Door, 1 unit. Frontal Holder, 1 unit. Truncated Holder, 1 unit
Additional Information
- Technical Machine Benefits:
- - Sub-spindle
- - Turret with 12 stations, all of them motorized
- - C-axis on both spindles
- - Ntegrated sub-spindle head motor 11 kw. Motor direct motorized tools 5,5 kw. Motor starting torque 640 n/m.
- - Motors without belts or steps
- - Main spindle size a2-8. Secondary spindle size a2-6
- - Bar pitch 80 mm
- - 250 mm main spindle chuck with metric system. 170 mm sub-spindle chuck with metric system
- - Prismatic guides on all axes
- - Motorized tools speed 6. 000 rpm. Turning diameter 755 mm
- Qualitative Machine Benefits:
- - Machinable diameter 365 mm. Machinable length 755 mm
- - Oil cooler for both daikin spindles
- - Mapps 4 automatic conversational programming system. Automatic stress control and tool consumption monitor
- - Indexing time for turret change 0. 2 seconds. Two arms for automatic measurement of renishaw tools
- - Communication ports via usb, pcmcia card and rs 232
- - Automatic parts collector. Double foot pedal for opening and closing of main and sub-spindle independent
- - Lateral chip extractor hinge type
- - Electrical transformer
- - Documentation, parts list, electrical diagrams, programming and operation manual
- - Machine currently in operation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
